NSN 5935-01-417-3007 WC9A18C244PN065, 01-417-3007, 014173007
Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-01-417-3007 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: WC9A18C244PN065, 5935-01-417-3007, 01-417-3007, 5935014173007, 014173007
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 AUG 1995 | 01-417-3007 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-417-3007
Cross Reference | NSN 5935-01-417-3007
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WC9A18C244PN065 | 53669 | DELPHI CONNECTION SYSTEMS, LLC DIV DELPHI CONNECTION SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-417-3007
Technical Data | NSN 5935-01-417-3007
| Characteristic | Specifications |
|---|---|

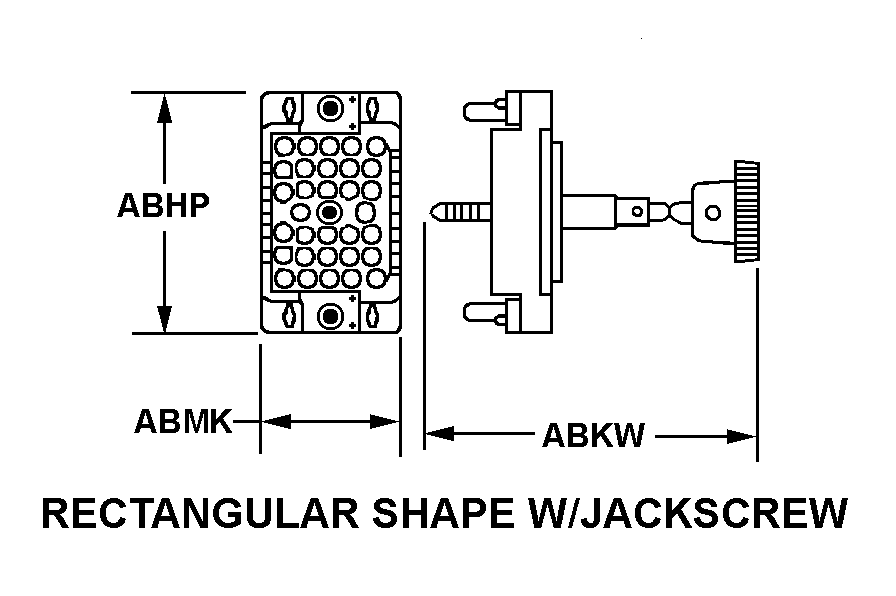

| BODY STYLE | 42A RECTANGULAR SHAPE W/JACKSCREW |
| OVERALL LENGTH | 3.808 INCHES NOMINAL |
| OVERALL HEIGHT | 1.449 INCHES NOMINAL |
| OVERALL WIDTH | 0.902 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| POLARIZATION METHOD | POLARIZATION BOSS |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | JAAA 244 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| SPECIAL FEATURES | O-RING ON JACKSCREW |
Restrictions/Controls & Freight Information | NSN 5935-01-417-3007
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
