NSN 5935-01-512-3368 MS27468T11B2B, MILDTL38999, MIL-DTL-38999
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-01-512-3368 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS27468T11B2B, MILDTL38999, MIL-DTL-38999, 5935-01-512-3368, 01-512-3368, 5935015123368, 015123368
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 AUG 2003 | 01-512-3368 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-512-3368
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-512-3368
Technical Data | NSN 5935-01-512-3368
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 10G STRAIGHT SHAPE EXTERNAL COUPLING |
| OVERALL LENGTH | 1.248 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.375 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.915 INCHES NOMINAL |
| MOUNTING FACILITY THICKNESS | 0.062 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| MATING END QUANTITY | 1 |

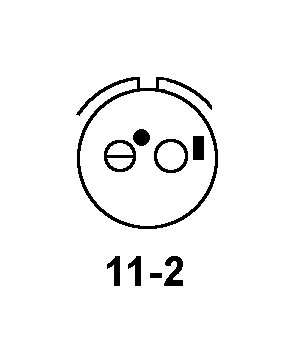

| CONTACT POSITION ARRANGEMENT STYLE | ACFB 11-2 SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 2 ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-38999 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27468T11B2B |
Restrictions/Controls & Freight Information | NSN 5935-01-512-3368
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
