NSN 5935-01-527-7894 845109, 845-10-9, 01-527-7894
Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-01-527-7894 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 845109, 845-10-9, 5935-01-527-7894, 01-527-7894, 5935015277894, 015277894
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 FEB 2005 | 01-527-7894 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |

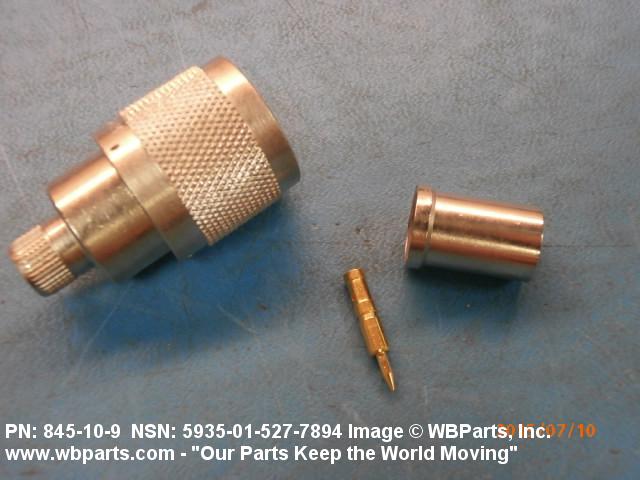

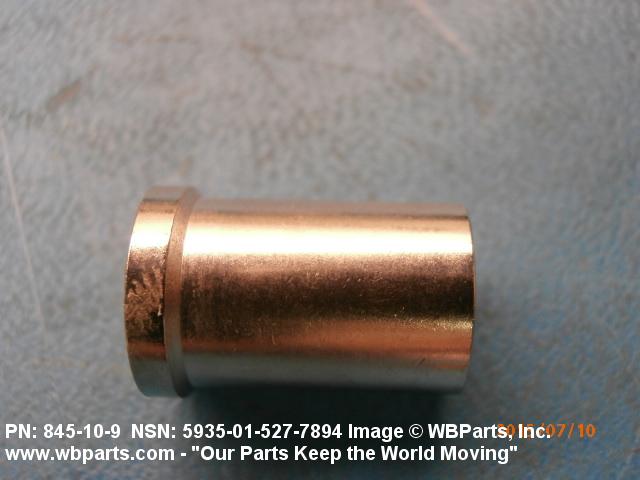

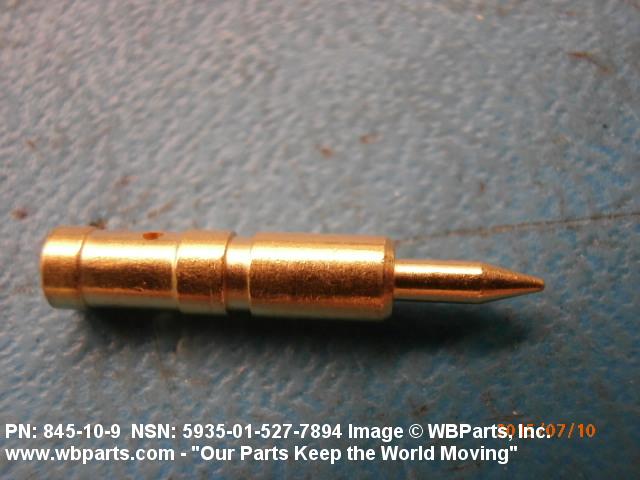

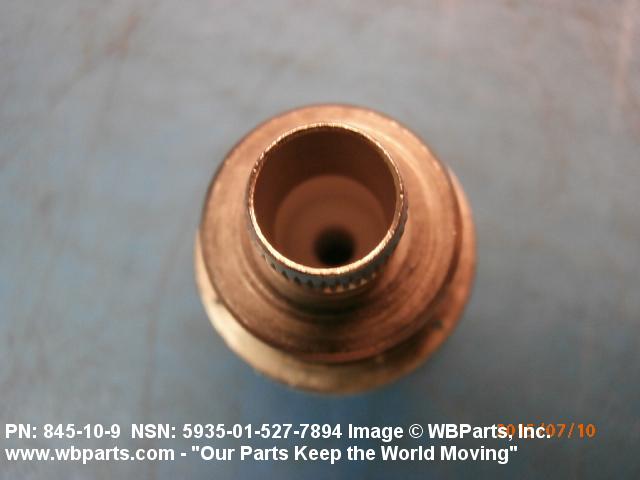

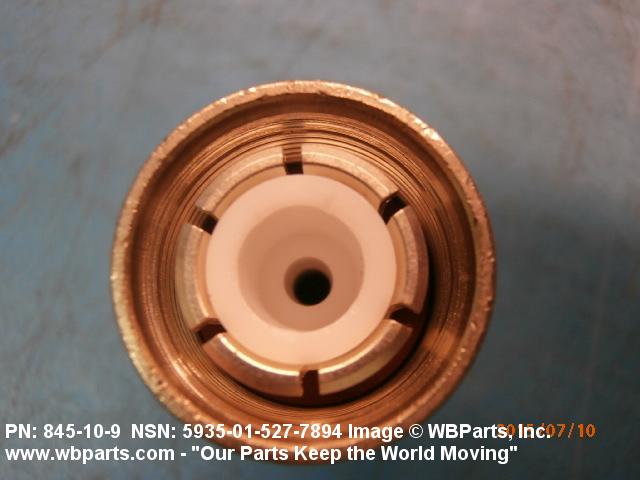

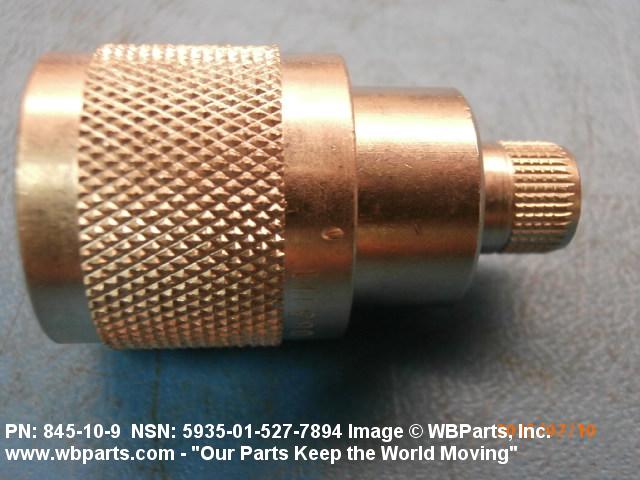

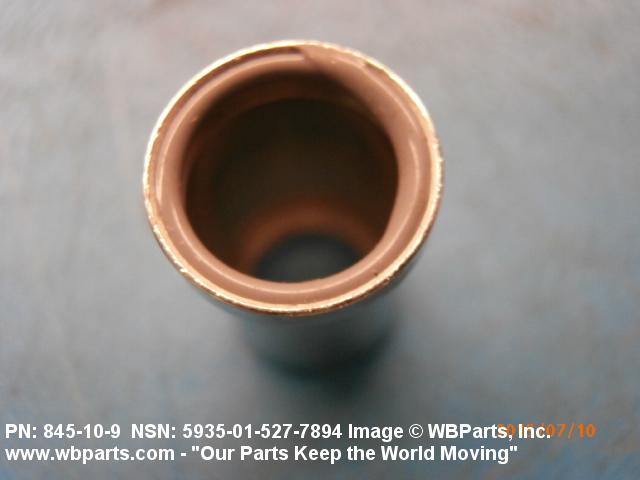

Drawings & Photos | NSN 5935-01-527-7894
Demand History | NSN 5935-01-527-7894
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 845-10-9 | 2025-01-27 | 12 | DIBBS |
| 845-10-9 | 2024-04-109 | 13 | DIBBS |
| 5935-01-527-7894 | 2024-01-12 | 16 | us |
| 845-10-9 | 2023-04-96 | 2 | DIBBS |
| 845-10-9 | 2023-03-85 | 4 | DIBBS |
| 5935-01-527-7894 | 2021-07-211 | 1 | United States |
| 5935-01-527-7894 | 2020-11-308 | 26 | US |
| 5935-01-527-7894 | 2020-10-303 | 26 | US |
| 5935-01-527-7894 | 2020-10-281 | 2 | United States |
| 5935-01-527-7894 | 2020-10-275 | 2 | United States |
| 5935-01-527-7894 | 2015-06-174 | 2 | us |
Cross Reference | NSN 5935-01-527-7894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 845-10-9 | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-527-7894
Technical Data | NSN 5935-01-527-7894
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 9A STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL |

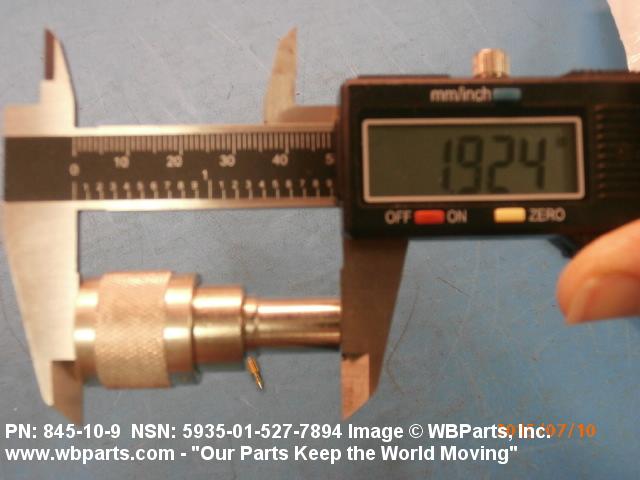

| OVERALL LENGTH | 1.900 INCHES MINIMUM AND 1.960 INCHES MAXIMUM |

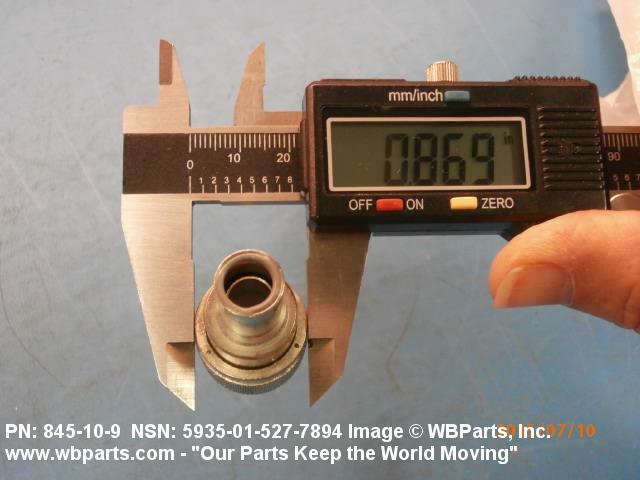

| OVERALL DIAMETER | 0.880 INCHES NOMINAL |
| MATING END QUANTITY | 1 |
| FURNISHED ITEMS | GRIP AND GASKET AND RING |
| SPECIAL FEATURES | K GRIP SLEEVE IS BRONZE; GASKET SILICONE RUBBER; C-RING PHOS BRONZE; INSULATOR TEFLON; OUTER CONTACT BER COP; ALL OTHER METAL PARTS ARE BRASS; FREQUENCY RANGE DC TO 4 GHZ; WORKING VOLTAGE 1500 VRMS |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CENTER CONTACT GOLD AND OUTER CONTACT SILVER |
| III END ITEM IDENTIFICATION | C130J FIXED WING AIRCRAFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PLUG HN |
Restrictions/Controls & Freight Information | NSN 5935-01-527-7894
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | C | Item contains two or more precious metals |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
