NSN 5935-01-534-2055 HBL2323SW, 01-534-2055, 015342055
Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-01-534-2055 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: HBL2323SW, 5935-01-534-2055, 01-534-2055, 5935015342055, 015342055
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 OCT 2005 | 01-534-2055 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-534-2055
Cross Reference | NSN 5935-01-534-2055
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HBL2323SW | 74545 | HUBBELL INC WIRING DEVICE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-534-2055
Technical Data | NSN 5935-01-534-2055
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 5C STRAIGHT SHAPE W/O CLAMP |
| OVERALL HEIGHT | 4.380 INCHES NOMINAL |
| OVERALL DIAMETER | 2.560 INCHES NOMINAL |
| COLOR | BLACK AND WHITE |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | PLASTIC |
| MATING END QUANTITY | 1 |

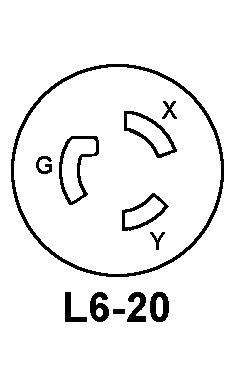

| CONTACT POSITION ARRANGEMENT STYLE | ADLA L6-20 SINGLE MATING END |
| SPECIAL FEATURES | 20A; 250 VAC; TWIST LOCK WATERTIGHT SHROUD CONNECTOR BODY |
Restrictions/Controls & Freight Information | NSN 5935-01-534-2055
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
