NSN 5935-01-553-1395 NP3RC, 01-553-1395, 015531395
Product Details | TELEPHONE PLUG
5935-01-553-1395 A concentric type electrical fitting consisting of two or more conductors on a common shank. The contacts on two or three conductor plugs are termed sleeve, tip, or ring. It includes multiple shank plugs of this type. Excludes PLUG, TIP.
Part Alternates: NP3RC, 5935-01-553-1395, 01-553-1395, 5935015531395, 015531395
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 JUL 2007 | 01-553-1395 | 00178 ( PLUG, TELEPHONE ) |
Drawings & Photos | NSN 5935-01-553-1395
Cross Reference | NSN 5935-01-553-1395
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NP3RC | 0FMA6 | NEUTRIK USA INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-553-1395
Technical Data | NSN 5935-01-553-1395
| Characteristic | Specifications |
|---|---|
| FINGER TYPE | THREE CONDUCTOR, CONE TIP SINGLE FINGER |

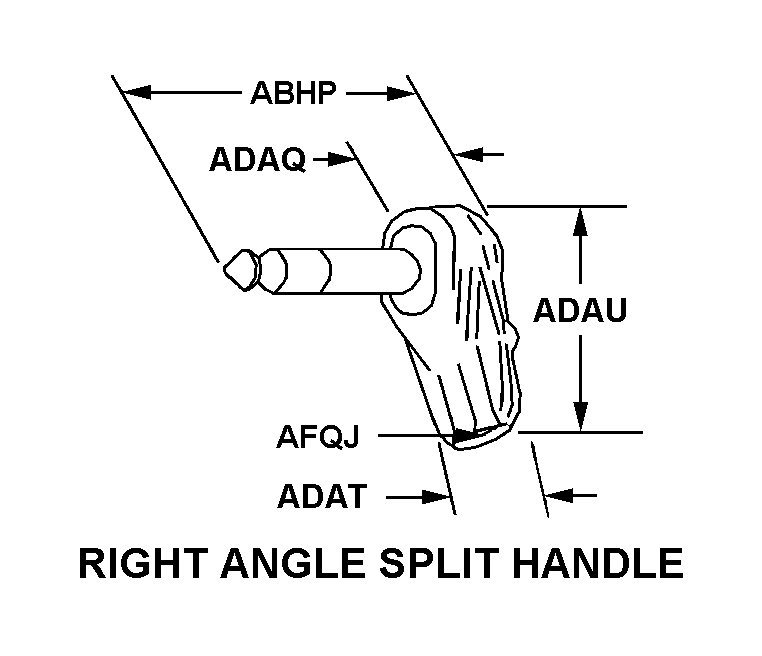

| BODY STYLE | 3 RIGHT ANGLE SPLIT HANDLE |
| SPECIAL FEATURES | PROFESSIONAL PHONE PLUG,ALL METAL,NO RIVETS,SUPER-SLIM SHAPE,3-POLE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | MALE TRS STEREO RIGHT ANGLE 1/4 INCH CONNECTOR |
Restrictions/Controls & Freight Information | NSN 5935-01-553-1395
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
