NSN 5935-01-562-7214 FS913, FS9-13, 01-562-7214
Product Details | ELECTRICAL CONNECTOR RETAINING PLATE
5935-01-562-7214 A flat metallic item varied in shape with an opening(s) to accommodate an electrical connector(s). It must have facilities for mounting. Used to position an electrical connector. See also PLATE, MOUNTING (as modified). Excludes PLATE, WALL, ELECTRICAL and ESCUTCHEON PLATE.
Part Alternates: FS913, FS9-13, 5935-01-562-7214, 01-562-7214, 5935015627214, 015627214
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 APR 2008 | 01-562-7214 | 21538 ( PLATE, RETAINING, ELECTRICAL CONNECTOR ) |

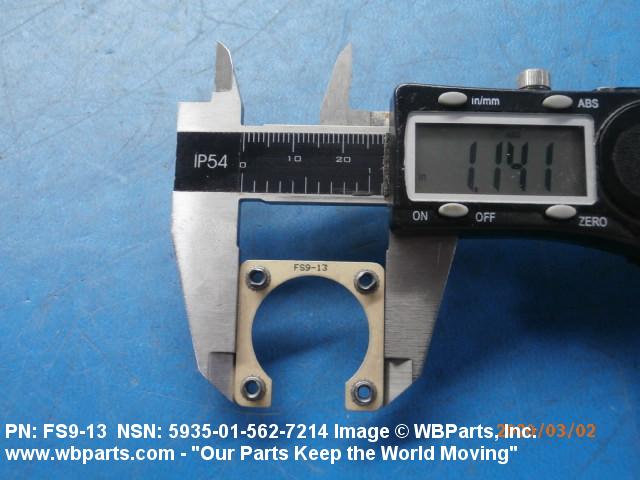

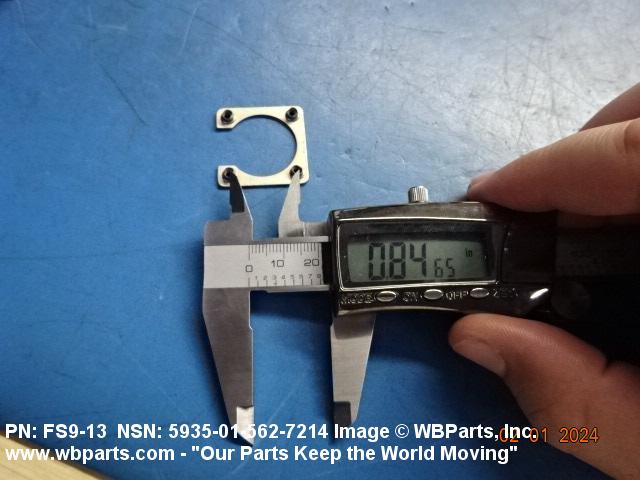

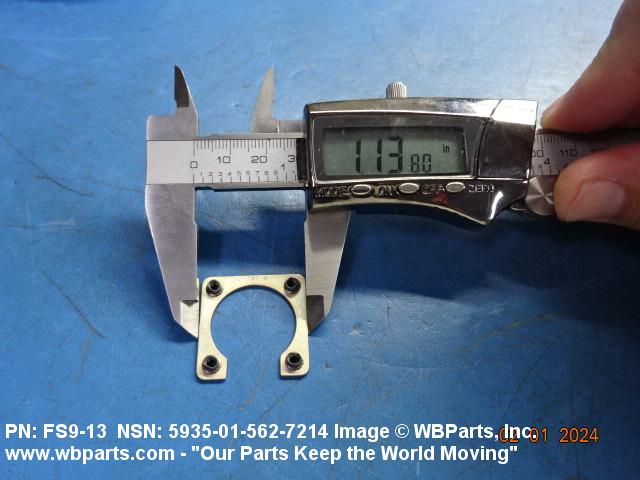

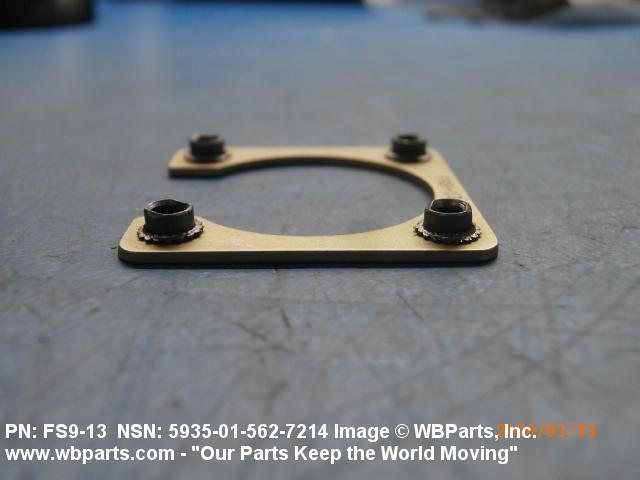

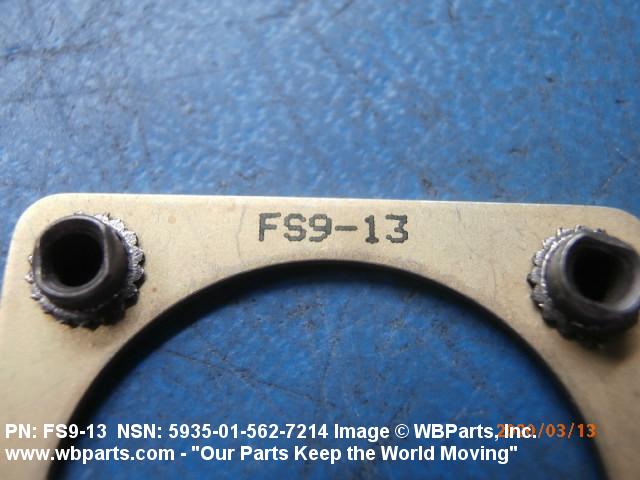

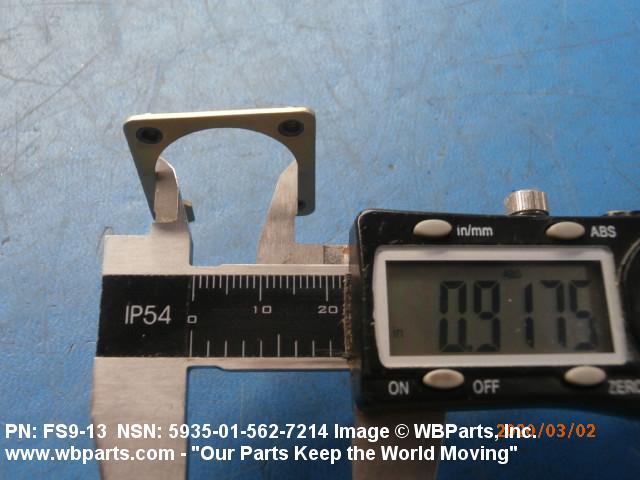

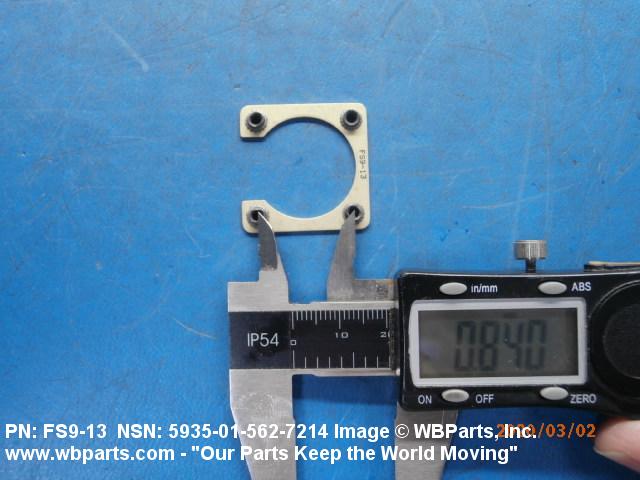

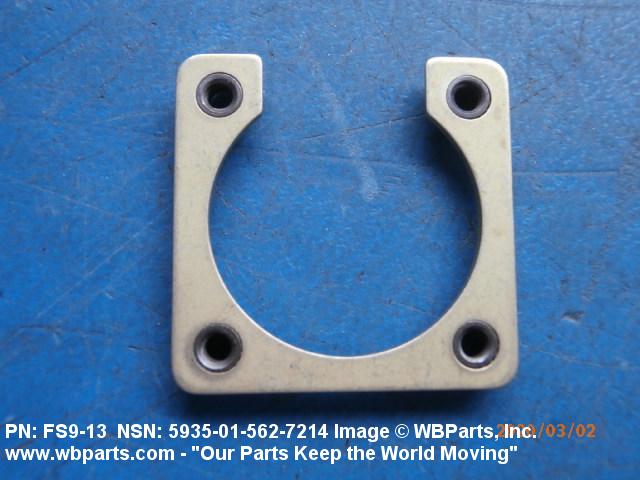

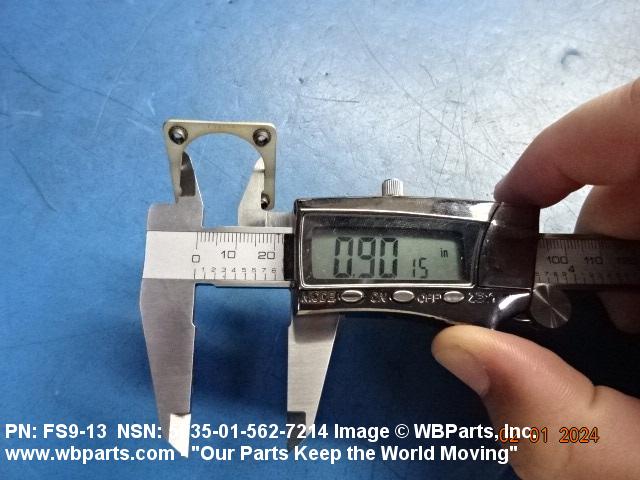

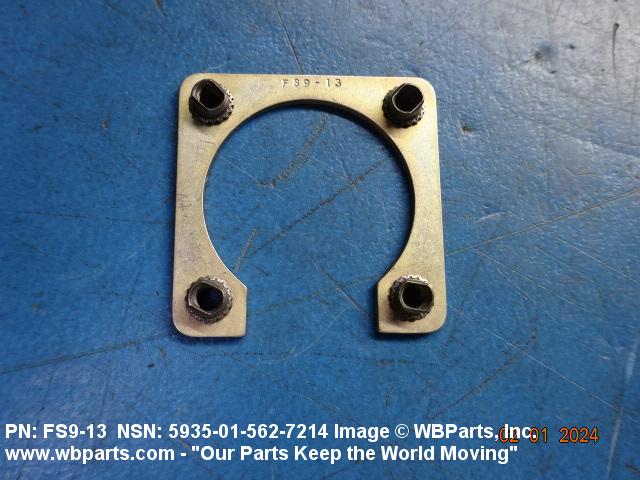

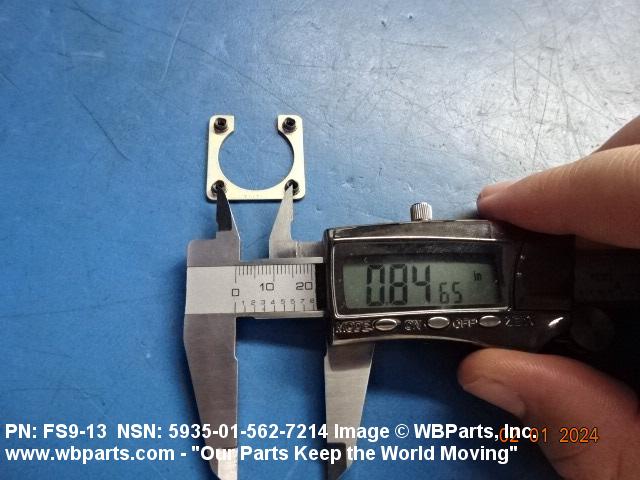

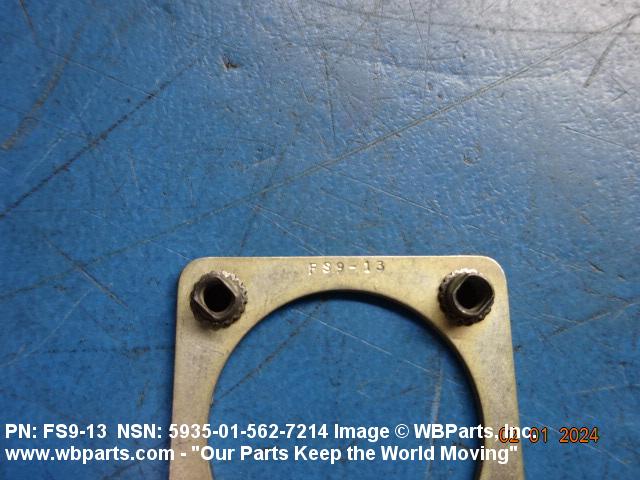

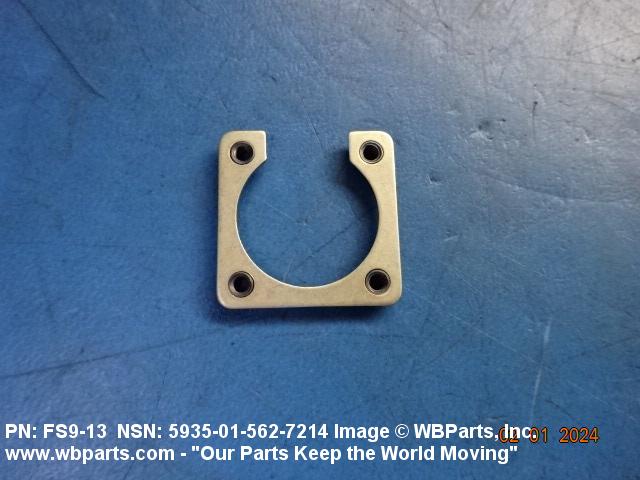

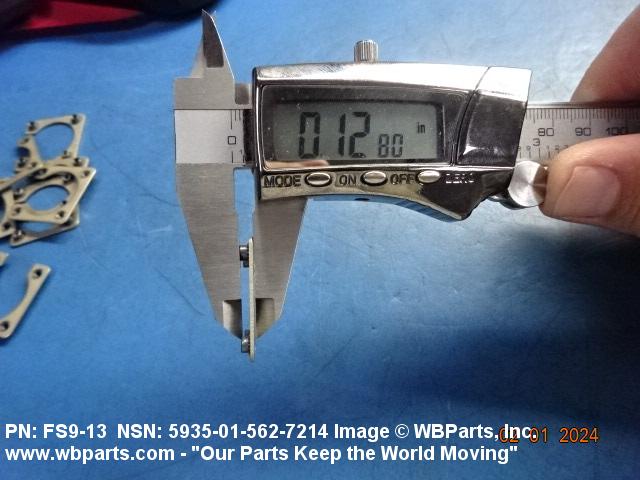

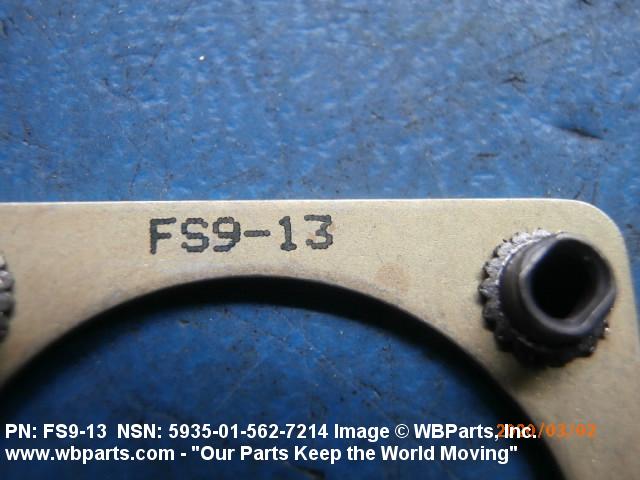

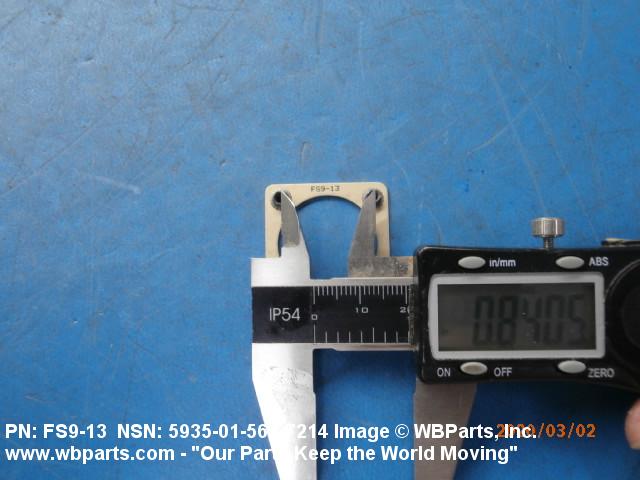

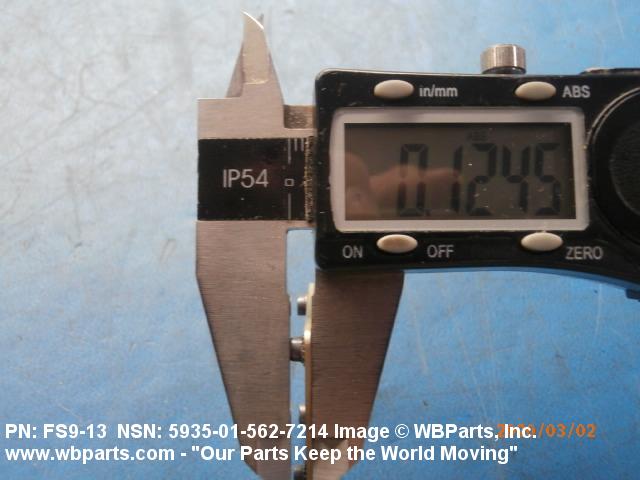

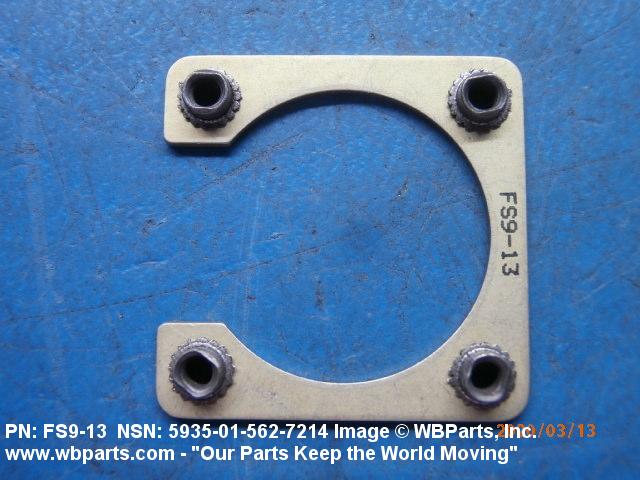

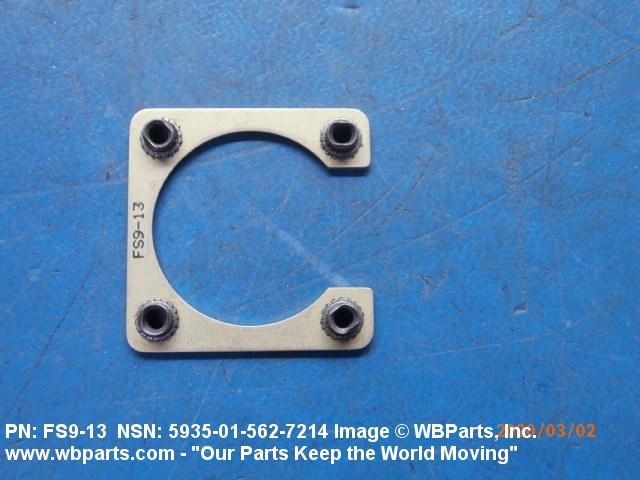

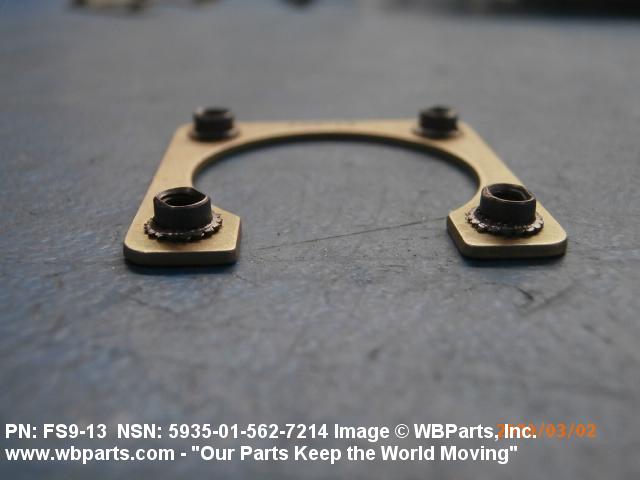

Drawings & Photos | NSN 5935-01-562-7214
Demand History | NSN 5935-01-562-7214
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-562-7214 | 2025-12-350 | 104 | US |
| 5935-01-562-7214 | 2025-12-345 | 104 | US |
| 5935-01-562-7214 | 2024-01-22 | 10 | United States |
| 5935-01-562-7214 | 2022-12-341 | 10 | United States |
| FS9-13 | 2022-04-109 | 70 | DIBBS |
| 5935-01-562-7214 | 2022-04-101 | 70 | United States |
| 5935-01-562-7214 | 2020-02-49 | 10 | United States |
| 5935-01-562-7214 | 2020-01-14 | 50 | United States |
Cross Reference | NSN 5935-01-562-7214
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FS9-13 | 04967 | FASTENER SPECIALTY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-562-7214
Related Products | NSN 5935-01-562-7214
Technical Data | NSN 5935-01-562-7214
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 10J SQUARE SHAPE |
| OVERALL LENGTH | 0.840 INCHES MINIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.840 INCHES MINIMUM AND 0.846 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.840 INCHES MINIMUM AND 0.846 INCHES MAXIMUM |
| OVERALL WIDTH | 0.106 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ALODINE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 NUT |
| CABLE OPENING DIAMETER | 0.980 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| SPECIAL FEATURES | NUT SELF-LOCKING- STEEL, CADMIUM PLATED FOLLOWED BY A SOLID DRY LUBRICANT; NUTS MEET PERFORMANCE REQUIREMENTS OF MIL-N-25027 SPECIFICATION; OPTIONAL CORROSION RESISTING STEEL NUTS, CADMIUM PLATED PLUS DRY FILM LUBRICANT COATING ARE AVAILABLE |
| III END ITEM IDENTIFICATION | AN/BLQ-10A (V) 2 FY04 |
| III SUPPLEMENTARY FEATURES | WHEN ORDERING ADD 01 TO PART NUMBER EXAMPLE FS9-1301 FOR STEEL NUTS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PLATE RETAINING ELECTRICAL; FS9 SERIES |
Restrictions/Controls & Freight Information | NSN 5935-01-562-7214
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-562-7214
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
