NSN 5935-01-642-9806 1363000K0502, 1363-000-K050-2 , 7010667
Product Details | RECEPTACLE DUMMY CONNECTOR
5935-01-642-9806 An item specifically designed to mate with a plug connector to perform one or more special functions, such as to support a plug connector when not in use, short contacts, or open or close electrical circuits, in or on another connector. It does not have provisions for attaching a wire, cable, or contact. It is designed to mount on a panel, bulkhead, wall, or chassis. It does not include connector shells which are merely used to position a plug connector on a panel.
Part Alternates: 1363000K0502, 1363-000-K050-2 , 7010667 , 5935-01-642-9806, 01-642-9806, 5935016429806, 016429806
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 2015075 | 01-642-9806 | 15092 ( DUMMY CONNECTOR, RECEPTACLE ) |

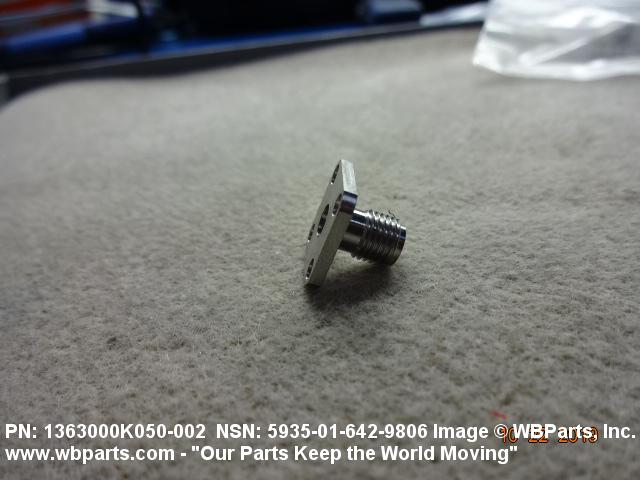

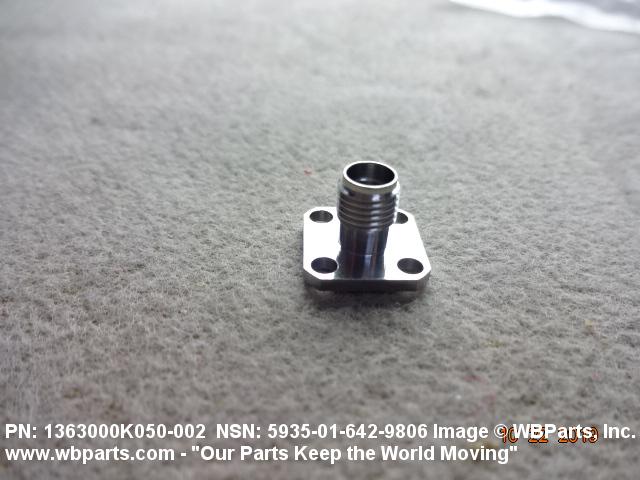

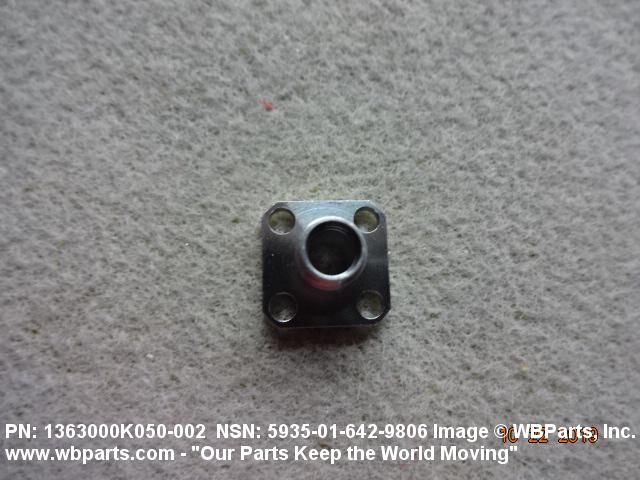

Drawings & Photos | NSN 5935-01-642-9806
Demand History | NSN 5935-01-642-9806
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-642-9806 | 2019-10-280 | 3 | United States |
| 1363000K050-002 | 2019-09-269 | 170 | DIBBS |
| 5935-01-642-9806 | 2018-11-312 | 72 | DIBBS |
| 5935-01-642-9806 | 2017-05-135 | 59 | DIBBS |
| 5935-01-642-9806 | 2017-05-124 | 59 | DIBBS |
| 5935-01-642-9806 | 2016-09-273 | 63 | DIBBS |
| 5935-01-642-9806 | 2016-09-262 | 63 | DIBBS |
| 5935-01-642-9806 | 2016-08-230 | 10 | DIBBS |
| 5935-01-642-9806 | 2016-08-214 | 5 | DIBBS |
| 5935-01-642-9806 | 2016-07-203 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-642-9806
Technical Data | NSN 5935-01-642-9806
| Characteristic | Specifications |
|---|---|

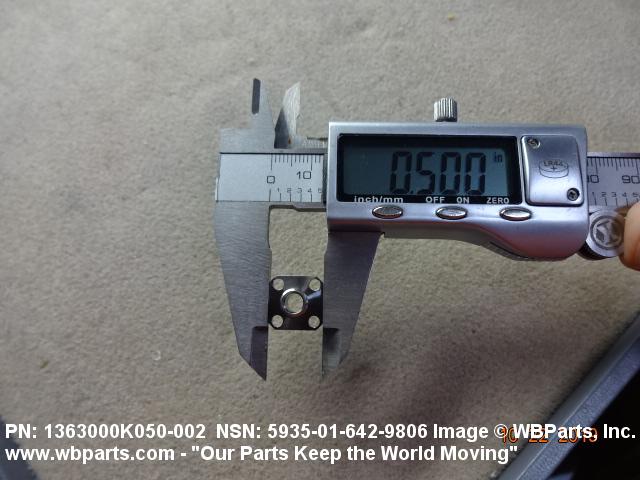

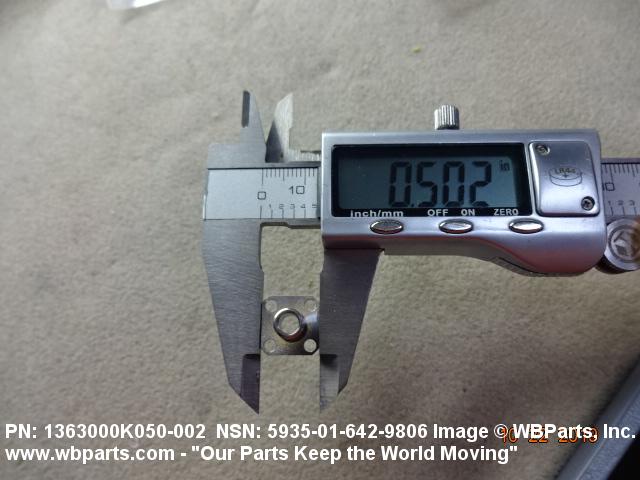

| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |

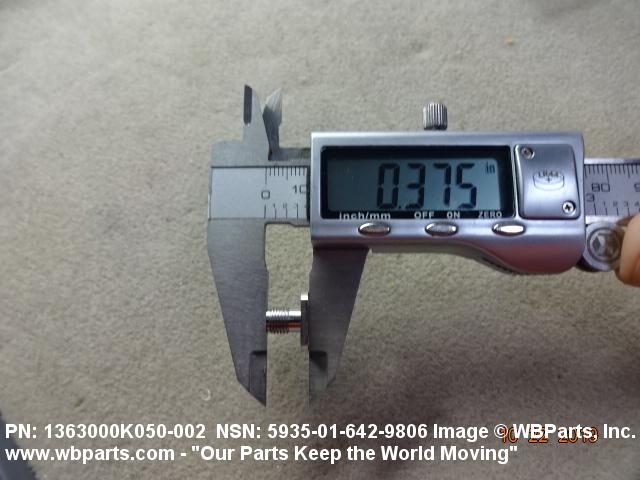

| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL: STEEL, CRES, ALLOY OPTIONAL |
| III END ITEM IDENTIFICATION | 2350-014587318 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | RECEPTACLE SMA |
Restrictions/Controls & Freight Information | NSN 5935-01-642-9806
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-642-9806
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
