NSN 5940-00-284-4978 9S4427LALT10, 00-284-4978, 002844978
Product Details | TERMINAL BOX
5940-00-284-4978 An enclosure which includes, mounts and protects one or more terminals and/or terminal boards. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, and conduit fittings. For boxes which include combinations of different electrical devices such as terminals and/or terminal boards, fuseholders, switches, jacks, circuit breakers, connectors and the like, see DISTRIBUTION BOX. For boxes which are designed to mount, but which do not include terminals and/or terminal boards, see JUNCTION BOX. Excludes TERMINAL BOARD ASSEMBLY. See also CHAMBER, CABLE TERMINAL; and INTERCONNECTING CABINET.
Part Alternates: 9S4427LALT10, 5940-00-284-4978, 00-284-4978, 5940002844978, 002844978
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-284-4978 | 00452 ( TERMINAL BOX ) |
Drawings & Photos | NSN 5940-00-284-4978
Demand History | NSN 5940-00-284-4978
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-284-4978 | 2010-07-202 | 2 | UM |
Cross Reference | NSN 5940-00-284-4978
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9S4427LALT10 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-284-4978
Technical Data | NSN 5940-00-284-4978
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 5A RECTANGULAR, FLUSH MOUNTING |
| OVERALL DEPTH | 3.500 INCHES NOMINAL |
| OVERALL HEIGHT | 16.625 INCHES NOMINAL |
| OVERALL WIDTH | 9.500 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | ENAMEL |
| ENTRANCE TYPE AND QUANTITY | ANY ACCEPTABLE |
| MOUNTING METHOD | UNTHREADED HOLE |

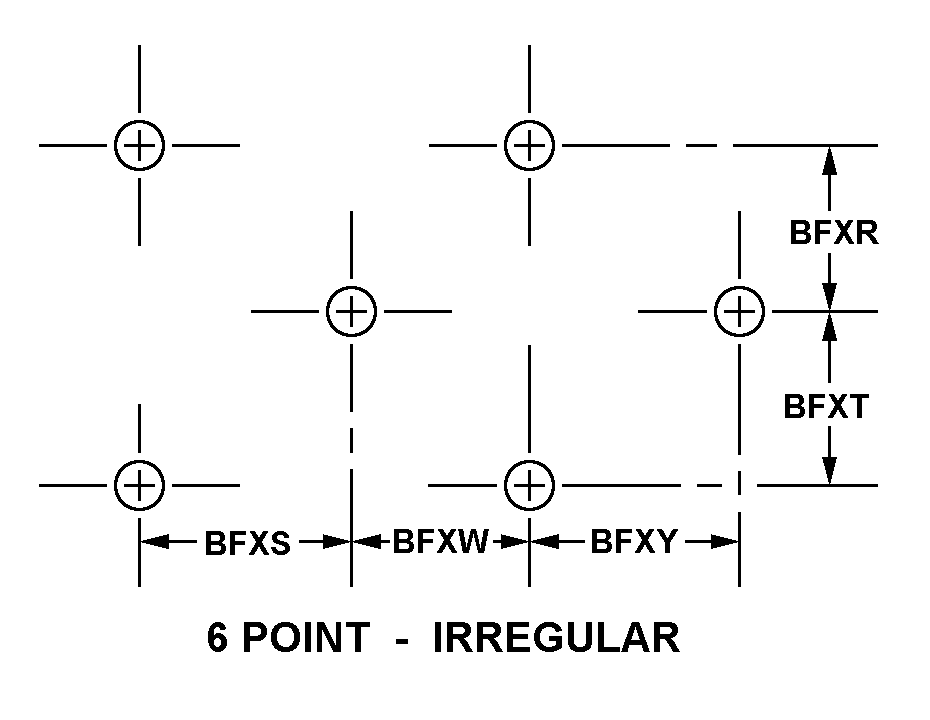

| STANDARD MOUNTING PATTERN DESIGNATOR | 9C 6 POINT-IRREGULAR |
| TERMINAL TYPE AND QUANTITY | 80 SCREW |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | GENERAL PURPOSE-NEMA TYPE 1 |
| FEATURES PROVIDED | COVER |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY MATERAL REQUIREMENT |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 9S4427LALT10 |
Restrictions/Controls & Freight Information | NSN 5940-00-284-4978
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061260 | CABLE TERMINALS/BOXES/HOUSINGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
