NSN 5945-00-988-2729 MS25321D2, MS25321-D2, MILPRF6106
Product Details | ELECTROMAGNETIC RELAY
5945-00-988-2729 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: MS25321D2, MS25321-D2, MILPRF6106, MIL-PRF-6106, MILR6106, MIL-R-6106, 41706008, 4170600-8, 607F490N13, 5945-00-988-2729, 00-988-2729, 5945009882729, 009882729
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-988-2729 | 32512 ( RELAY, ELECTROMAGNETIC ) |

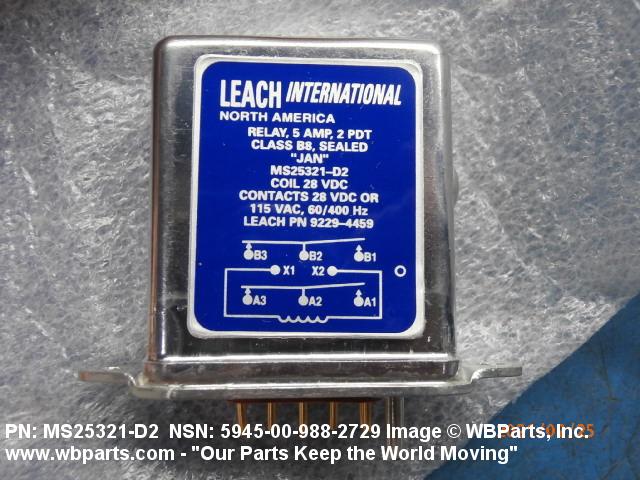

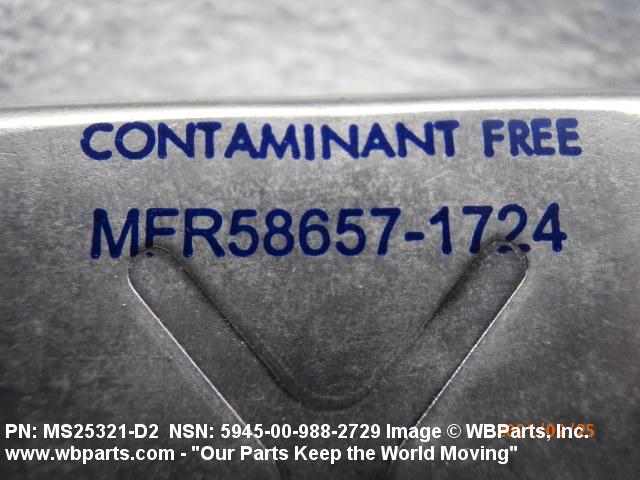

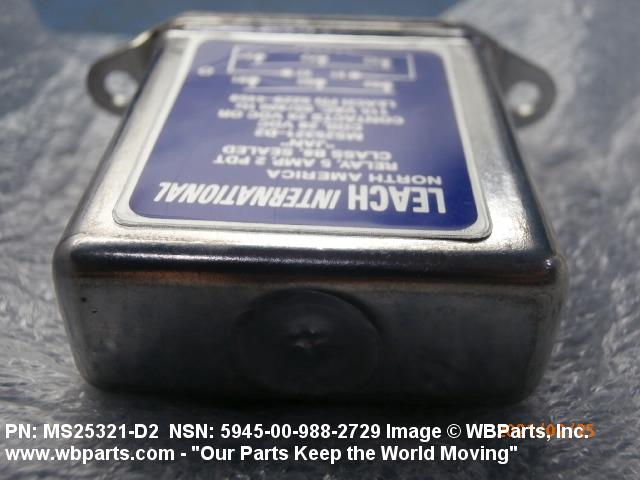

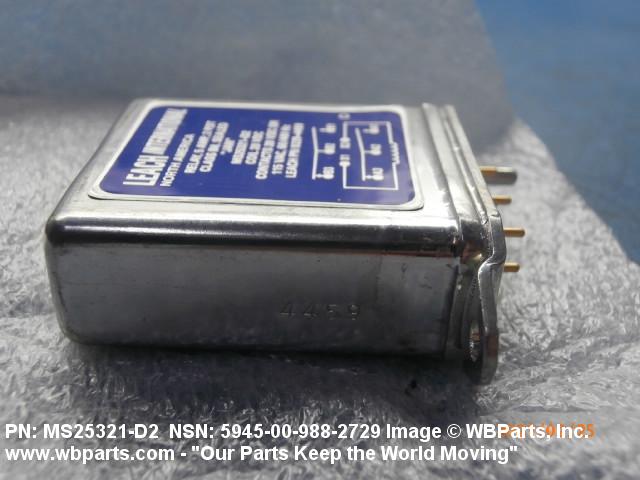

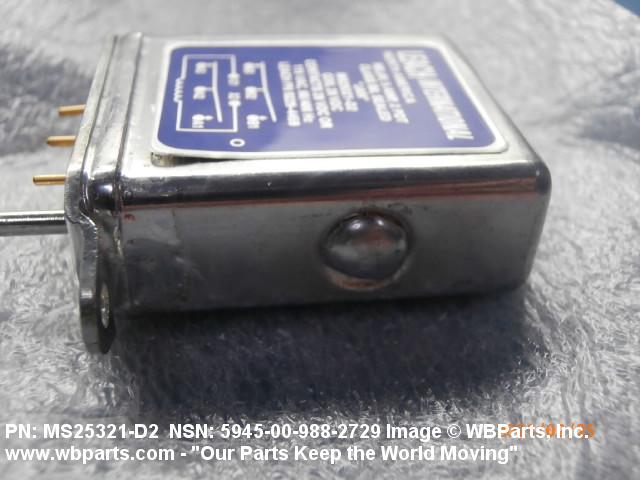

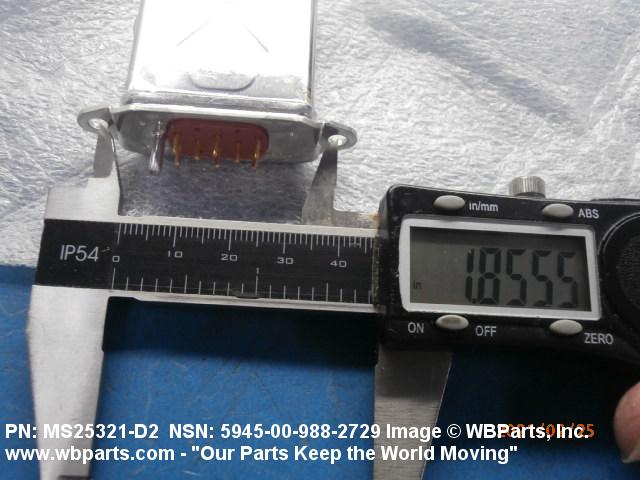

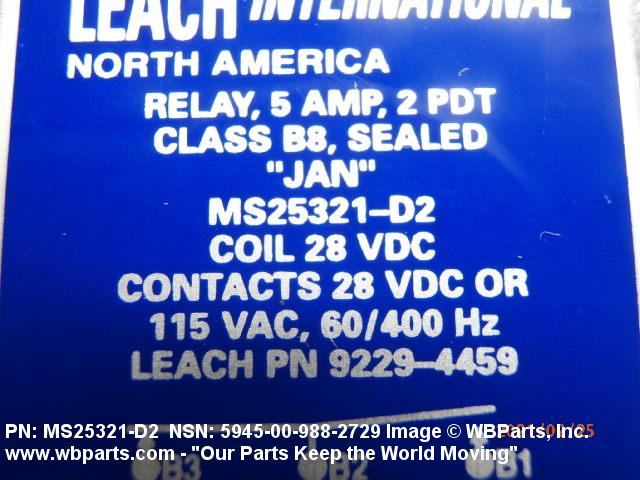

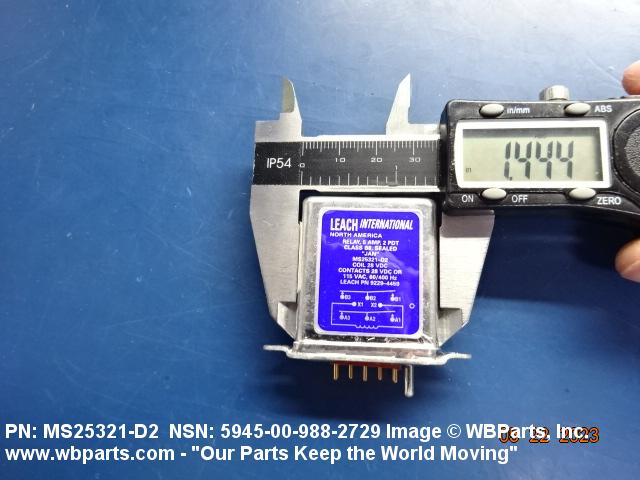

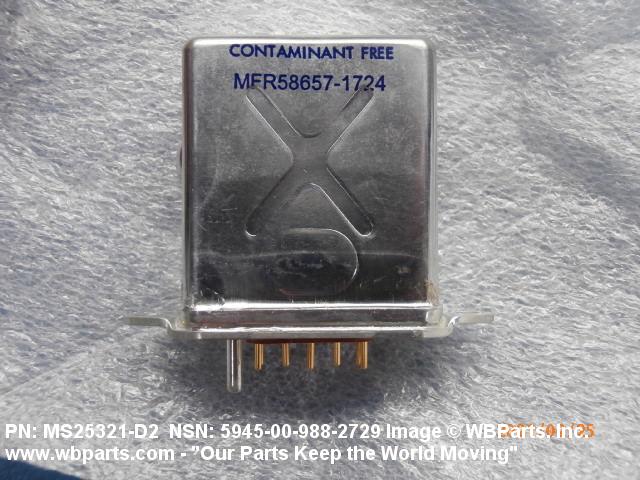

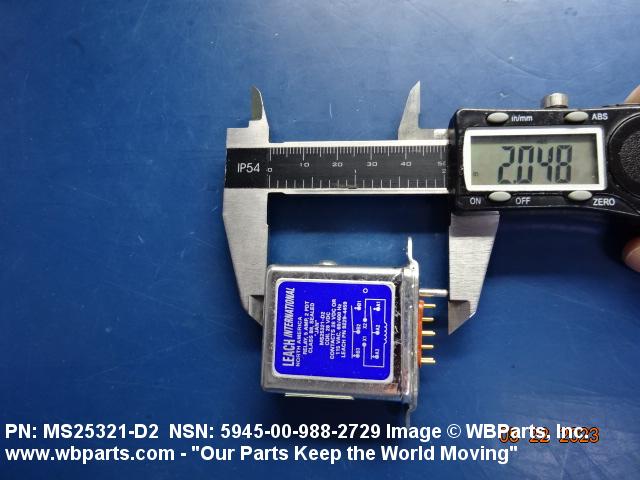

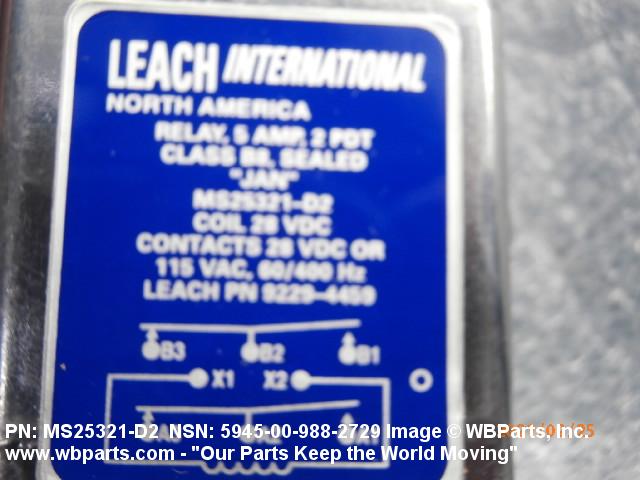

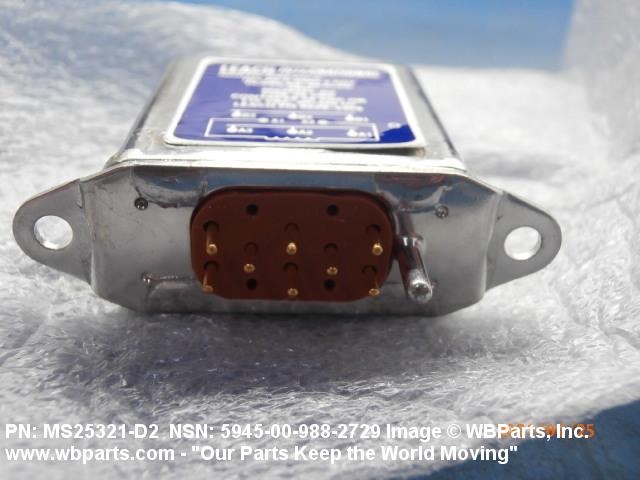

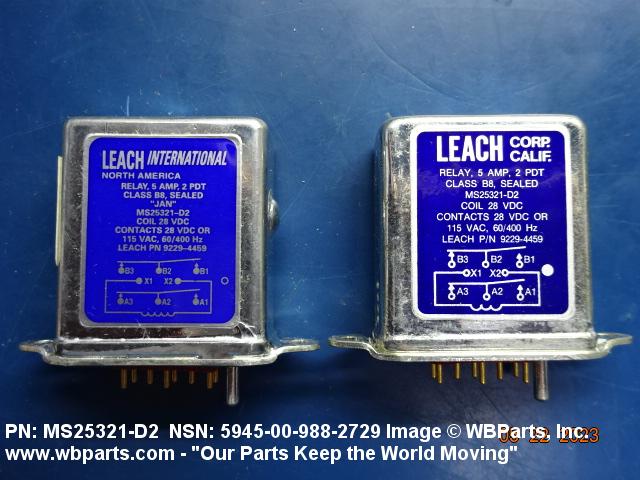

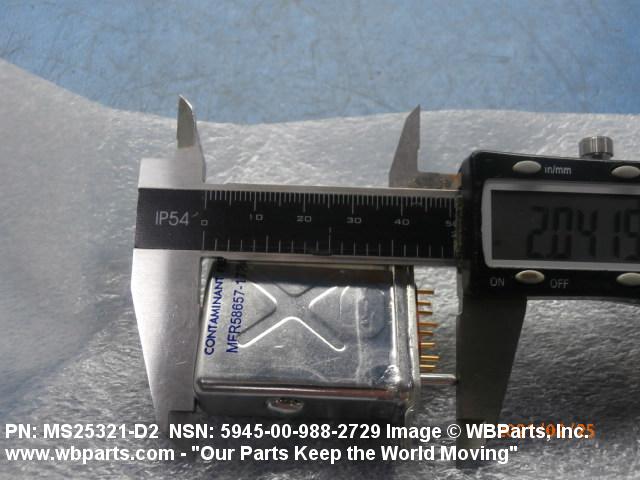

Drawings & Photos | NSN 5945-00-988-2729
Demand History | NSN 5945-00-988-2729
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-988-2729 | 2025-09-258 | 31 | DIBBS |
| 5945-00-988-2729 | 2025-09-247 | 31 | DIBBS |
| 5945-00-988-2729 | 2025-07-209 | 60 | DIBBS |
| 5945-00-988-2729 | 2025-07-198 | 60 | DIBBS |
| 5945-00-988-2729 | 2025-06-153 | 81 | DIBBS |
| 5945-00-988-2729 | 2025-05-125 | 81 | DIBBS |
| 5945-00-988-2729 | 2025-04-120 | 2 | United States |
| 5945-00-988-2729 | 2024-11-319 | 81 | DIBBS |
| 5945-00-988-2729 | 2024-11-308 | 81 | DIBBS |
| 5945-00-988-2729 | 2024-07-186 | 81 | DIBBS |
| 5945-00-988-2729 | 2024-06-162 | 21 | DIBBS |
| 5945-00-988-2729 | 2024-05-151 | 21 | DIBBS |
| 5945-00-988-2729 | 2024-05-130 | 30 | DIBBS |
| 5945-00-988-2729 | 2024-03-84 | 49 | DIBBS |
| 5945-00-988-2729 | 2024-03-82 | 43 | DIBBS |
| 5945-00-988-2729 | 2024-02-39 | 43 | DIBBS |
| MS25321D2 | 2023-08-230 | 15 | United States |
| 5945-00-988-2729 | 2023-05-136 | 2 | us |
| 5945-00-988-2729 | 2023-05-122 | 2 | United States |
| 5945-00-988-2729 | 2023-02-40 | 29 | DIBBS |
| 5945-00-988-2729 | 2023-01-03 | 29 | DIBBS |
| 5945-00-988-2729 | 2022-10-293 | 20 | DIBBS |
| 5945-00-988-2729 | 2022-08-235 | 7 | DIBBS |
| 5945-00-988-2729 | 2022-05-151 | 7 | DIBBS |
| 5945-00-988-2729 | 2022-04-118 | 18 | DIBBS |
| 5945-00-988-2729 | 2022-03-72 | 27 | DIBBS |
| 5945-00-988-2729 | 2022-02-53 | 37 | DIBBS |
| 5945-00-988-2729 | 2022-02-41 | 37 | DIBBS |
| 5945-00-988-2729 | 2021-12-350 | 33 | United States |
| 5945-00-988-2729 | 2021-11-319 | 32 | DIBBS |
| 5945-00-988-2729 | 2021-11-308 | 32 | DIBBS |
| 5945-00-988-2729 | 2021-05-137 | 38 | DIBBS |
| 5945-00-988-2729 | 2021-05-126 | 38 | DIBBS |
| 5945-00-988-2729 | 2021-02-43 | 5 | United States |
| 5945-00-988-2729 | 2021-01-07 | 20 | US |
| 5945-00-988-2729 | 2021-01-06 | 20 | US |
| 5945-00-988-2729 | 2020-11-321 | 64 | DIBBS |
| 5945-00-988-2729 | 2020-11-310 | 64 | DIBBS |
| 5945-00-988-2729 | 2020-10-282 | 47 | DIBBS |
| 5945-00-988-2729 | 2020-08-230 | 17 | DIBBS |
| 5945-00-988-2729 | 2020-08-219 | 17 | DIBBS |
| 5945-00-988-2729 | 2020-03-67 | 139 | DIBBS |
| 5945-00-988-2729 | 2019-01-03 | 37 | DIBBS |
| 5945-00-988-2729 | 2018-08-239 | 1 | DIBBS-RFPs |
| 5945-00-988-2729 | 2018-03-85 | 15 | US |
| MS25321D2 | 2018-03-74 | 15 | United States |
| MS25321D2 | 2017-03-88 | 10 | TH |
| 5945-00-988-2729 | 2013-03-63 | 76 | DIBBS |
| 5945-00-988-2729 | 2012-08-216 | 4 | CA |
| 5945-00-988-2729 | 2012-04-103 | 48 | DIBBS |
| 5945-00-988-2729 | 2011-06-155 | 55 | DIBBS |
| 5945-00-988-2729 | 2011-02-55 | 95 | DIBBS |
| 5945-00-988-2729 | 2011-02-40 | 20 | DIBBS |
| 5945-00-988-2729 | 2011-02-38 | 17 | DIBBS |
| 5945-00-988-2729 | 2010-12-337 | 75 | DIBBS |
| 5945-00-988-2729 | 2010-05-140 | 12 | DIBBS |
| 5945-00-988-2729 | 2010-04-105 | 20 | DIBBS |
| 5945-00-988-2729 | 2010-03-67 | 13 | DIBBS |
| 5945-00-988-2729 | 2010-02-40 | 13 | DIBBS |
| 5945-00-988-2729 | 2009-12-345 | 26 | DIBBS |
| 5945-00-988-2729 | 2009-02-49 | 19 | DIBBS |
| MS25321D2 | 2008-12-361 | 5 | Malaysia |
| 5945-00-988-2729 | 2008-12-340 | 58 | DIBBS |
| 5945-00-988-2729 | 2008-11-317 | 70 | DIBBS |
| 5945-00-988-2729 | 2008-10-283 | 129 | DIBBS |
| MS25321D2 | 2008-09-252 | 3 | US |
| 5945-00-988-2729 | 2008-07-199 | 20 | DIBBS |
| 5945-00-988-2729 | 2008-06-176 | 11 | DIBBS |
| 5945-00-988-2729 | 2008-06-171 | 90 | DIBBS |
| 5945-00-988-2729 | 2008-04-95 | 26 | DIBBS |
| 5945-00-988-2729 | 2008-02-60 | 25 | DIBBS |
| MS25321D2 | 2008-02-32 | 7 | US |
| 5945-00-988-2729 | 2007-08-215 | 42 | DIBBS |
| 5945-00-988-2729 | 2007-03-89 | 10 | DIBBS |
| 5945-00-988-2729 | 2007-02-52 | 26 | DIBBS |
| 5945-00-988-2729 | 2006-05-139 | 37 | DIBBS |
Cross Reference | NSN 5945-00-988-2729
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4170600-8 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4170600-8 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 607F490N13 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| MIL-PRF-6106 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-6106 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25321-D2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-988-2729
Related Products | NSN 5945-00-988-2729
Technical Data | NSN 5945-00-988-2729
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.0 AMPERES AC AND 5.0 AMPERES DC RESISTIVE LOAD 3.0 AMPERES AC AND 3.0 AMPERES DC INDUCTIVE LOAD 800.0 MILLIAMPERES AC AND 800.0 MILLIAMPERES DC LAMP LOAD 1.5 AMPERES AC AND 1.5 AMPERES DC MOTOR LOAD |
| ARC QUENCHING METHOD | AIR |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |

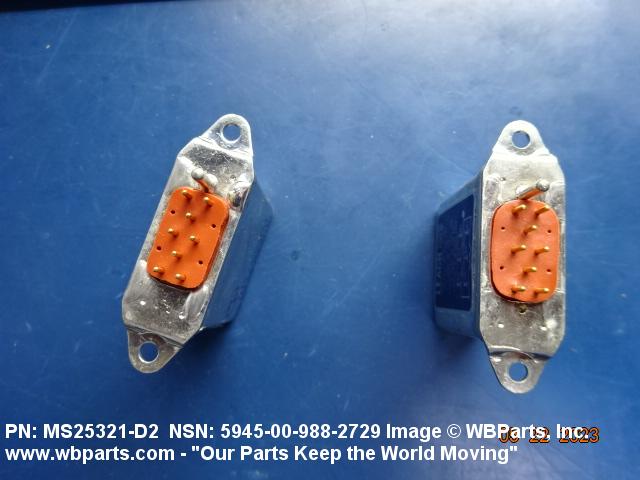

| TERMINAL TYPE AND QUANTITY | 8 PIN ALL FUNCTIONS |
| TIME DELAY | 0.02 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |

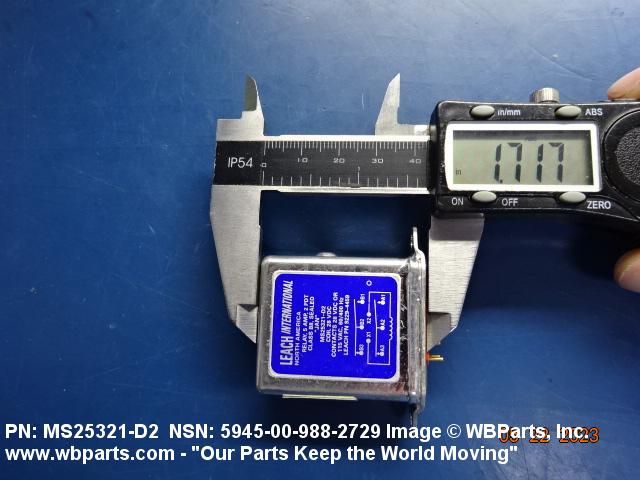

| OVERALL LENGTH | 2.187 INCHES MAXIMUM |

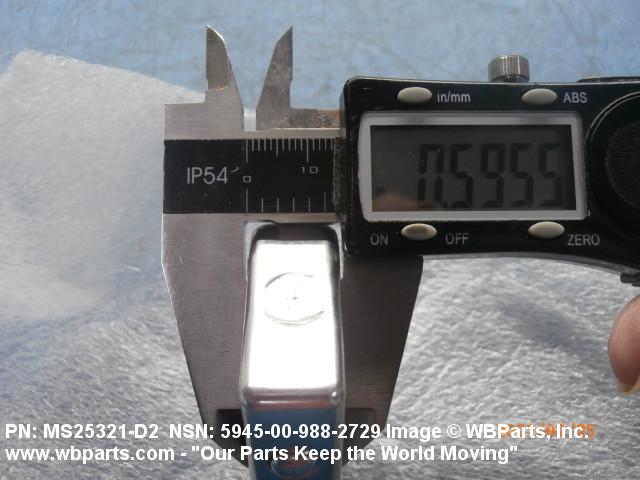

| OVERALL WIDTH | 0.687 INCHES MAXIMUM |

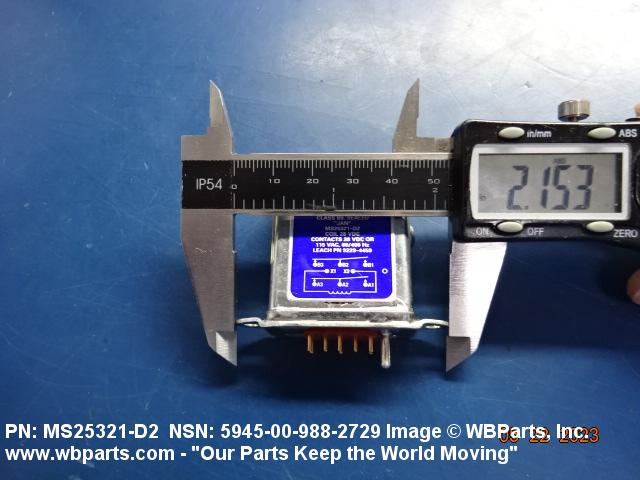

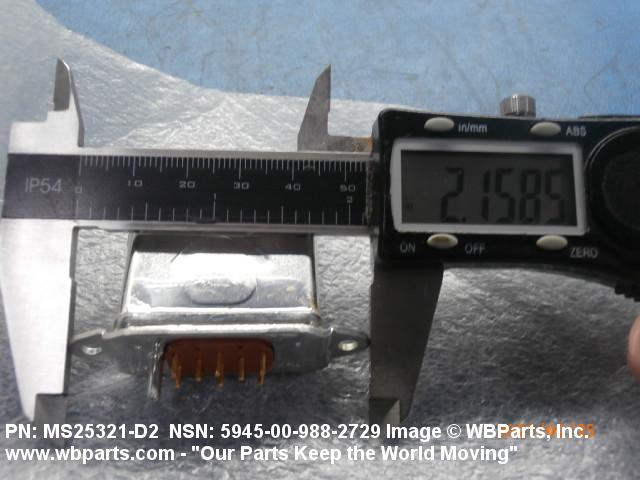

| OVERALL HEIGHT | 2.156 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | IN-LINE SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.844 INCHES NOMINAL SINGLE MOUNTING FACILITY |

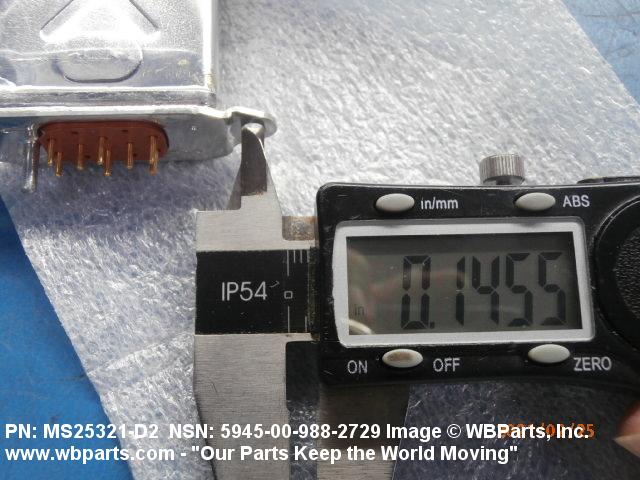

| UNTHREADED MOUNTING HOLE DIAMETER | 0.147 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| TEST DATA DOCUMENT | 81349-MIL-R-6106 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS25321 GOVERNMENT STANDARD |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III CUBIC MEASURE | 3.239 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 0.180 POUNDS |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III CASE MATERIAL | METAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-6106 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25321-D2 |
Restrictions/Controls & Freight Information | NSN 5945-00-988-2729
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-988-2729
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
