NSN 5950-00-587-0170 APD743, APD-743, APH107
Product Details | PULSE TRANSFORMER
5950-00-587-0170 A transformer designed to transfer pulses of nonsinusoidal wave forms between circuits without basically changing the wave forms.
Part Alternates: APD743, APD-743, APH107, C2518, PEI 7148, PEI7148, 403195, 41293, 5950-00-587-0170, 00-587-0170, 5950005870170, 005870170
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 DEC 1974 | 00-587-0170 | 00208 ( TRANSFORMER, PULSE ) |

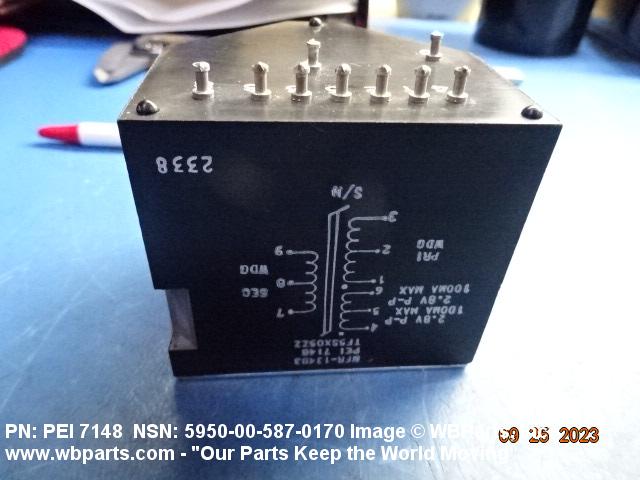

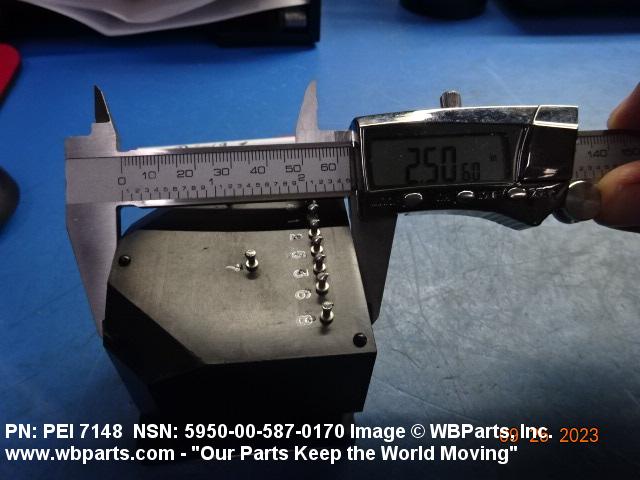

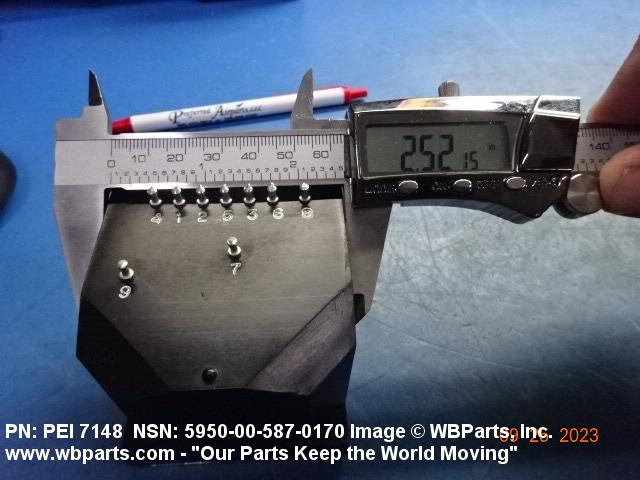

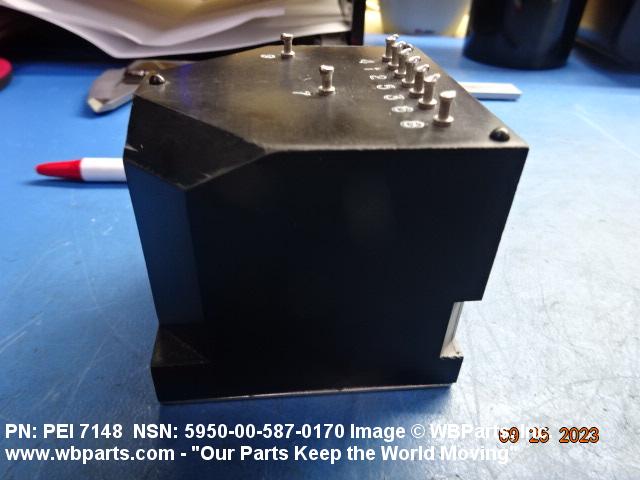

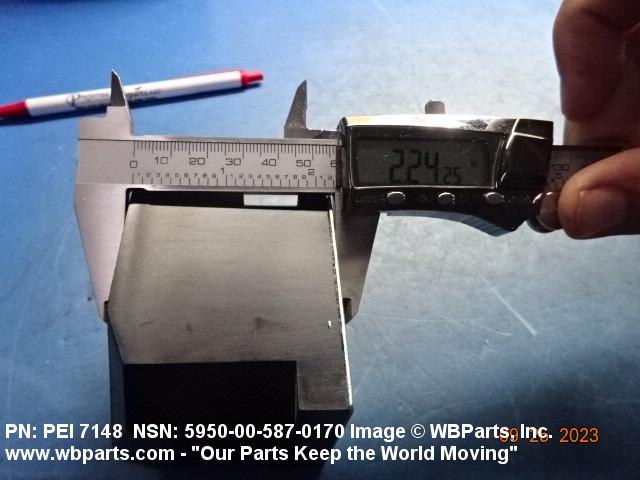

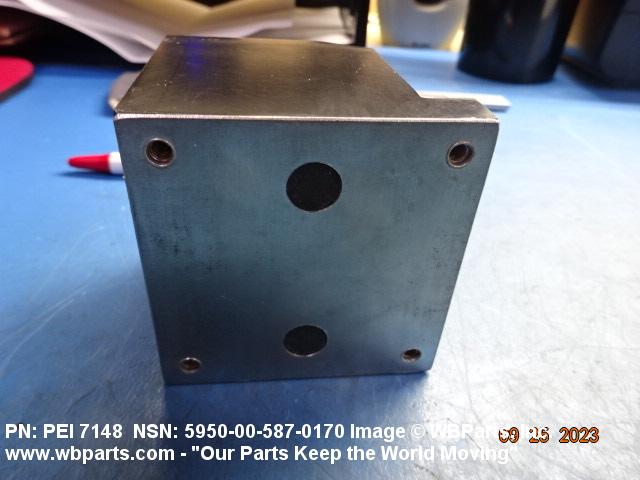

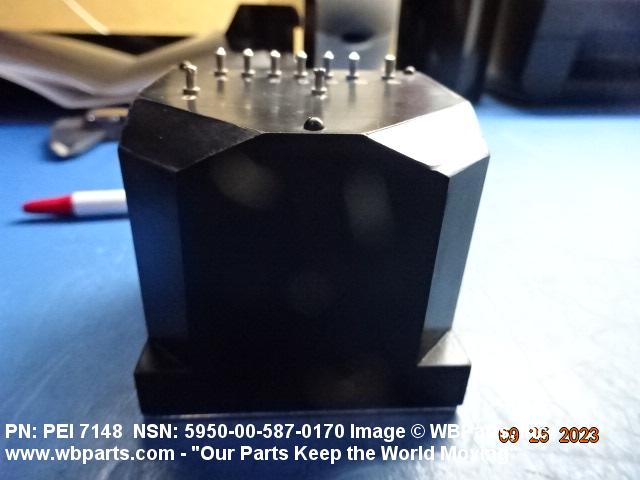

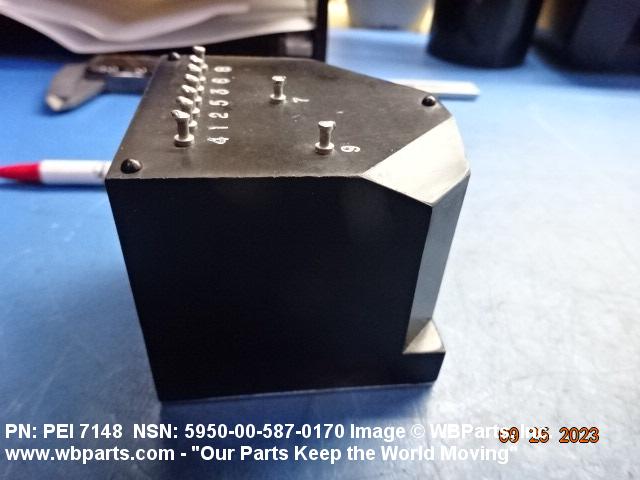

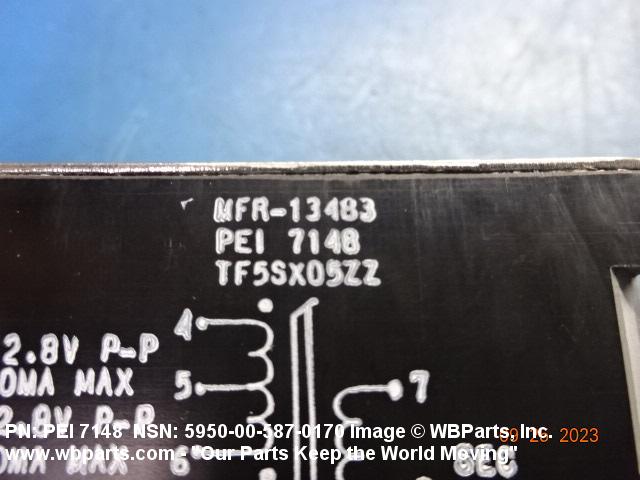

Drawings & Photos | NSN 5950-00-587-0170
Demand History | NSN 5950-00-587-0170
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-00-587-0170 | 2023-08-233 | 5 | United States |
| 5950-00-587-0170 | 2016-11-312 | 10 | DIBBS |
| 5950-00-587-0170 | 2016-10-278 | 45 | DIBBS |
| 5950-00-587-0170 | 2016-06-159 | 6 | DIBBS |
| 5950-00-587-0170 | 2015-10-278 | 2 | DIBBS |
| 5950-00-587-0170 | 2013-11-320 | 2 | DIBBS |
| 5950-00-587-0170 | 2013-10-304 | 2 | DIBBS |
| 5950-00-587-0170 | 2013-04-119 | 1 | DIBBS |
| 5950-00-587-0170 | 2013-04-104 | 1 | DIBBS |
| 5950-00-587-0170 | 2009-01-29 | 8 | DIBBS |
| 5950-00-587-0170 | 2008-11-325 | 12 | DIBBS |
| 5950-00-587-0170 | 2008-08-232 | 10 | DIBBS |
Cross Reference | NSN 5950-00-587-0170
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 403195 | 12909 | CARDION INC |
| 403195 | 20284 | TARGET CORPORATION DBA TARGET |
| 41293 | 22558 | COAST/ADVANCED CHIP MAGNETICS, INC. DBA COAST/A C M |
| APD-743 | 15634 | MAGNETIKA, INC |
| APD-743 | 1L8V1 | MAGNETIKA, INC DBA MANUFACTURING BRANCH |
| APD-743 | 53342 | OPT INDUSTRIES INC DIV OF ELECTRONIKA INC |
| APD-743 | 80223 | UNITED TRANSFORMER CORP SUB OF OPT INDUSTRIES INC |
| APH107 | 80223 | UNITED TRANSFORMER CORP SUB OF OPT INDUSTRIES INC |
| C2518 | 72149 | ELECTRONIC TRANSFORMER CORP. |
| PEI 7148 | 13483 | PRECISION ELECTRONICS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5950-00-587-0170
Related Products | NSN 5950-00-587-0170
Technical Data | NSN 5950-00-587-0170
| Characteristic | Specifications |
|---|---|

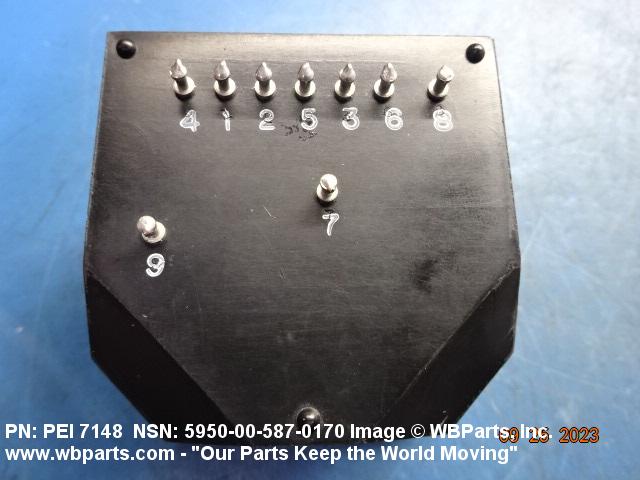

| TERMINAL TYPE AND QUANTITY | 9 TURRET |

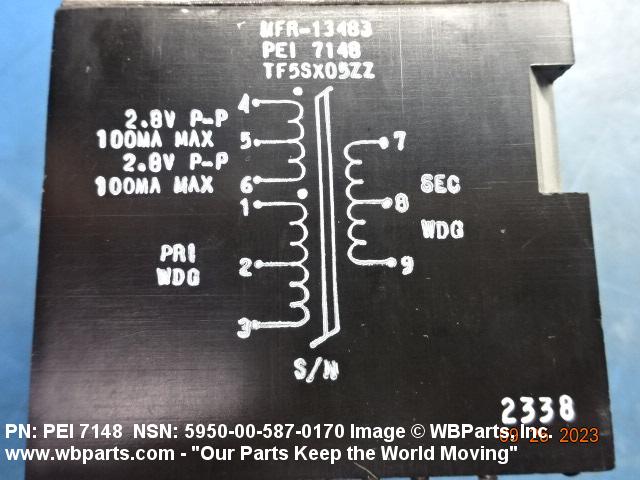

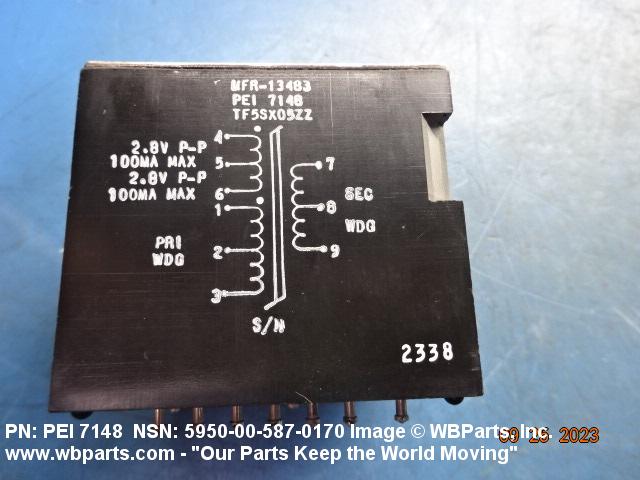

| (NON-CORE DATA) WINDING TAP LOCATION | CENTER TAP SINGLE COMPONENT 1ST PRIMARY CENTER TAP SINGLE COMPONENT 2ND PRIMARY CENTER TAP SINGLE COMPONENT SINGLE SECONDARY |
| FREQUENCY RATING | 2.0 KILOHERTZ MINIMUM AND 3.0 KILOHERTZ MAXIMUM SINGLE COMPONENT |
| WINDING SHIELDING METHOD | EXTERNAL INCLOSURE SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 2 PRIMARY AND 1 SECONDARY SINGLE COMPONENT |
| MOUNTING METHOD | FLANGE AND UNTHREADED HOLE SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 2 SINGLE GROUP |

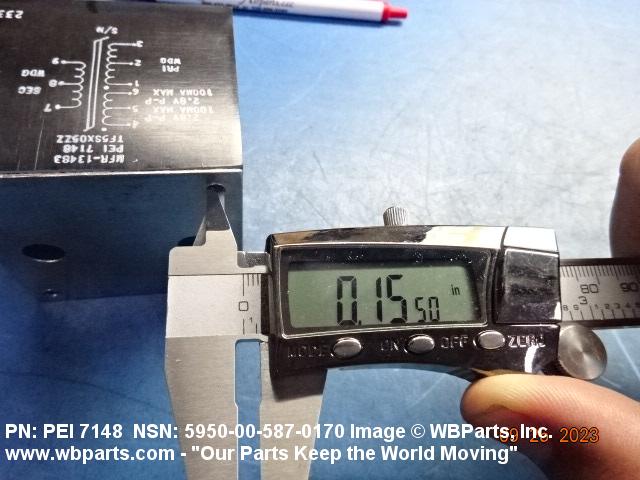

| MOUNTING HOLE DIAMETER | 0.166 INCHES NOMINAL SINGLE GROUP |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.400 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |
| BODY LENGTH | 1.850 INCHES MAXIMUM |
| BODY HEIGHT | 2.300 INCHES MAXIMUM |
| BODY WIDTH | 2.600 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MANUFACTURERS CODE | 20284 |
| DESIGN CONTROL REFERENCE | 403195 |
Restrictions/Controls & Freight Information | NSN 5950-00-587-0170
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5950-00-587-0170
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
