NSN 5950-01-067-0986 35Z1131, 4005426501, 40-054265-01
Product Details | PULSE TRANSFORMER
5950-01-067-0986 A transformer designed to transfer pulses of nonsinusoidal wave forms between circuits without basically changing the wave forms.
Part Alternates: 35Z1131, 4005426501, 40-054265-01, 5950-01-067-0986, 01-067-0986, 5950010670986, 010670986
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 OCT 1978 | 01-067-0986 | 00208 ( TRANSFORMER, PULSE ) |

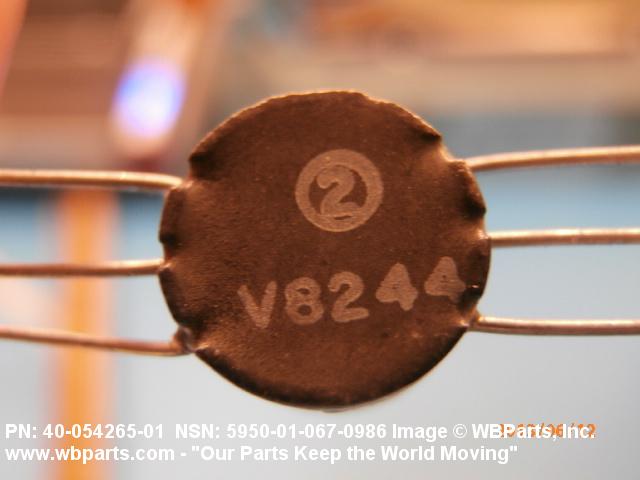

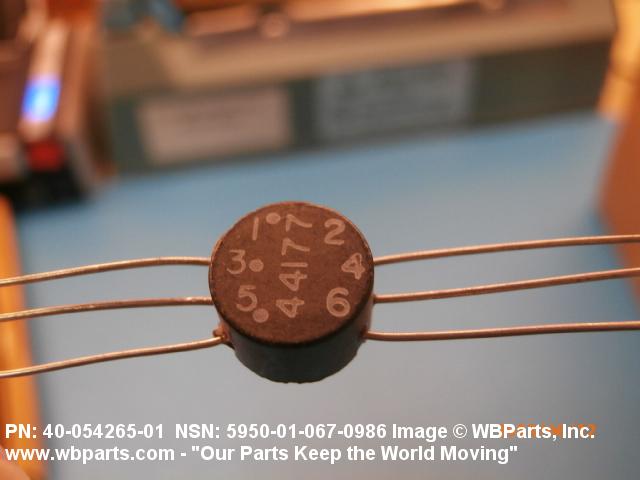

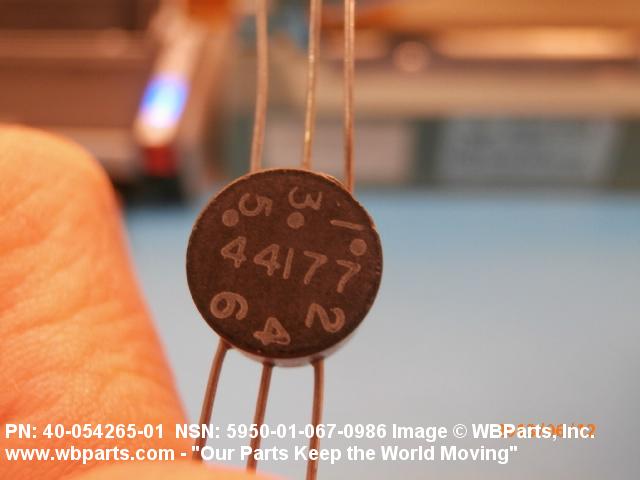

Drawings & Photos | NSN 5950-01-067-0986
Demand History | NSN 5950-01-067-0986
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4005426501 | 2013-06-169 | 2 | United States |
| 35Z1131 | 2013-04-106 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5950-01-067-0986
Related Products | NSN 5950-01-067-0986
Technical Data | NSN 5950-01-067-0986
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD |
| (NON-CORE DATA) PEAK VOLTAGE RATING | 50.0 VOLTS SINGLE COMPONENT SINGLE PRIMARY 50.0 VOLTS SINGLE COMPONENT SINGLE SECONDARY 50.0 VOLTS SINGLE COMPONENT SINGLE TERTIARY |
| DC RESISTANCE RATING IN OHMS | 3.700 SINGLE COMPONENT SINGLE PRIMARY 4.600 SINGLE COMPONENT SINGLE SECONDARY 4.600 SINGLE COMPONENT ALL TERTIARY |
| INDUCTANCE RATING | 2.00 MILLIHENRIES NOMINAL SINGLE COMPONENT SINGLE PRIMARY 5.00 MILLIHENRIES MAXIMUM SINGLE COMPONENT SINGLE SECONDARY |
| FREQUENCY RATING | 790.0 KILOHERTZ NOMINAL SINGLE COMPONENT |
| (NON-CORE DATA) PULSE RISE TIME IN MICROSECONDS | 0.002 SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 PRIMARY AND 1 SECONDARY AND 1 TERTIARY SINGLE COMPONENT |
| MOUNTING METHOD | TERMINAL SINGLE GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |

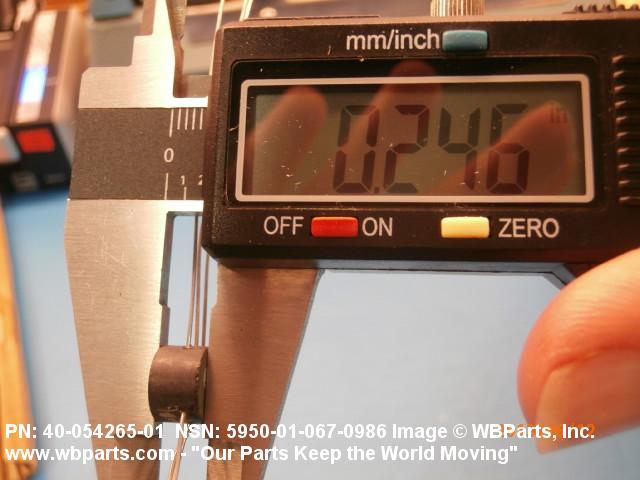

| BODY LENGTH | 0.250 INCHES MAXIMUM |

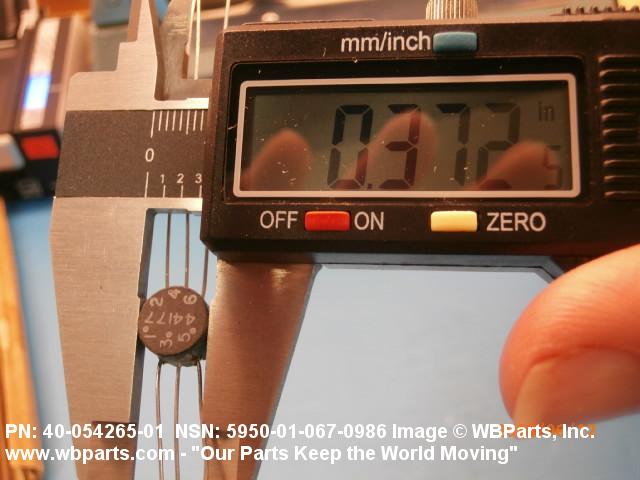

| BODY OUTSIDE DIAMETER | 0.375 INCHES MAXIMUM |
| FEATURES PROVIDED | TINNED WIRE LEADS |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III MAXIMUM OPERATING TEMP | 125.0 DEG CELSIUS |
Restrictions/Controls & Freight Information | NSN 5950-01-067-0986
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5950-01-067-0986
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
