NSN 5950-01-144-3236 20B1032A, 20B103-2A, 2B1031
Product Details | CURRENT TRANSFORMER
5950-01-144-3236 An item consisting of one or more windings, designed to be placed near or connected in series with an alternating current power line to measure the current passing through the line by means of a meter; or to control the current passing through the line by means of a control device. Excludes TRANSFORMER, POWER, CURRENT REGULATING.
Part Alternates: 20B1032A, 20B103-2A, 2B1031, 2B103-1, 2B1031A, 2B103-1-A, 2B1032A, 2B103-2A, 2B103-2-A, 7055002031, 70550-02031 , 70550-02031-108, 5950-01-144-3236, 01-144-3236, 7055002031108, 5950011443236, 011443236
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 DEC 1982 | 01-144-3236 | 00738 ( TRANSFORMER, CURRENT ) |

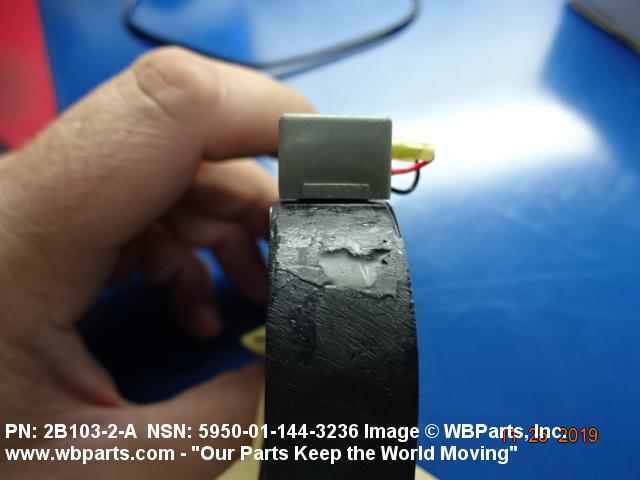

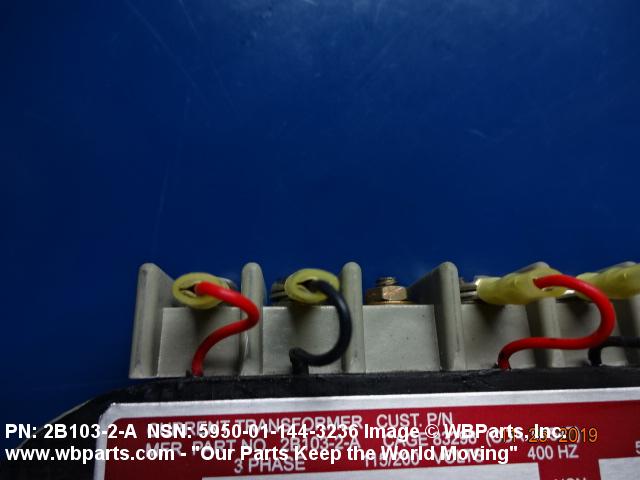

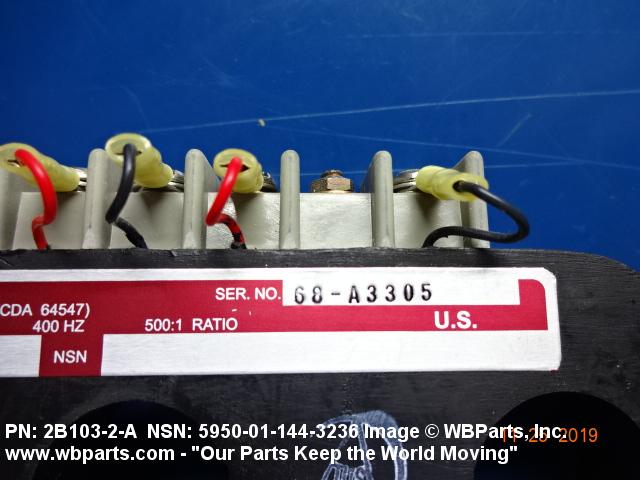

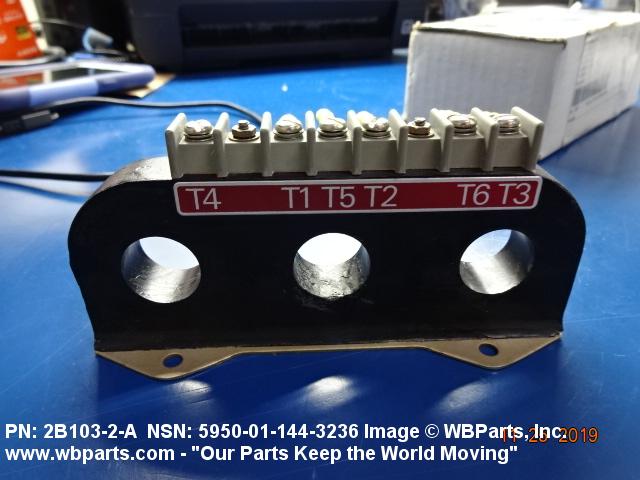

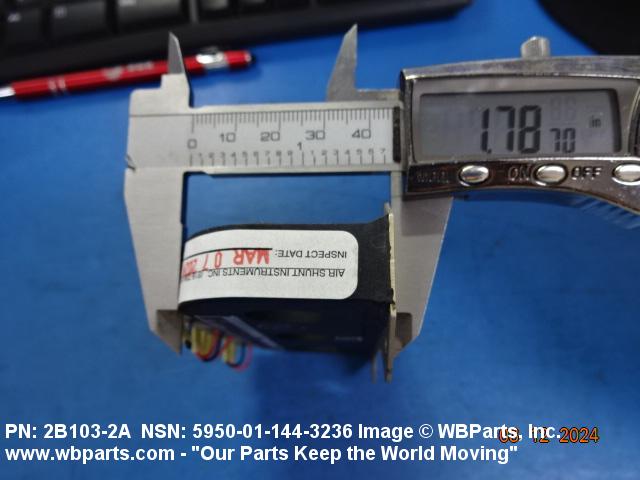

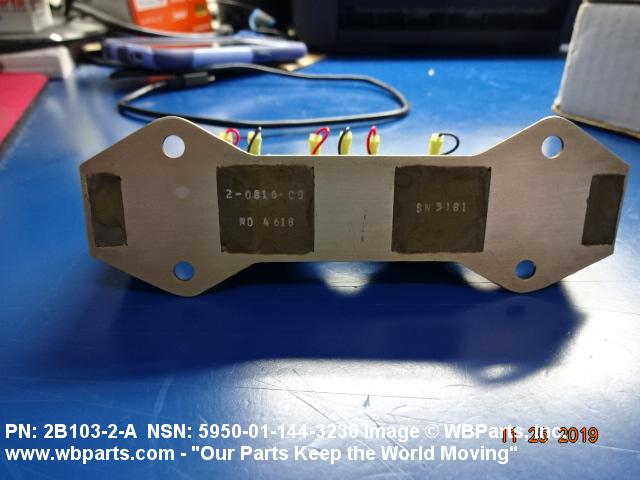

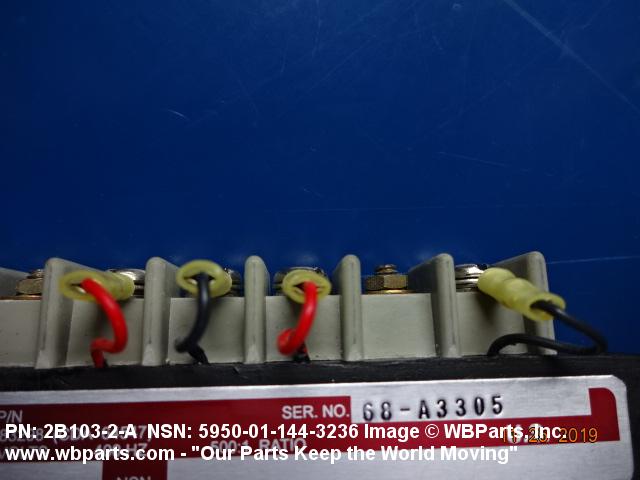

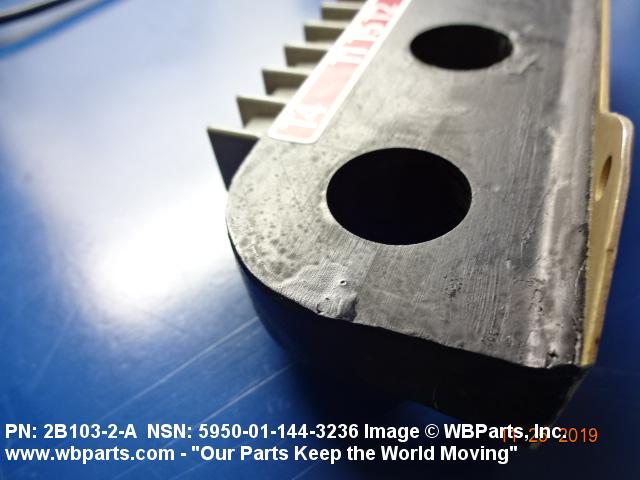

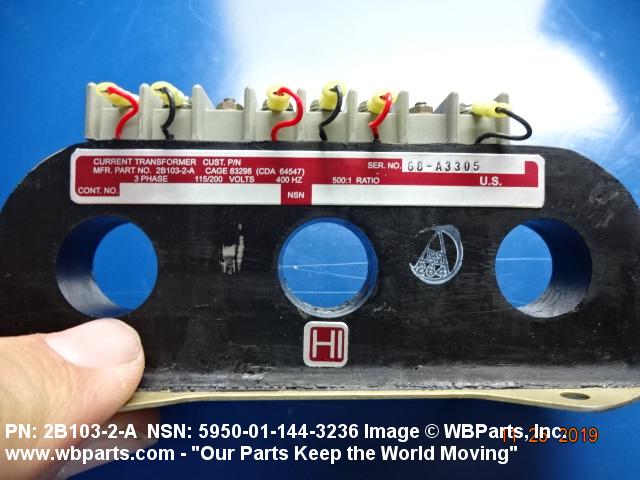

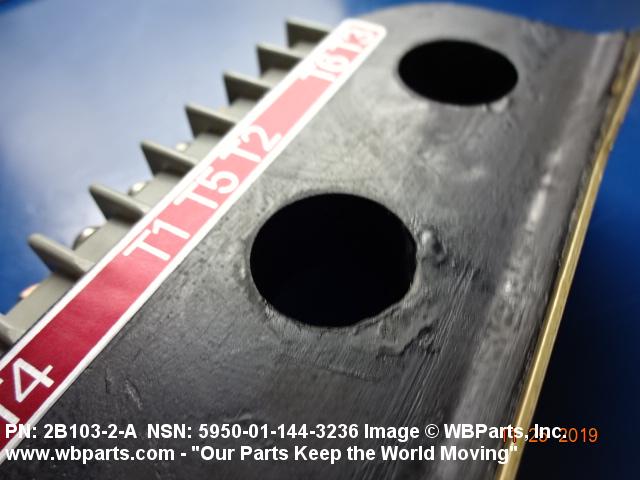

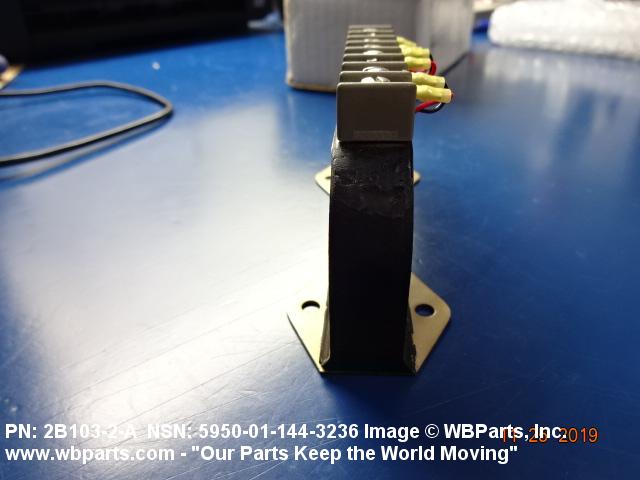

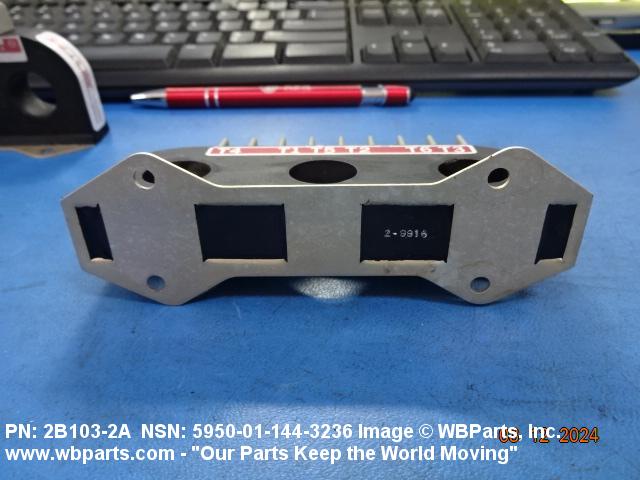

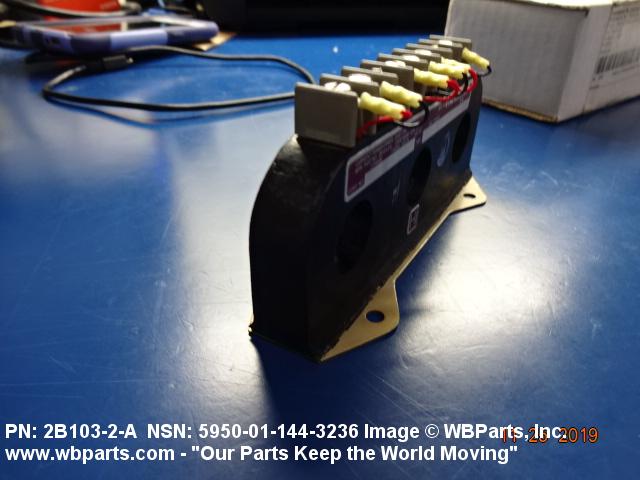

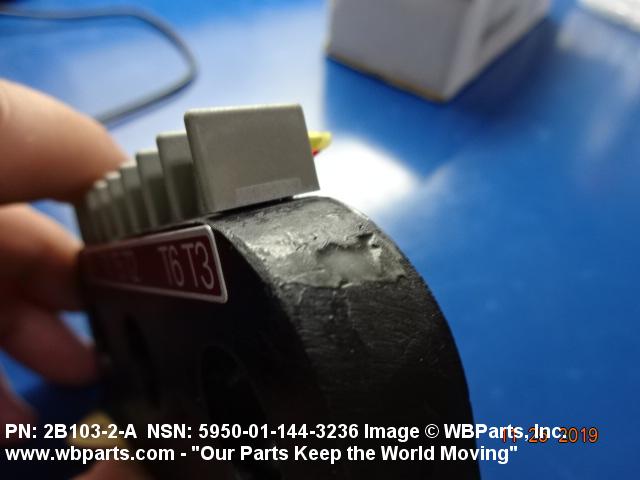

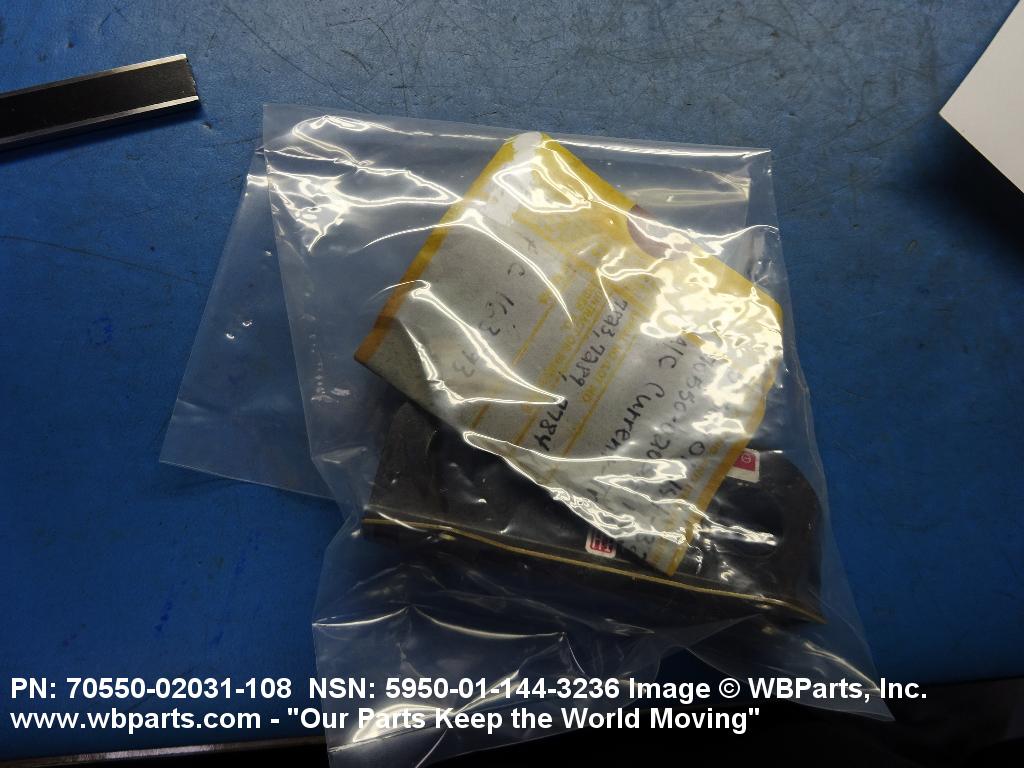

Drawings & Photos | NSN 5950-01-144-3236
Demand History | NSN 5950-01-144-3236
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-01-144-3236 | 2025-12-343 | 2 | Korea |
| 5950-01-144-3236 | 2025-11-309 | 1 | Korea |
| 5950-01-144-3236 | 2025-10-304 | 10 | US |
| 5950-01-144-3236 | 2025-10-303 | 10 | US |
| 5950-01-144-3236 | 2025-10-303 | 20 | US |
| 5950-01-144-3236 | 2025-10-303 | 10 | US |
| 5950-01-144-3236 | 2025-10-302 | 1 | US |
| 5950-01-144-3236 | 2025-10-301 | 10 | US |
| 2B103-2A | 2025-05-135 | 106 | DIBBS |
| 70550-02031-108 | 2025-05-135 | 106 | DIBBS |
| 2B103-2A | 2025-03-72 | 86 | DIBBS |
| 70550-02031-108 | 2025-03-72 | 86 | DIBBS |
| 7055-00-203-1108 | 2024-08-242 | 77 | United States |
| 2B103-2A | 2024-08-232 | 20 | DIBBS |
| 70550-02031-108 | 2024-08-232 | 20 | DIBBS |
| 2B1032A | 2024-02-33 | 2 | Korea |
| 2B1032A | 2023-11-311 | 2 | Korea |
| 5950-01-144-3236 | 2022-10-285 | 1 | CO |
| 5950-01-144-3236 | 2022-05-131 | 1 | Taiwan |
| 5950-01-144-3236 | 2022-03-80 | 1 | Taiwan |
| 5950-01-144-3236 | 2021-10-286 | 2 | United States |
| 2B103-2A | 2020-04-117 | 182 | DIBBS |
| 70550-02031-108 | 2020-04-117 | 182 | DIBBS |
| 2B103-2A | 2020-03-86 | 68 | DIBBS |
| 70550-02031-108 | 2020-03-86 | 68 | DIBBS |
| 2B103-2A | 2020-03-62 | 88 | DIBBS |
| 70550-02031-108 | 2020-03-62 | 88 | DIBBS |
| 2B103-2A | 2020-02-57 | 34 | DIBBS |
| 70550-02031-108 | 2020-02-57 | 34 | DIBBS |
| 2B103-2A | 2020-02-34 | 20 | DIBBS |
| 70550-02031-108 | 2020-02-34 | 20 | DIBBS |
| 5950-01-144-3236 | 2019-11-308 | 1 | United States |
| 5950-01-144-3236 | 2019-11-308 | 3 | United States |
| 5950-01-144-3236 | 2019-09-259 | 3 | US |
| 2B103-2A | 2019-04-111 | 21 | DIBBS |
| 70550-02031-108 | 2019-04-111 | 21 | DIBBS |
| 2B103-2A | 2019-03-68 | 23 | DIBBS |
| 70550-02031-108 | 2019-03-68 | 23 | DIBBS |
| 5950-01-144-3236 | 2018-01-23 | 1 | United States |
| 7055-00-203-1108 | 2017-11-306 | 416 | United States |
| 5950-01-144-3236 | 2017-07-207 | 20 | DIBBS |
| 5950-01-144-3236 | 2017-04-116 | 20 | DIBBS |
| 5950-01-144-3236 | 2017-03-88 | 25 | DIBBS |
| 5950-01-144-3236 | 2017-01-18 | 20 | DIBBS |
| 5950-01-144-3236 | 2016-06-161 | 50 | DIBBS |
| 5950-01-144-3236 | 2016-05-124 | 26 | DIBBS |
| 7055-00-203-1108 | 2016-01-08 | 1 | US |
| 5950-01-144-3236 | 2015-09-251 | 20 | United States |
| 5950-01-144-3236 | 2015-09-245 | 20 | DIBBS |
| 20B103-2A | 2015-08-243 | 1 | US |
| 5950-01-144-3236 | 2015-08-243 | 1 | MANUAL |
| 20B1032A | 2013-10-293 | 5 | Colombia |
| 5950-01-144-3236 | 2012-09-250 | 20 | US |
| 20B1032A | 2012-03-61 | 20 | US |
| 20B1032A | 2011-09-259 | 3 | US |
| 20B1032A | 2009-12-335 | 1 | United States |
| 20B1032A | 2009-08-223 | 3 | US |
| 20B1032A | 2009-07-182 | 3 | US |
| 2B1032A | 2008-02-43 | 10 | South Korea |
Cross Reference | NSN 5950-01-144-3236
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20B103-2A | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 20B103-2A | 64547 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 20B103-2A | 83298 | ALLIED SIGNAL INC AEROSPACE EQUIPMENT SYSTEMS |
| 2B103-1 | 64547 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 2B103-1-A | 83298 | ALLIED SIGNAL INC AEROSPACE EQUIPMENT SYSTEMS |
| 2B103-2-A | 83298 | ALLIED SIGNAL INC AEROSPACE EQUIPMENT SYSTEMS |
| 2B103-2A | 64547 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 70550-02031-108 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5950-01-144-3236
Related Products | NSN 5950-01-144-3236
Technical Data | NSN 5950-01-144-3236
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 1 TERMINAL BLOCK W/SCREWS |
| WINDING OPERATING VOLTAGE | 115.00 AC VOLTS MINIMUM AND 200.00 AC VOLTS MAXIMUM SINGLE COMPONENT SINGLE SECONDARY |
| WINDING OPERATING CURRENT | 225.0 MILLIAMPERES AC MINIMUM AND 260.9 MILLIAMPERES AC MAXIMUM SINGLE COMPONENT SINGLE SECONDARY |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL SINGLE COMPONENT |
| MAXIMUM TRANSFORMER POWER RATING | 45.0 KILOVOLT-AMPERE SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 SECONDARY SINGLE COMPONENT |
| INPUT-OUTPUT PHASE RELATIONSHIP | THREE PHASE TO THREE PHASE SINGLE COMPONENT |
| MOUNTING METHOD | UNTHREADED HOLE SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 4 SINGLE GROUP |
| MOUNTING HOLE DIAMETER | 0.177 INCHES MINIMUM AND 0.187 INCHES MAXIMUM SINGLE GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.146 INCHES MINIMUM AND 3.166 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.083 INCHES MINIMUM AND 1.103 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |
| BODY LENGTH | 4.750 INCHES MAXIMUM |
| BODY HEIGHT | 2.219 INCHES MAXIMUM |
| BODY WIDTH | 1.625 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | PRIMARY RATED BUT NOT INCLUDED |
| (NON-CORE DATA) UNPACKAGED UNIT WEIGHT | 0.600 POUNDS |
| (NON-CORE DATA) CUBIC MEASURE | 17.1 CUBIC INCHES |
Restrictions/Controls & Freight Information | NSN 5950-01-144-3236
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5950-01-144-3236
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GA | TG:H-1 IROQUOIS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
