NSN 5950-01-158-9862 M21038/27-07, M210382707, X12582
Product Details | PULSE TRANSFORMER
5950-01-158-9862 A transformer designed to transfer pulses of nonsinusoidal wave forms between circuits without basically changing the wave forms.
Part Alternates: M21038/27-07, M210382707, X12582, X1258-2, 247031P1, 5950-01-158-9862, 01-158-9862, 5950011589862, 011589862
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 AUG 1983 | 01-158-9862 | 00208 ( TRANSFORMER, PULSE ) |

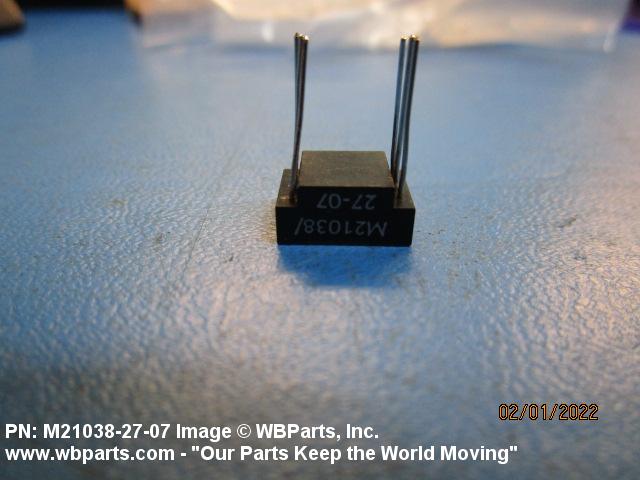

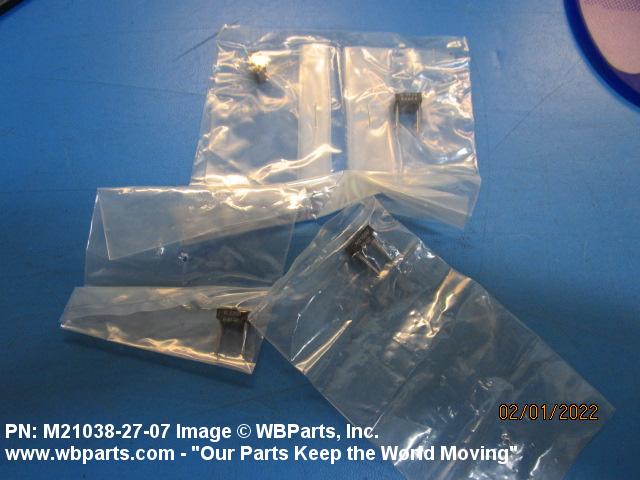

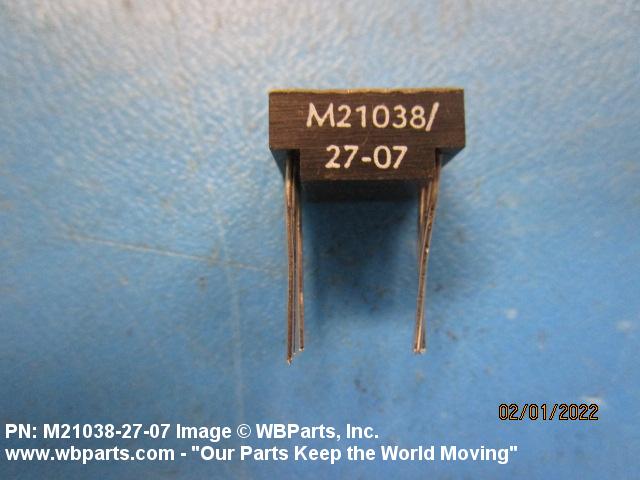

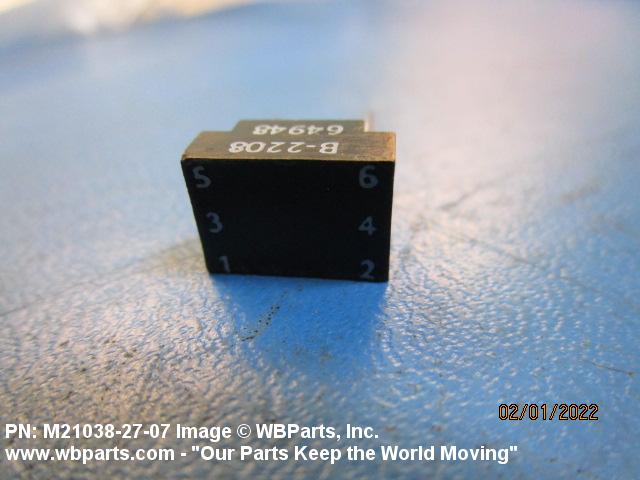

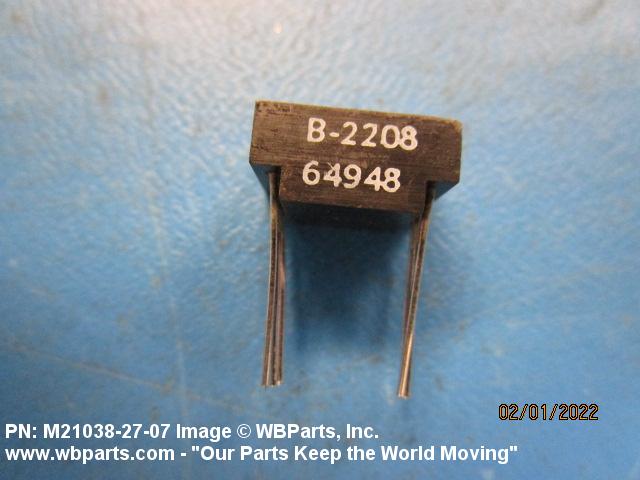

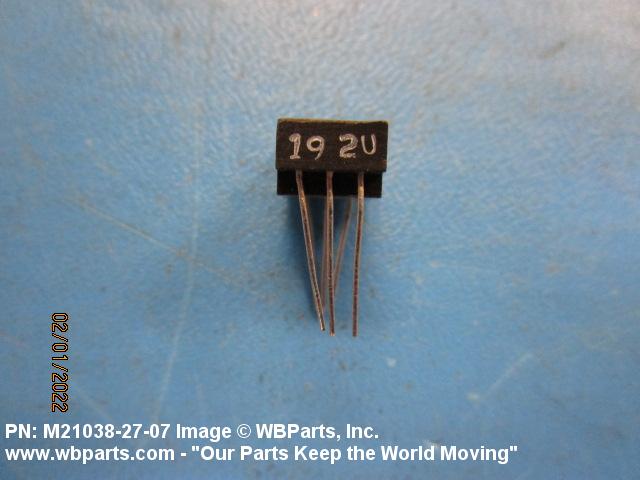

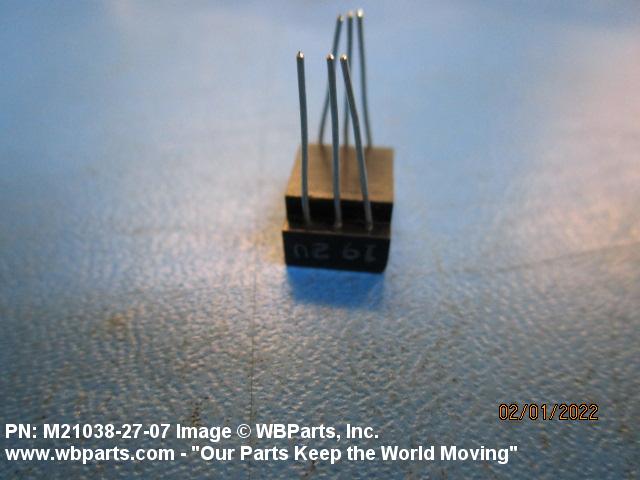

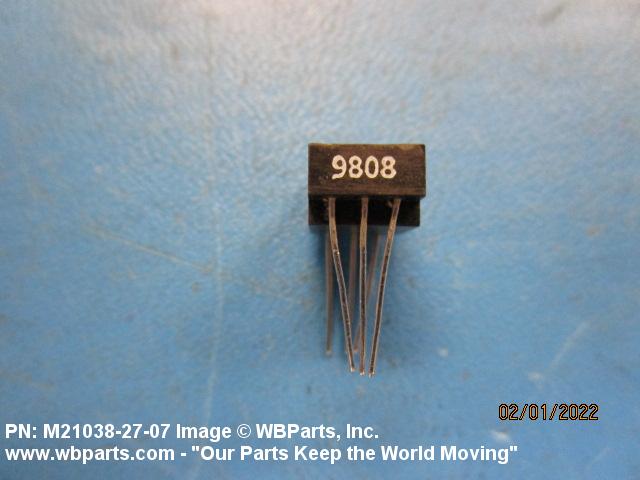

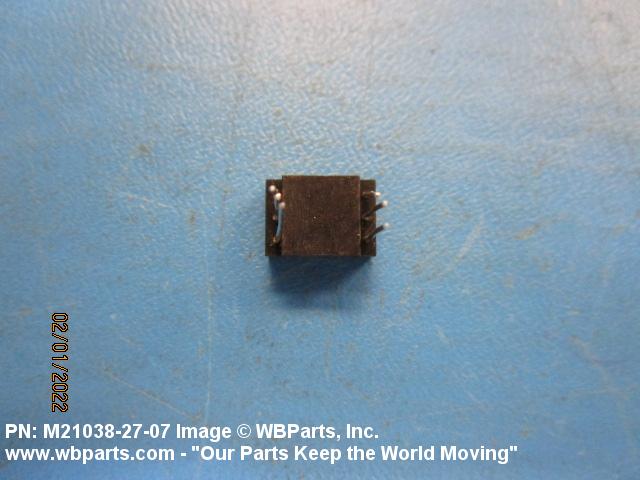

Drawings & Photos | NSN 5950-01-158-9862
Demand History | NSN 5950-01-158-9862
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-01-158-9862 | 2022-01-25 | 5 | United States |
| 5950-01-158-9862 | 2012-09-264 | 1 | DIBBS |
| 5950-01-158-9862 | 2009-04-106 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5950-01-158-9862
Related Products | NSN 5950-01-158-9862
Technical Data | NSN 5950-01-158-9862
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD |
| (NON-CORE DATA) WINDING TAP LOCATION | CENTER TAP SINGLE COMPONENT SINGLE PRIMARY CENTER TAP SINGLE COMPONENT SINGLE SECONDARY |
| FREQUENCY RATING | 75.0 KILOHERTZ MINIMUM AND 1.0 MEGAHERTZ MAXIMUM SINGLE COMPONENT |
| PRIMARY TO SECONDARY TURN RATIO | 1-3/64 TO 1 SINGLE COMPONENT |
| (NON-CORE DATA) PULSE RISE TIME IN MICROSECONDS | 0.150 SINGLE COMPONENT |
| (NON-CORE DATA) PULSE DECAY TIME IN MICROSECONDS | 0.150 SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 PRIMARY AND 1 SECONDARY SINGLE COMPONENT |
| MOUNTING METHOD | TERMINAL SINGLE GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |
| BODY LENGTH | 0.500 INCHES MAXIMUM |
| BODY HEIGHT | 0.250 INCHES MAXIMUM |
| BODY WIDTH | 0.350 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III MAXIMUM OPERATING TEMP | 110.0 DEG CELSIUS |
Restrictions/Controls & Freight Information | NSN 5950-01-158-9862
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5950-01-158-9862
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
