Product Details | RADIO FREQUENCY COIL
5950-01-203-8104 An item consisting of a partial turn as one or more turns of wire or other conductive material which constitutes one continuous untapped winding. It may be wound or formed in other than a circular manner and may be self-supporting, requiring no coil form. It is specifically designed to furnish inductive reactance in a circuit carrying radio frequency current ranging from 20 kilohertz (kilocycles) and above. It may include tuning devices, integral resistors and capacitors; however, excludes FILTER (as modified). The coil has only two electrical terminals. For items having tapped winding or more than one winding - see TRANSFORMER, RADIO FREQUENCY. For coils wound on resistors, which are designed to be inserted in the circuit of a radio frequency stage to suppress high frequency parasitic oscillations, see SUPPRESSOR, PARASITIC.
Part Alternates: 10272703-6, 18870, 18874, 5950-01-203-8104, 01-203-8104, 5950012038104, 102727036, 012038104
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 MAR 1985 | 01-203-8104 | 06338 ( COIL, RADIO FREQUENCY ) |

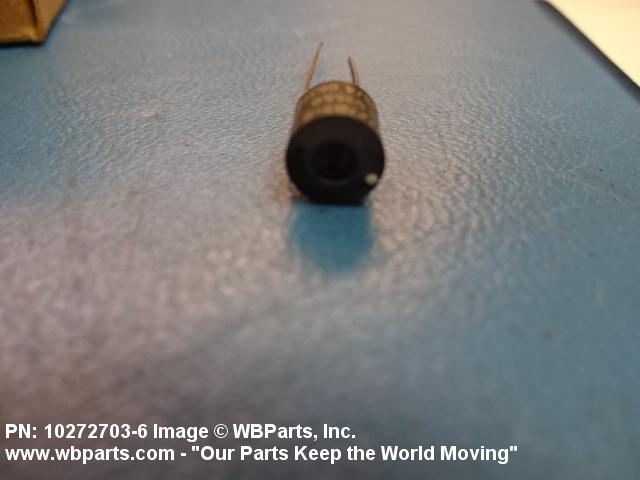

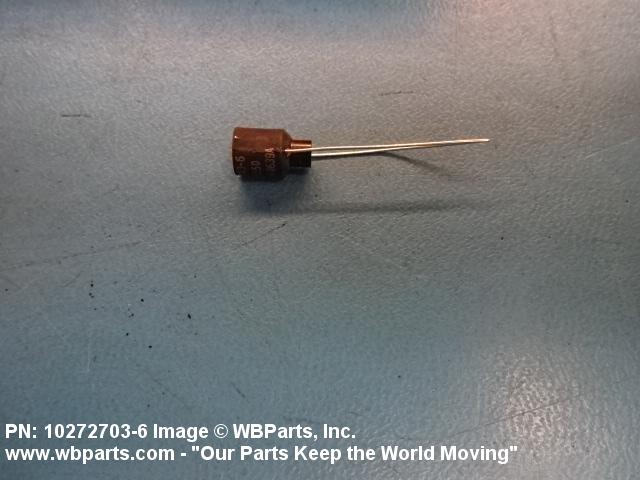

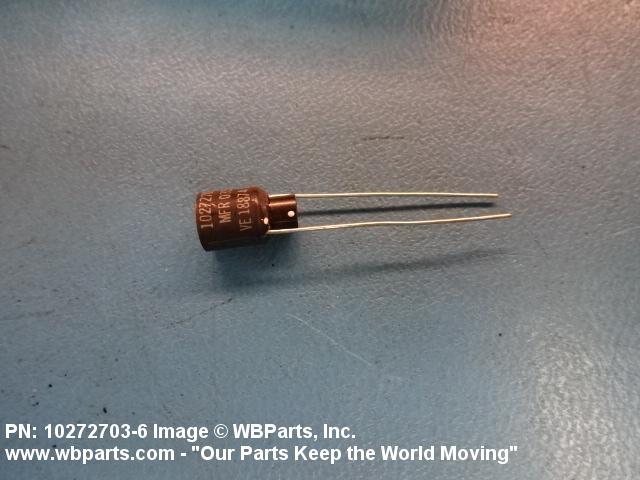

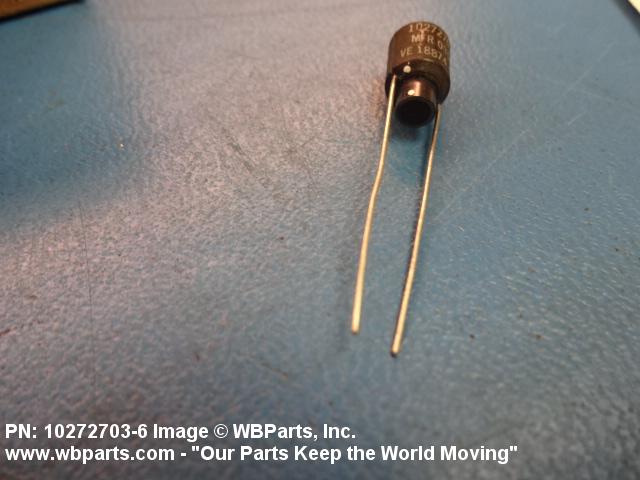

Drawings & Photos | NSN 5950-01-203-8104
Demand History | NSN 5950-01-203-8104
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 18874 | 2024-04-04 | 31 | DIBBS |
| 18874 | 2022-04-14 | 31 | DIBBS |
| 18874 | 2021-05-23 | 12 | DIBBS |
| 18874 | 2019-11-25 | 18 | DIBBS |
| 18874 | 2019-11-13 | 18 | DIBBS |
| 5950-01-203-8104 | 2019-04-08 | 11 | us |
| 18874 | 2019-03-14 | 11 | DIBBS |
| 18874 | 2019-01-15 | 4 | DIBBS |
| 18874 | 2019-01-03 | 4 | DIBBS |
| 5950-01-203-8104 | 2015-03-09 | 17 | DIBBS |
| 5950-01-203-8104 | 2014-10-09 | 7 | DIBBS |
| 5950-01-203-8104 | 2014-09-28 | 7 | DIBBS |
| 5950-01-203-8104 | 2014-08-11 | 28 | DIBBS |
| 5950-01-203-8104 | 2014-07-31 | 7 | DIBBS |
| 5950-01-203-8104 | 2014-06-23 | 4 | DIBBS |
| 5950-01-203-8104 | 2014-06-10 | 4 | DIBBS |
| 5950-01-203-8104 | 2013-01-23 | 2 | DIBBS |
| 5950-01-203-8104 | 2013-01-08 | 10 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5950-01-203-8104
5950-01-203-8492, 5950-01-203-8493, 5950-01-203-8494, 5950-01-203-8495, 5950-01-203-8496
Technical Data | NSN 5950-01-203-8104
| Characteristic | Specifications |
|---|---|
| DC RESISTANCE RATING IN OHMS | 0.260 SINGLE COMPONENT SINGLE WINDING |
| INDUCTANCE RATING | 0.68 MICROHENRIES NOMINAL SINGLE COMPONENT SINGLE WINDING |
| QUALITY FACTOR | 60 MINIMUM SINGLE COMPONENT SINGLE WINDING |
| (NON-CORE DATA) FREQUENCY AT WHICH INDUCTANCE AND QUALITY FACTOR APPLIES | 25.0 MEGAHERTZ SINGLE COMPONENT SINGLE WINDING |
| OVERALL LENGTH | 0.375 INCHES MINIMUM AND 0.499 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.250 INCHES NOMINAL |
| TEST DATA DOCUMENT | 18876-10272703 DRAWING |
| III MAXIMUM OPERATING TEMP | 71.0 DEG CELSIUS |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT |
Restrictions/Controls & Freight Information | NSN 5950-01-203-8104
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5950-01-203-8104
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
