NSN 5950-01-211-1794 PE 5266, PE5266, 138C185H03

Product Details | PULSE TRANSFORMER


5950-01-211-1794 A transformer designed to transfer pulses of nonsinusoidal wave forms between circuits without basically changing the wave forms.

Part Alternates: PE 5266, PE5266, 138C185H03, 39903, 3990-3, 5950-01-211-1794, 01-211-1794, 5950012111794, 012111794

Electrical and Electronic Equipment Components | Coils and Transformers

Supply Group (FSG) NSN Assign. NIIN
59 21 JUN 1985 01-211-1794

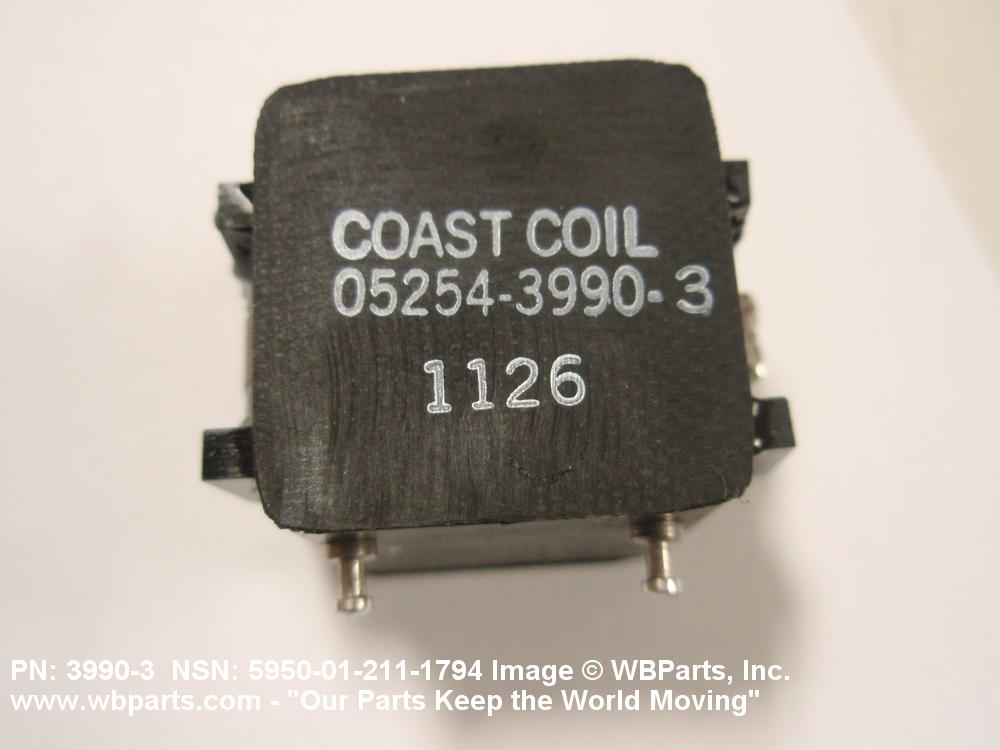

Drawings & Photos | NSN 5950-01-211-1794



Demand History | NSN 5950-01-211-1794


Part Number Request Date QTY Origin
5950-01-211-1794 2022-02-23 1 Serbia
138C185H03 2012-01-30 10 United States
39903 2011-02-23 5 United States
5950-01-211-1794 2010-01-13 1 US
5950-01-211-1794 2007-07-27 6 US
138C185H03 2007-06-12 6 US

Cross Reference | NSN 5950-01-211-1794


Part Number Cage Code Manufacturer
138C185H03 97942 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
3990-3 05254 AMI/COAST MAGNETICS INC. DBA COAST MAGNETICS
PE 5266 01961 PULSE ENGINEERING INC

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5950-01-211-1794


Restrictions/Controls & Freight Information | NSN 5950-01-211-1794


Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Category Code Description
NMF Description 063420 TRANSFORMERS,NOI,OR TRANSFORMER PAR
Less than car load rating P 77.5
Less than truck load rating W Rating Variable
Water commodity Code 595 unknown
Originating Activity Code 9Z DLIS-K
Battle Creek, MI 49037-3084
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code Z unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
