NSN 5950-01-290-1254 EP1019, EP1019A, EP1019C
Product Details | PULSE TRANSFORMER

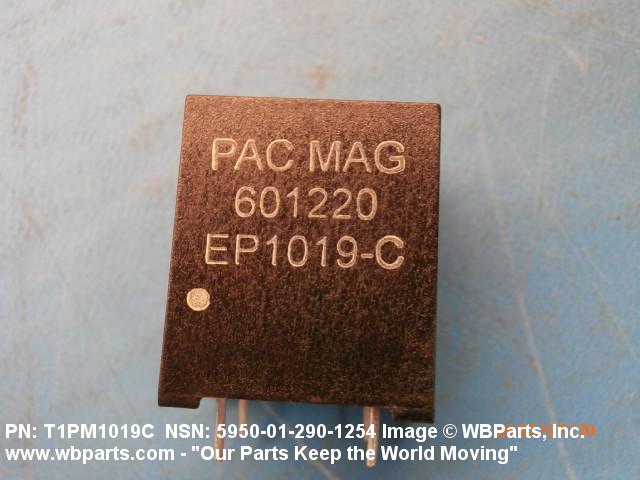

5950-01-290-1254 A transformer designed to transfer pulses of nonsinusoidal wave forms between circuits without basically changing the wave forms.
Part Alternates: EP1019, EP1019A, EP1019C, 5950-01-290-1254, 01-290-1254, 5950012901254, 012901254
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 DEC 1988 | 01-290-1254 | 00208 ( TRANSFORMER, PULSE ) |

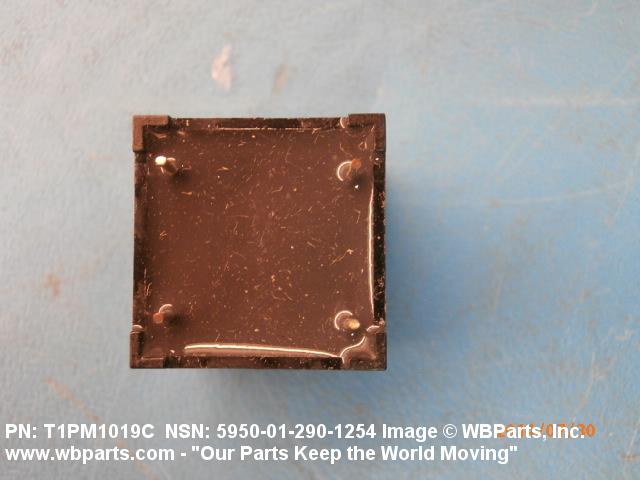

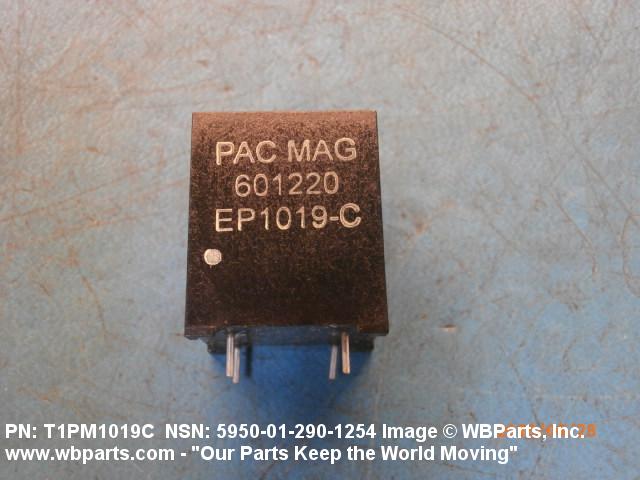

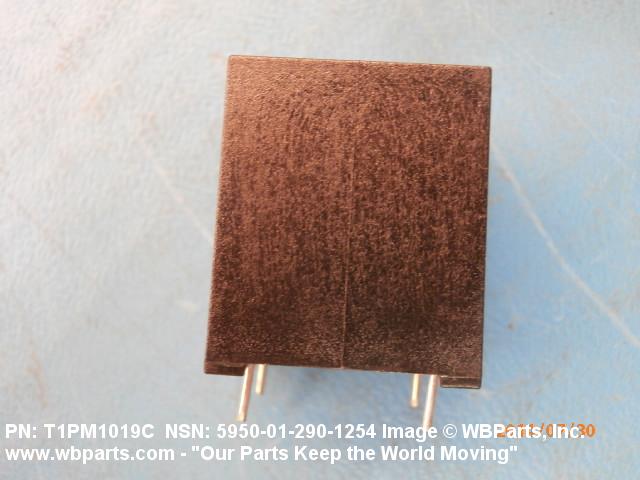

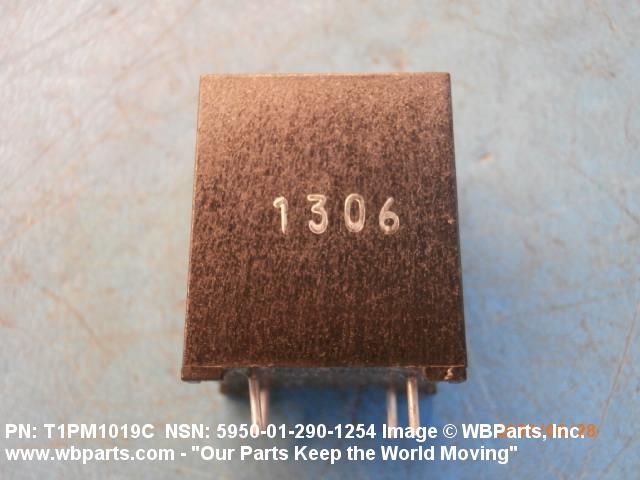

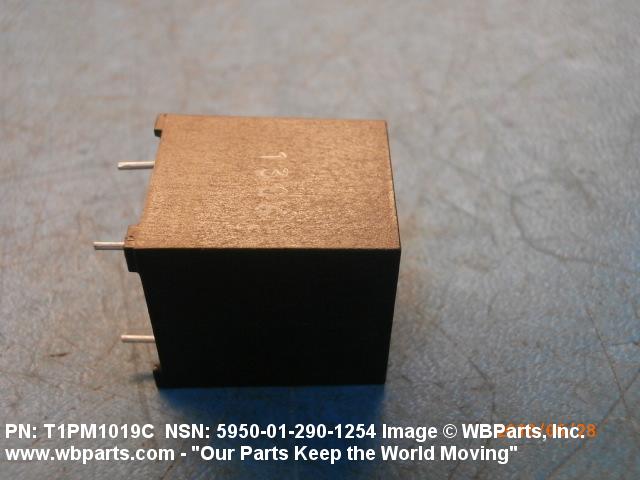

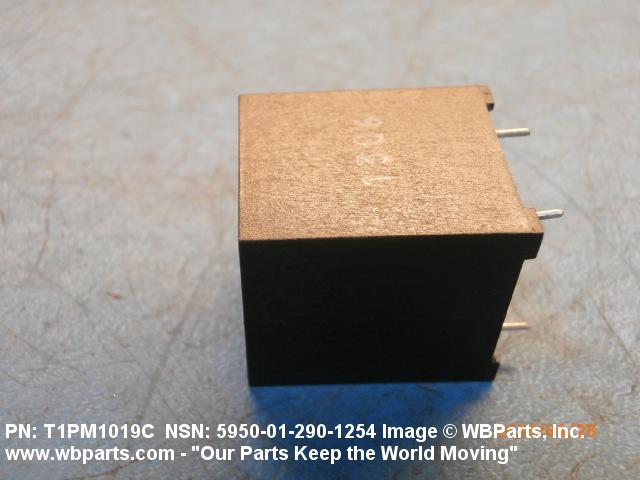

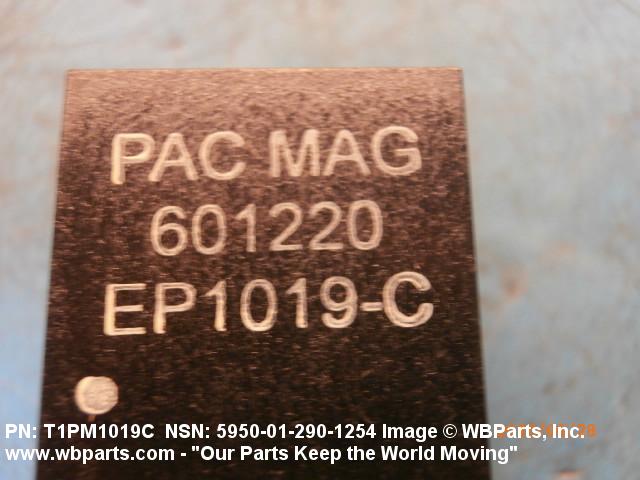

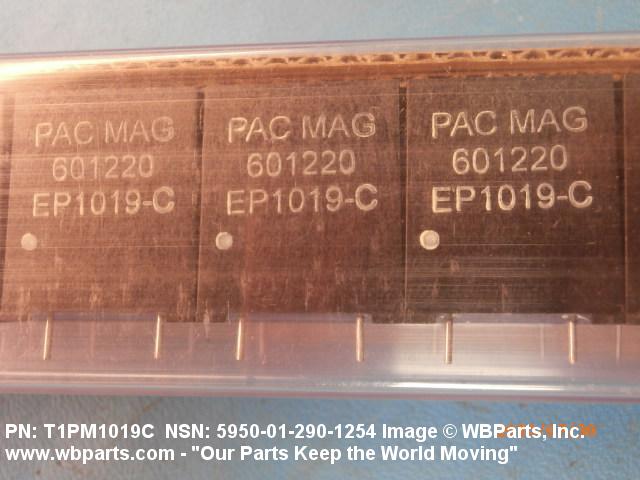

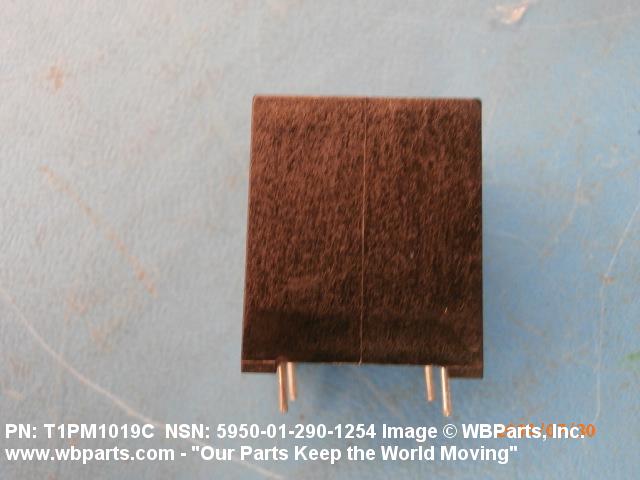

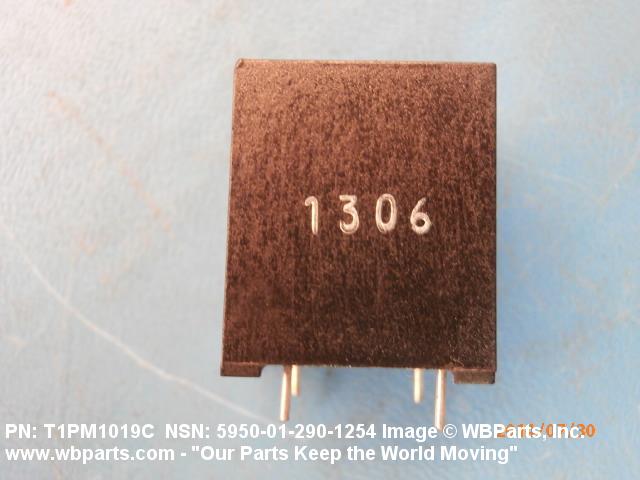

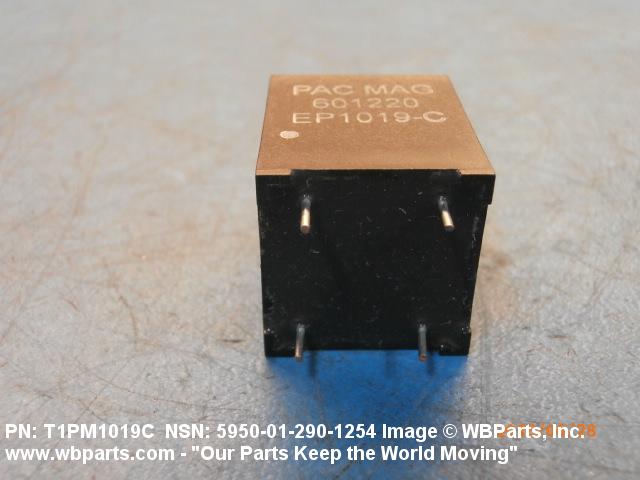

Drawings & Photos | NSN 5950-01-290-1254
Demand History | NSN 5950-01-290-1254
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-01-290-1254 | 2025-09-258 | 2 | US |
| 5950-01-290-1254 | 2025-01-13 | 2 | MX |
| 5950-01-290-1254 | 2019-10-280 | 2 | US |
| 5950-01-290-1254 | 2019-07-204 | 5 | MX |
| EP1019C | 2019-07-203 | 12 | AR |
| 5950-01-290-1254 | 2019-06-156 | 3 | US |
| 5950-01-290-1254 | 2018-12-347 | 1 | AU |
| 5950-01-290-1254 | 2018-11-320 | 12 | US |
| 5950-01-290-1254 | 2018-06-159 | 1 | United States |
| 5950-01-290-1254 | 2016-12-354 | 6 | US |
| 5950-01-290-1254 | 2014-07-199 | 15 | Czech Republic |
| 5950-01-290-1254 | 2014-05-133 | 15 | CZ |
| EP1019C | 2013-10-291 | 4 | US |
| 5950-01-290-1254 | 2013-01-22 | 5 | NZ |
| EP1019C | 2012-11-334 | 6 | US |
| 5950-01-290-1254 | 2012-10-292 | 1 | CN |
| EP1019C | 2012-05-143 | 10 | United States |
| 5950-01-290-1254 | 2011-09-262 | 10 | Saudi Arabia |
| 5950-01-290-1254 | 2010-12-350 | 12 | CA |
| EP1019C | 2007-09-254 | 120 | China |
| EP1019C | 2007-04-116 | 12 | China |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5950-01-290-1254
Related Products | NSN 5950-01-290-1254
Technical Data | NSN 5950-01-290-1254
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 4 PIN |
| WINDING OPERATING VOLTAGE | 15.00 AC VOLTS NOMINAL SINGLE COMPONENT SINGLE PRIMARY |
| WINDING OPERATING CURRENT | 2.0 AMPERES DC NOMINAL SINGLE COMPONENT SINGLE SECONDARY |
| INDUCTANCE RATING | 3.00 MILLIHENRIES NOMINAL SINGLE COMPONENT SINGLE PRIMARY |
| FREQUENCY RATING | 23.0 KILOHERTZ NOMINAL SINGLE COMPONENT |
| PRIMARY TO SECONDARY TURN RATIO | 1 TO 2 SINGLE COMPONENT |
| (NON-CORE DATA) PULSE RISE TIME IN MICROSECONDS | 0.500 SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 PRIMARY AND 1 SECONDARY SINGLE COMPONENT |
| MOUNTING METHOD | TERMINAL SINGLE GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |

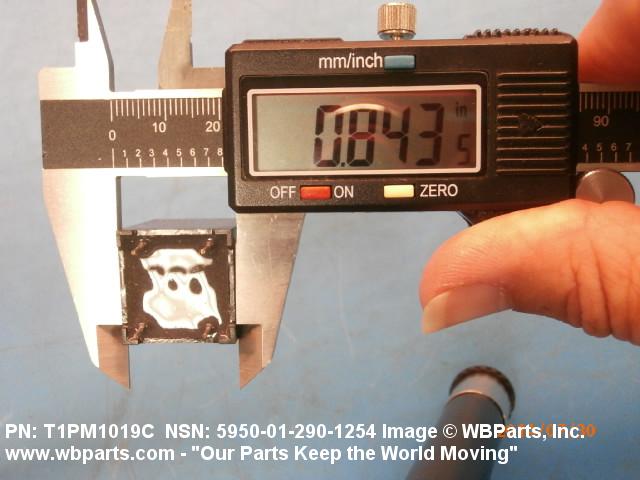

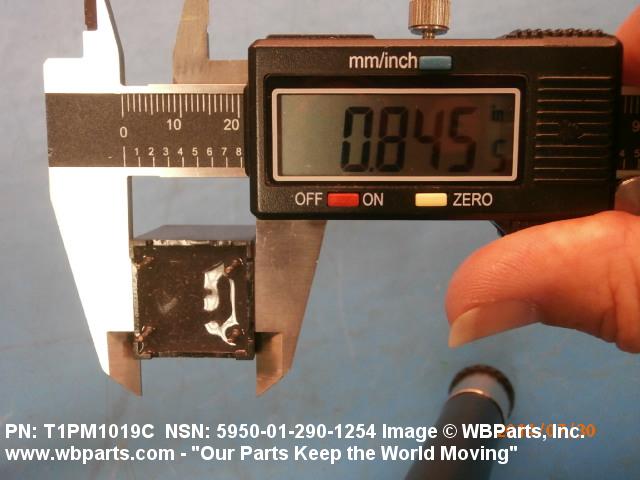

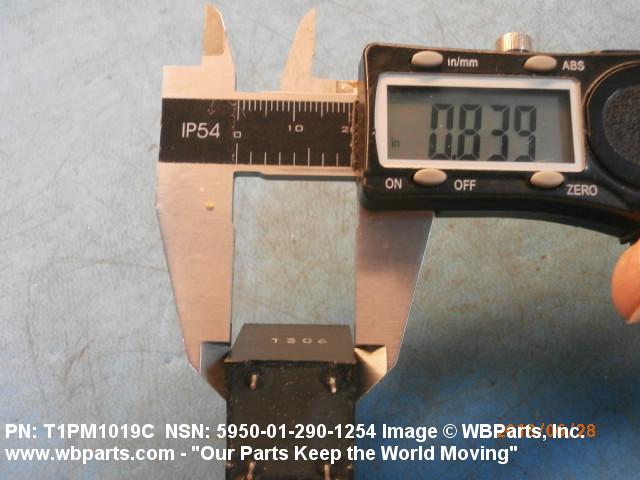

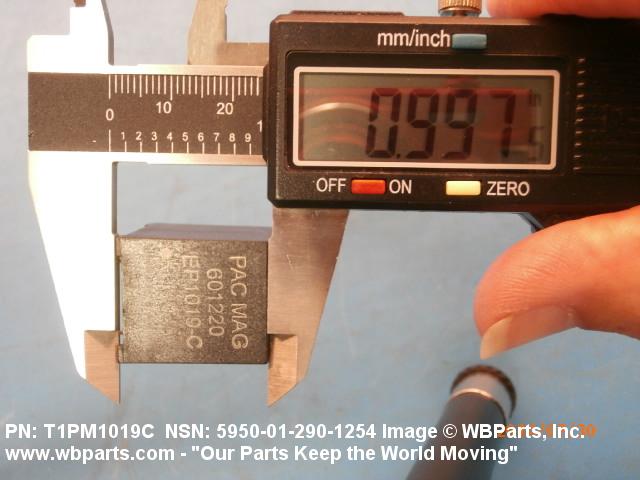

| BODY LENGTH | 0.850 INCHES MAXIMUM |
