NSN 5950-01-297-8820 C883915, C8839-15, X1426

Product Details | PULSE TRANSFORMER

5950-01-297-8820 A transformer designed to transfer pulses of nonsinusoidal wave forms between circuits without basically changing the wave forms.

Part Alternates: C883915, C8839-15, X1426, X-1426, 5008150001, 5008150-001, 9316, 9-316, 5950-01-297-8820, 01-297-8820, 5950012978820, 012978820

Electrical and Electronic Equipment Components | Coils and Transformers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	07 APR 1989	01-297-8820	00208 ( TRANSFORMER, PULSE )

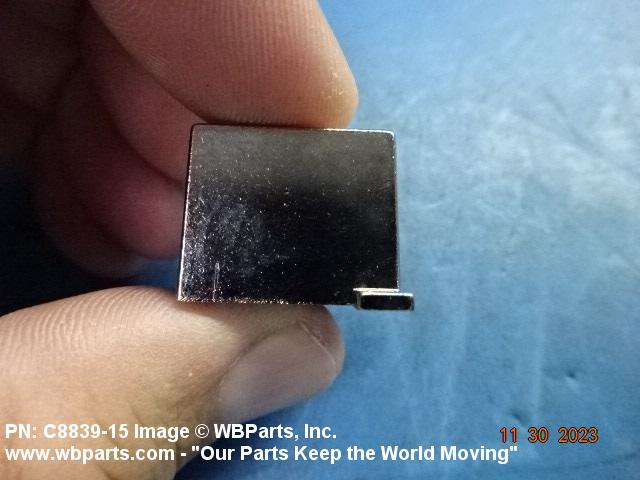

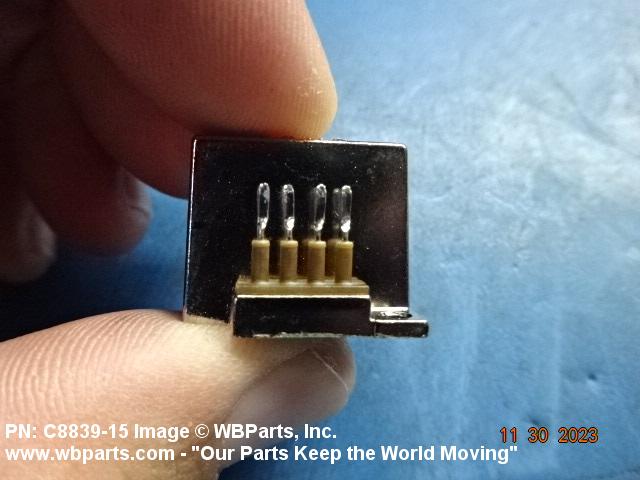

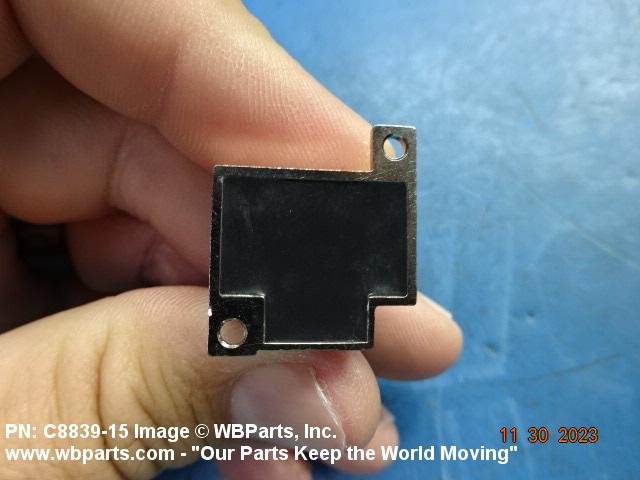

Drawings & Photos | NSN 5950-01-297-8820

Part Number	Request Date	QTY	Origin
9316	2024-07-206	1	Malaysia
C883915	2023-10-304	8	Singapore
5950-01-297-8820	2023-10-276	8	Singapore
9-316	2023-04-107	59	DIBBS
C8839-15	2023-04-107	59	DIBBS
X-1426	2023-04-107	59	DIBBS
9-316	2023-04-96	59	DIBBS
C8839-15	2023-04-96	59	DIBBS
X-1426	2023-04-96	59	DIBBS
9-316	2022-08-221	57	DIBBS
C8839-15	2022-08-221	57	DIBBS
X-1426	2022-08-221	57	DIBBS
9-316	2022-07-202	57	DIBBS
C8839-15	2022-07-202	57	DIBBS
X-1426	2022-07-202	57	DIBBS
9-316	2021-09-271	27	DIBBS
C8839-15	2021-09-271	27	DIBBS
X-1426	2021-09-271	27	DIBBS
5950-01-297-8820	2016-03-68	105	DIBBS
5950-01-297-8820	2015-07-202	199	DIBBS
5950-01-297-8820	2014-11-323	105	DIBBS
5950-01-297-8820	2014-03-90	65	DIBBS
5950-01-297-8820	2011-06-180	4	US
5950-01-297-8820	2009-07-211	59	DIBBS
5950-01-297-8820	2009-05-122	52	DIBBS
5950-01-297-8820	2008-11-318	30	DIBBS
5950-01-297-8820	2008-10-301	15	DIBBS
5950-01-297-8820	2008-08-231	5	DIBBS
5950-01-297-8820	2008-01-08	68	DIBBS
C883915	2007-09-261	25	United States
5950-01-297-8820	2007-08-242	50	DIBBS

Cross Reference | NSN 5950-01-297-8820

Part Number	Cage Code	Manufacturer
5008150-001	2J622	SCI TECHNOLOGY, INC. DIV DEFENSE AND AEROSPACE SYSTEMS
9-316	52797	AUTOMATION PRODUCTS GROUP, INC.
C8839-15	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
X-1426	90095	PULSE ELECTRONICS CORPORATION DBA PULSE COMPONENTS DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5950-01-297-8820

Compare

Related Products | NSN 5950-01-297-8820

5950-01-297-9478, 5950-01-297-9498, 5950-01-297-9664, 5950-01-298-0288, 5950-01-298-0337

Technical Data | NSN 5950-01-297-8820

Characteristic	Specifications
TERMINAL TYPE AND QUANTITY	4 STANDOFF, SOLDER LUG
DC RESISTANCE RATING IN OHMS	53.600 SINGLE COMPONENT SINGLE PRIMARY
IMPEDANCE RATING IN OHMS	3000.0 MINIMUM SINGLE COMPONENT SINGLE PRIMARY
FREQUENCY RATING	1.0 MEGAHERTZ NOMINAL SINGLE COMPONENT
PRIMARY TO SECONDARY TURN RATIO	1 TO 1 SINGLE COMPONENT
WINDING FUNCTION AND QUANTITY	1 PRIMARY AND 1 SECONDARY SINGLE COMPONENT
MOUNTING METHOD	FLANGE AND UNTHREADED HOLE SINGLE GROUP
MOUNTING FACILITY QUANTITY	2 SINGLE GROUP
MOUNTING HOLE DIAMETER	0.090 INCHES NOMINAL SINGLE GROUP
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	0.800 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	0.680 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP
INCLOSURE TYPE	FULLY INCLOSED
OVERALL LENGTH	1.000 INCHES MAXIMUM
OVERALL HEIGHT	0.750 INCHES MAXIMUM
OVERALL WIDTH	0.880 INCHES MAXIMUM
FEATURES PROVIDED	TINNED WIRE LEADS
RELIABILITY INDICATOR	NOT ESTABLISHED
III MAXIMUM OPERATING TEMP	125.0 DEG CELSIUS
(NON-CORE DATA) CUBIC MEASURE	0.7 CUBIC INCHES

Restrictions/Controls & Freight Information | NSN 5950-01-297-8820

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	063420	TRANSFORMERS,NOI,OR TRANSFORMER PAR
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	595	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5950-01-297-8820

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
