NSN 5961-00-232-3279 A2X871, AP106346M, HP50822800

Product Details | DIODE SEMICONDUCTOR DEVICE

5961-00-232-3279 A two electrode semiconductor device having an asymmetrical voltage - current characteristic. May or may not include mounting hardware and/or heatsink. Excludes LIGHT EMITTING DIODE and SEMICONDUCTOR DEVICE,PHOTO. For items containing material such as selenium and copper oxide, see RECIFIER, METALLIC.

Part Alternates: A2X871, AP106346M, HP50822800, HP5082-2800, SM301F070220G, SM301-F-070-220G, SS102221, SS10222-1, VA7000361, VA70-0036-1, JAN1N5711, JAN1N57111, JAN1N5711-1, JAN1N5711A, JANHP50822800, JANHP5082-2800, MIL-PRF-19500/444, MILPRF19500444, MIL-S-19500/444, MILS19500444, PS202481, Q68000A3614Z, RNR55C9760FP, 5M.5532.222.93, 5M553222293, 610065, 642AS26681, 642AS2668-1, 7726041, 772604-1, 8481520001, 848152-0001, 8481730001, 848173-0001, 8887101, 88871-01, 9250951, 925095-1, 99078290, 12057-0001, 12522800, 1-252-2800, 1670270, 167-0270, 1813234, 1865315, 1N5711, 1N5711JANTX, 23610381, 2361-0381 , 23873241, 2387324-1, 0937, 100442, 2710006-00, 34507251, 3450725-1, 415/4/98532, 4178600595, 4178600-595, 43912003500, 43912003-500, 44321 00110, 4432100110, 44397 28143, 4439728143, 4586563, 5041707, 5041-707, 50822857, 5082-2857, 50828327, 5082-8327, 565205, 5961-00-232-3279, 00-232-3279, 5961002323279, 002323279, 120570001, 415498532, 271000600

Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	27 MAY 1973	00-232-3279	20589 ( SEMICONDUCTOR DEVICE, DIODE )

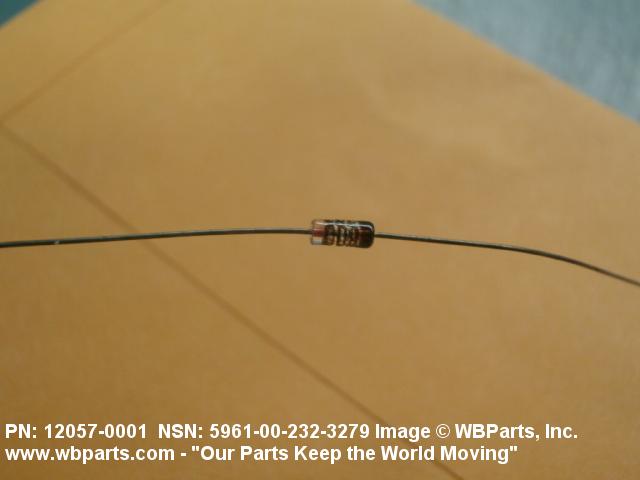

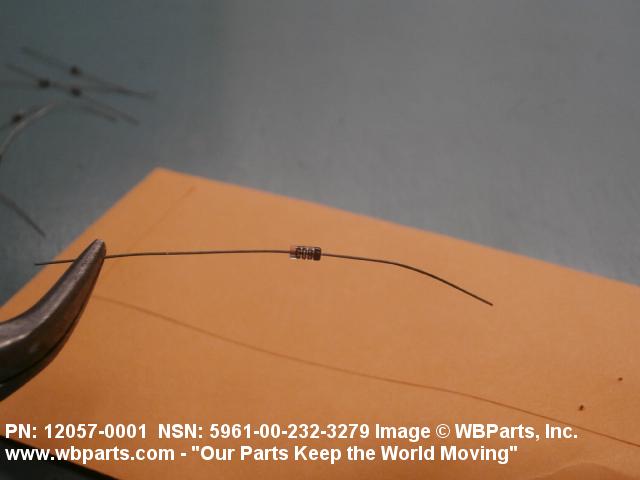

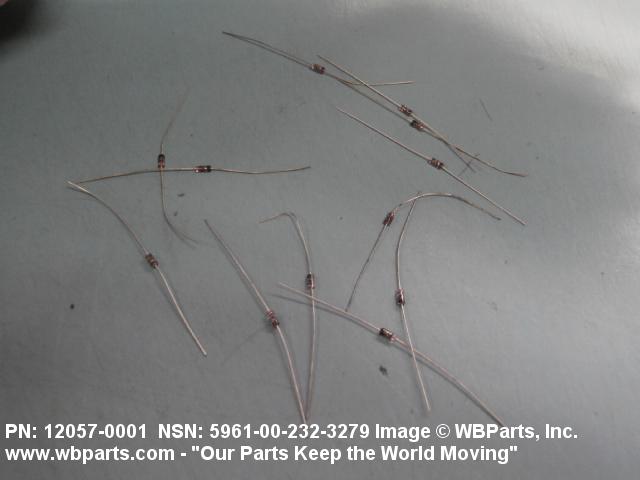

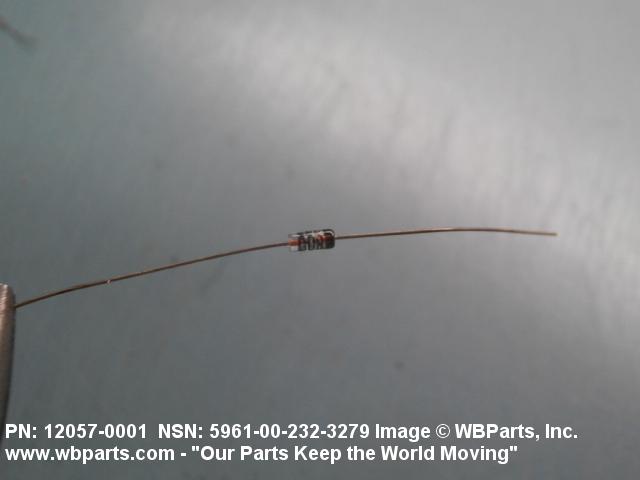

Drawings & Photos | NSN 5961-00-232-3279

Part Number	Request Date	QTY	Origin	SBA
5961-00-232-3279	2014-01-06	11	Taiwan
5961-00-232-3279	2007-12-362	250	DIBBS

Cross Reference | NSN 5961-00-232-3279

Part Number	Cage Code	Manufacturer
0937	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
1-252-2800	K4190	CIMTEK UK LTD
100442	52542	SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV
12057-0001	27914	HONEYWELL INTERNATIONAL INC DBA HONEYWELL
167-0270	54817	AUTEK SYSTEMS CORP
1813234	K1384	RACAL RADAR DEFENCE SYSTEMS LTD
1813234	U4338	THALES UK LIMITED DBA THALES UK LTDDEFENCE MISSION SYSTEMS
1865315	K1384	RACAL RADAR DEFENCE SYSTEMS LTD
1865315	U4338	THALES UK LIMITED DBA THALES UK LTDDEFENCE MISSION SYSTEMS
1N5711	07688	JOINT ELECTRON DEVICE ENGINEERING COUNCIL
1N5711JANTX	K3464	HEWLETT-PACKARD LTD
2361-0381	K0216	THALES OPTRONICS LIMITED
2361-0381	U1746	THALES OPTRONICS TAUNTON LTD
2387324-1	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
2710006-00	34257	EIP MICROWAVE INC
3450725-1	93346	SENSOR AND ANTENNA SYSTEMS, LANSDALE, INC.
415/4/98532	K4547	SIEMENS AIR TRAFFIC MANAGEMENT
4178600-595	05869	RAYTHEON COMPANY DBA RAYTHEON
43912003-500	D9444	HONEYWELL REGELSYSTEME GMBHGESCHAEFTSBEREICH SONDERTECHNIK
44321 00110	D8385	THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH
44397 28143	D8385	THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH
4586563	D0894	ROHDE & SCHWARZ GMBH & CO. KG
5041-707	05869	RAYTHEON COMPANY DBA RAYTHEON
5082-2857	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
5082-8327	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
565205	D0327	SELEX COMMUNICATIONS GMBH
5961002323279	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5M.5532.222.93	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
610065	33013	LOGIMETRICS INC
642AS2668-1	30003	NAVAL AIR SYSTEMS COMMAND
772604-1	96214	RAYTHEON COMPANY DBA RAYTHEON
848152-0001	65597	THALES DEFENSE & SECURITY, INC.
848173-0001	65597	THALES DEFENSE & SECURITY, INC.
88871-01	K1182	THALES UK LIMITED DBA THALES UK LTDTRAINING AND SIMULATION
925095-1	82577	RAYTHEON COMPANY DBA RAYTHEON
99078290	F6481	THALES SA
A2X871	21847	FEI MICROWAVE INC
AP106346M	34309	GIORDANO ASSOCIATES INC
HP5082-2800	K3464	HEWLETT-PACKARD LTD
JAN1N5711	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
JAN1N5711	C1904	HEWLETT PACKARD GMBH
JAN1N5711-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
JAN1N5711A	C7191	ADELCO ELEKTRONIK GMBH
JANHP5082-2800	C1904	HEWLETT PACKARD GMBH
MIL-PRF-19500/444	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-19500/444	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
PS202481	K2555	G E C MARCONI COMMUNICATIONS LTD
PS202481	U2248	SELEX ES LTD
Q68000A3614Z	C0426	AIRBUS DEFENCE AND SPACE GMBHELECTRONICS
RNR55C9760FP	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SM301-F-070-220G	K0268	RAYTHEON SYSTEMS LTD
SS10222-1	K2555	G E C MARCONI COMMUNICATIONS LTD
SS10222-1	U2248	SELEX ES LTD
VA70-0036-1	K0668	SELEX ES LTD DBA SELEX S & A S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5961-00-232-3279

Compare

Related Products | NSN 5961-00-232-3279

5961-00-232-3297, 5961-00-232-3304, 5961-00-232-3350, 5961-00-232-3358, 5961-00-232-3367

Technical Data | NSN 5961-00-232-3279

Characteristic	Specifications
SEMICONDUCTOR MATERIAL	SILICON
VOLTAGE RATING IN VOLTS PER CHARACTERISTIC	50.0 MAXIMUM WORKING PEAK REVERSE VOLTAGE
CURRENT RATING PER CHARACTERISTIC	33.00 MILLIAMPERES MAXIMUM AVERAGE FORWARD CURRENT AVERAGED OVER A FULL 60-HZ CYCLE
MAXIMUM OPERATING TEMP PER MEASUREMENT POINT	150.0 DEG CELSIUS JUNCTION
INCLOSURE MATERIAL	GLASS
MOUNTING METHOD	TERMINAL
TERMINAL LENGTH	1.000 INCHES MINIMUM AND 1.250 INCHES MAXIMUM
TERMINAL TYPE AND QUANTITY	2 UNINSULATED WIRE LEAD
OVERALL LENGTH	0.150 INCHES MINIMUM AND 0.170 INCHES MAXIMUM
OVERALL DIAMETER	0.068 INCHES MINIMUM AND 0.076 INCHES MAXIMUM
FEATURES PROVIDED	HERMETICALLY SEALED CASE
TEST DATA DOCUMENT	81349-MIL-S-19500 SPECIFICATION
(NON-CORE DATA) SPECIFICATION/STANDARD DATA	81349-MIL-S-19500/444 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	JAN1N5711-1
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-19500/444
