NSN 5961-00-412-0908 MR1245FLR, 00-412-0908, 004120908
Product Details | DIODE SEMICONDUCTOR DEVICE
5961-00-412-0908 A two electrode semiconductor device having an asymmetrical voltage - current characteristic. May or may not include mounting hardware and/or heatsink. Excludes LIGHT EMITTING DIODE and SEMICONDUCTOR DEVICE,PHOTO. For items containing material such as selenium and copper oxide, see RECIFIER, METALLIC.
Part Alternates: MR1245FLR, 5961-00-412-0908, 00-412-0908, 5961004120908, 004120908
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 APR 1970 | 00-412-0908 | 20589 ( SEMICONDUCTOR DEVICE, DIODE ) |

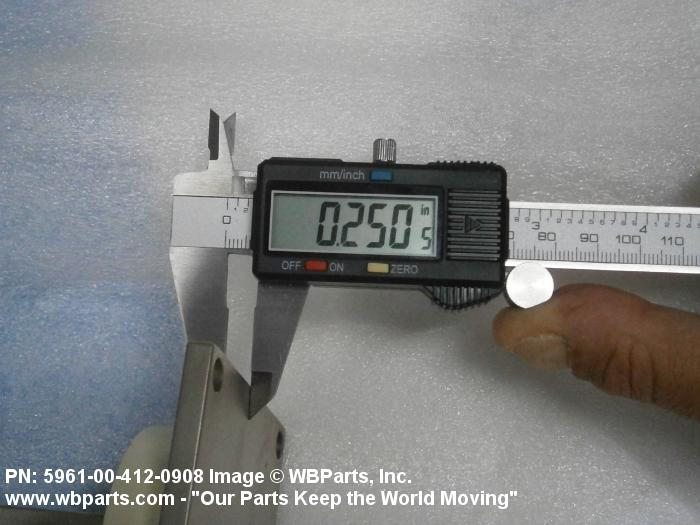

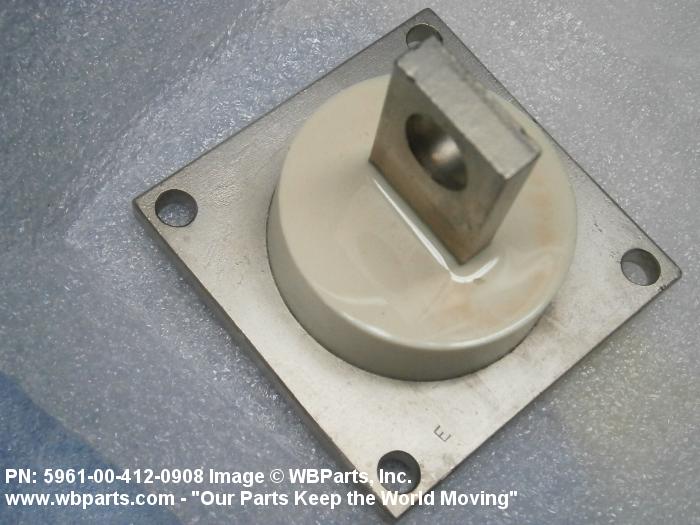

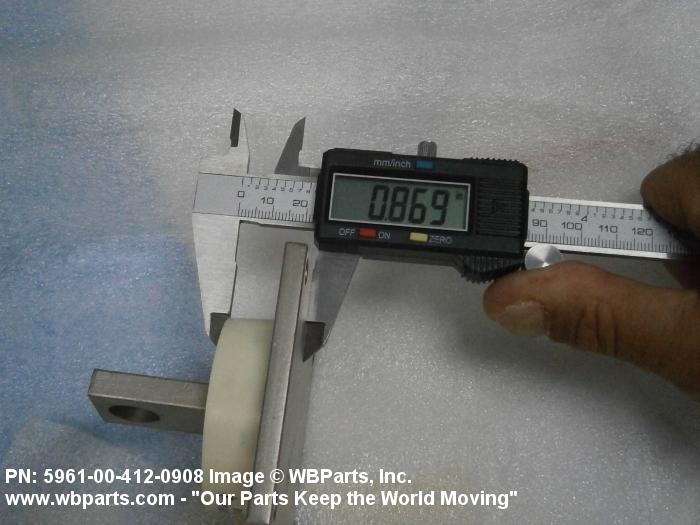

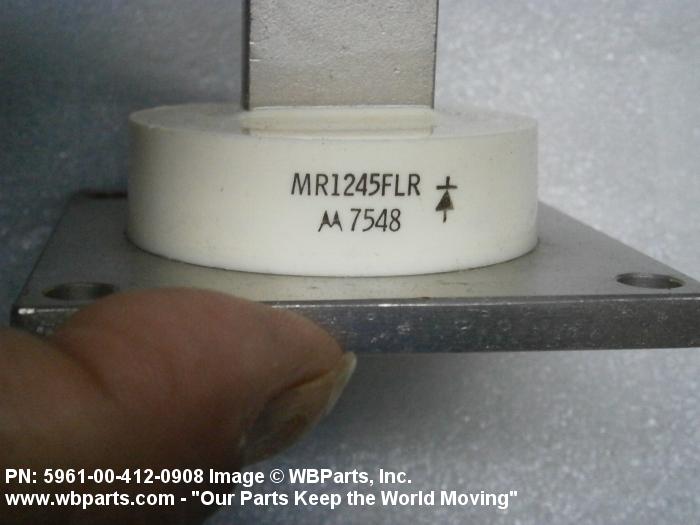

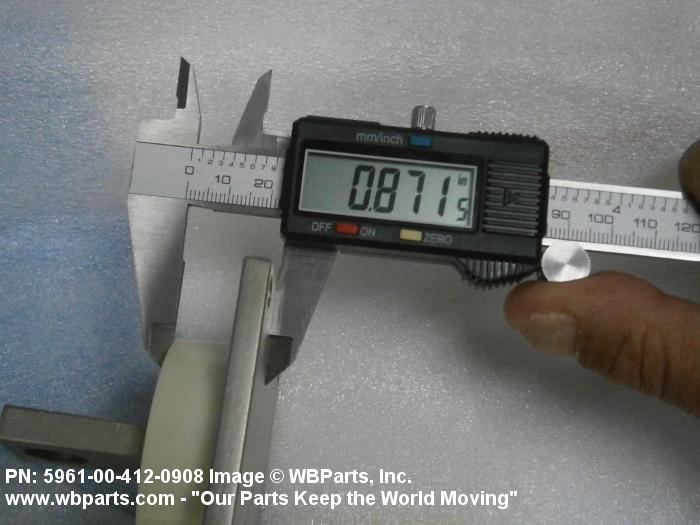

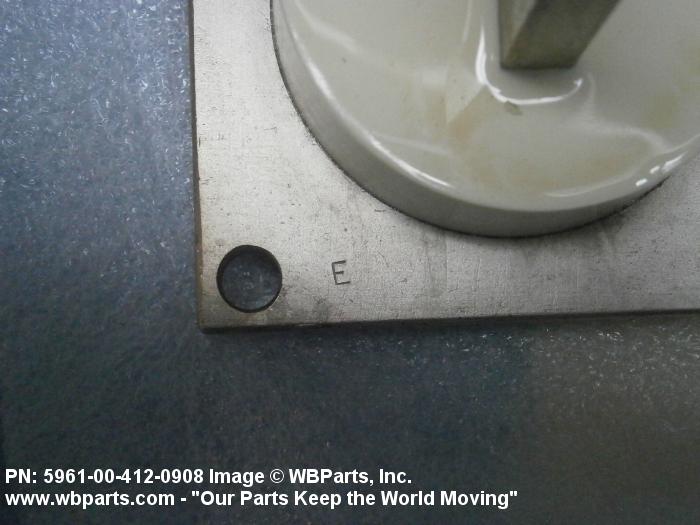

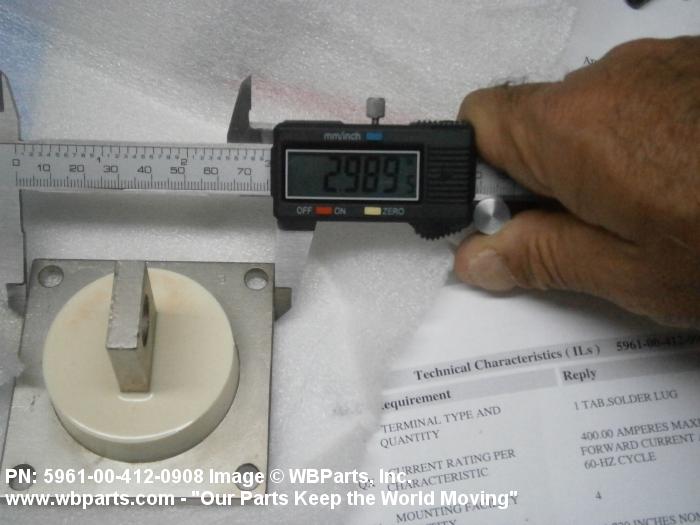

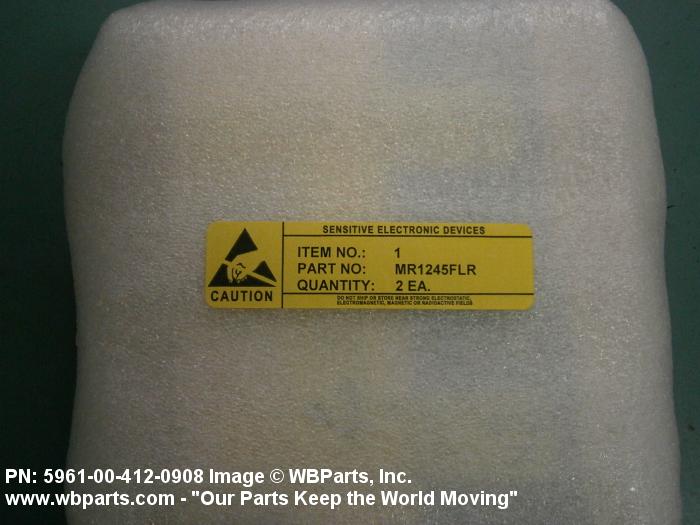

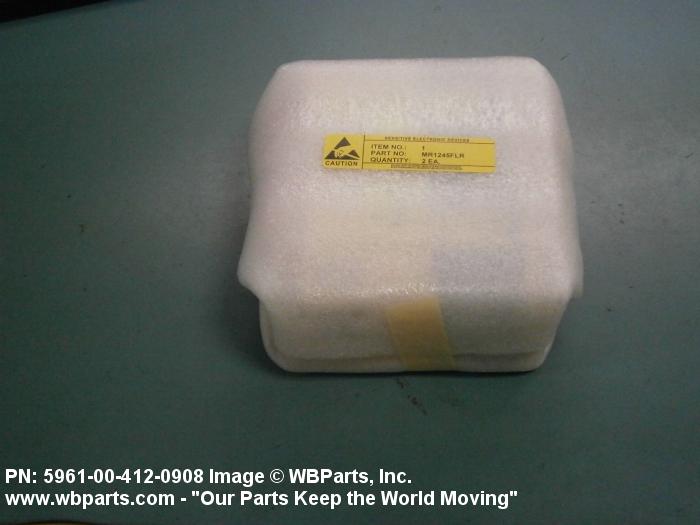

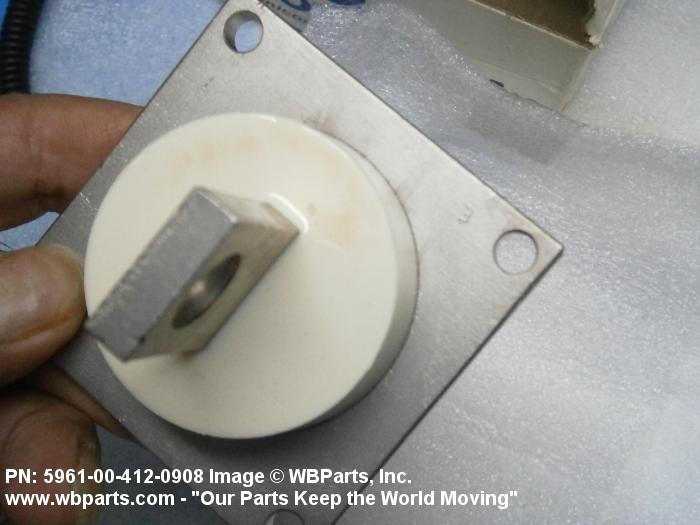

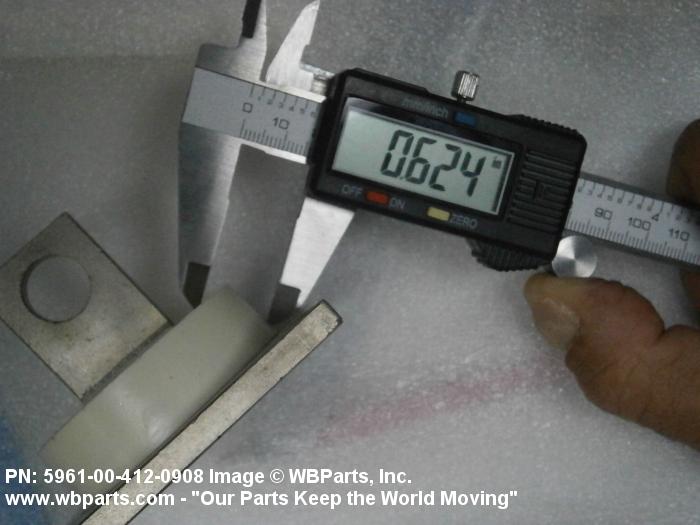

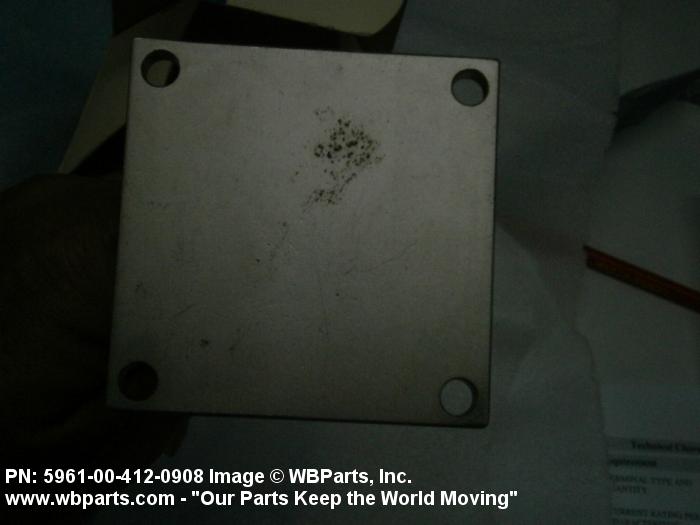

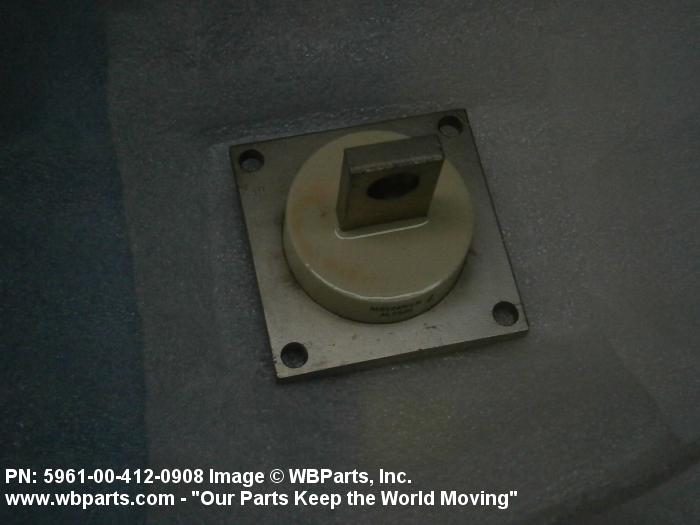

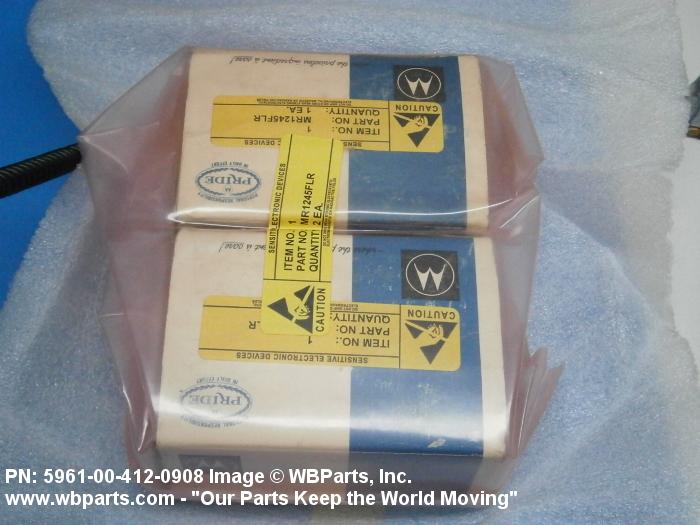

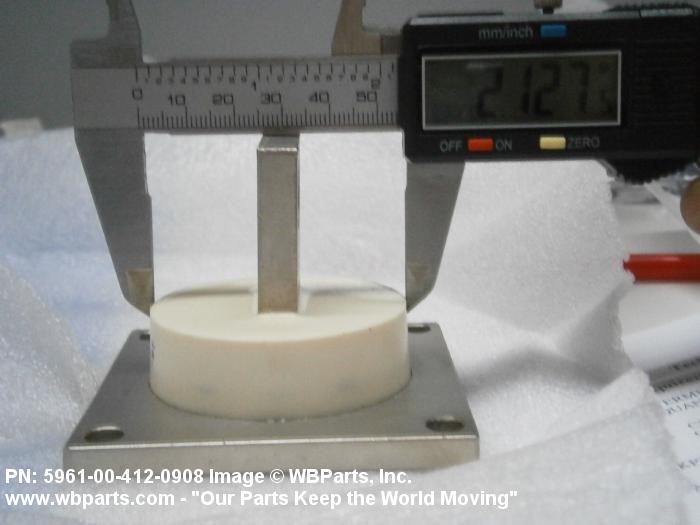

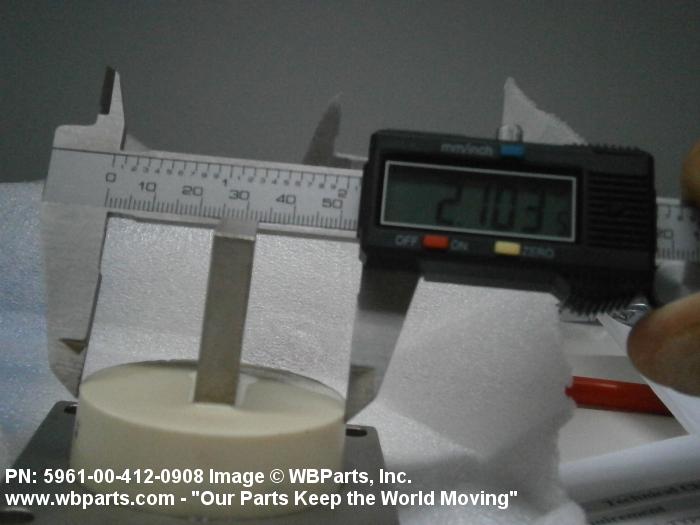

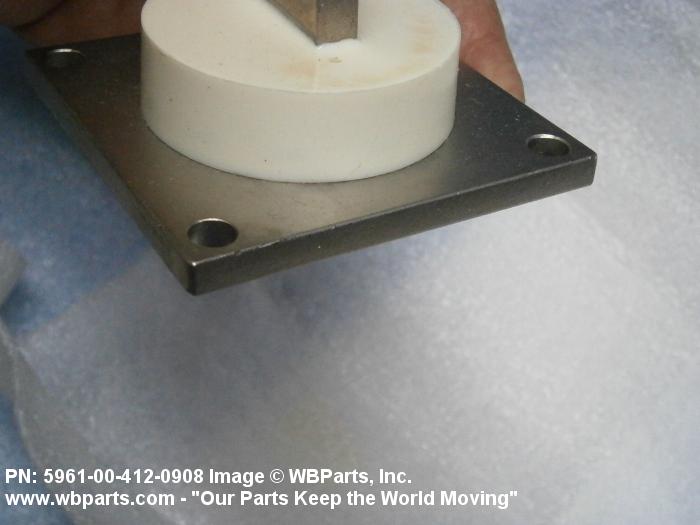

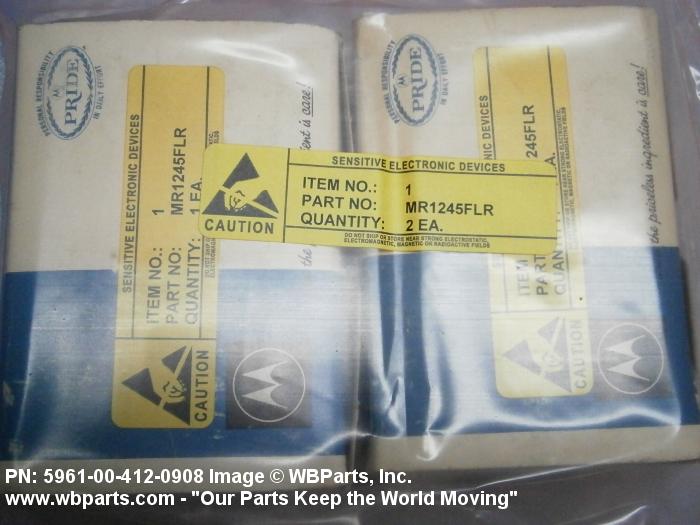

Drawings & Photos | NSN 5961-00-412-0908
Demand History | NSN 5961-00-412-0908
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-00-412-0908 | 2013-08-217 | 2 | United States |
| 5961-00-412-0908 | 2013-08-213 | 1 | US |
| MR1245FLR | 2011-02-49 | 3 | CA |
Cross Reference | NSN 5961-00-412-0908
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MR1245FLR | 04713 | FREESCALE SEMICONDUCTOR, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-00-412-0908
Technical Data | NSN 5961-00-412-0908
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 300.0 MAXIMUM REVERSE VOLTAGE, PEAK |
| CURRENT RATING PER CHARACTERISTIC | 400.00 AMPERES MAXIMUM AVERAGE FORWARD CURRENT AVERAGED OVER A FULL 60-HZ CYCLE |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 190.0 DEG CELSIUS JUNCTION |
| INCLOSURE MATERIAL | METAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| OVERALL LENGTH | 1.000 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.720 INCHES NOMINAL |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| SPECIAL FEATURES | 1 SNAP-ON MALE TERMINAL |
Restrictions/Controls & Freight Information | NSN 5961-00-412-0908
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
