NSN 5961-00-416-4858 CER300, IN5200, JAN1N5551
Product Details | DIODE SEMICONDUCTOR DEVICE
5961-00-416-4858 A two electrode semiconductor device having an asymmetrical voltage - current characteristic. May or may not include mounting hardware and/or heatsink. Excludes LIGHT EMITTING DIODE and SEMICONDUCTOR DEVICE,PHOTO. For items containing material such as selenium and copper oxide, see RECIFIER, METALLIC.
Part Alternates: CER300, IN5200, JAN1N5551, JANTX1N3190, JANTX1N5551, JANTX1N5551A, JANTXIN5551, MIL-PRF-19500/420, MILPRF19500420, MIL-S-19500/420, MILS19500420, QPLJANTX1N5551, QPL-JANTX1N5551, Z1442, 7611244, 76-11244, 7904865-01, 7904865-03, 8481890001, 848189-0001, 12448/34803, 1244834803, 16101038, 16101-038, 16101052, 16101-052, 1978209FN4, 1N4142, 1N5551, 3539009391, 353-9009-391, 3539019020, 353-9019-020, 3SE4, 3SM4, 4178600565, 4178600-565, 5961-00-416-4858, 00-416-4858, 5961004164858, 004164858, 790486501, 790486503
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 FEB 1972 | 00-416-4858 | 20589 ( SEMICONDUCTOR DEVICE, DIODE ) |

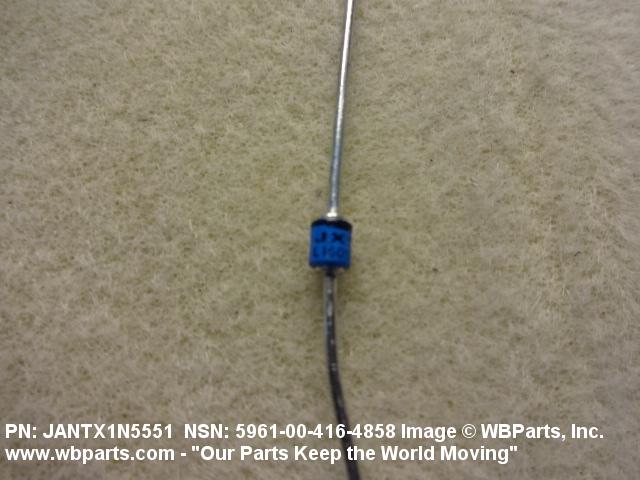

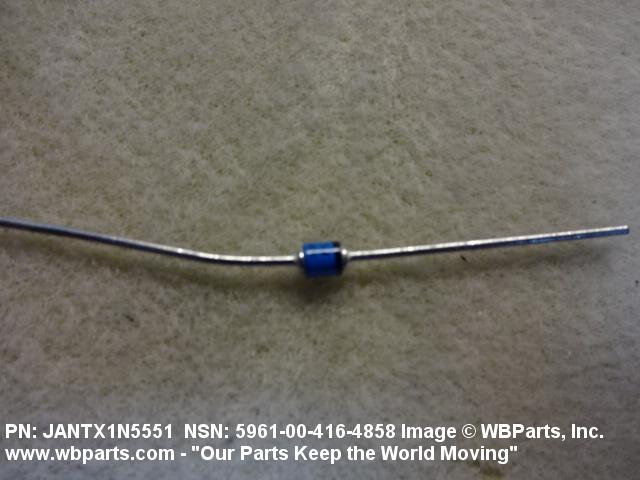

Drawings & Photos | NSN 5961-00-416-4858
Demand History | NSN 5961-00-416-4858
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-00-416-4858 | 2020-12-343 | 1520 | DIBBS |
| JANTX1N5551 | 2017-08-214 | 4 | United States |
| 5961-00-416-4858 | 2016-01-06 | 1137 | DIBBS |
| 3SM4 | 2012-10-290 | 1 | Canada |
| 5961-00-416-4858 | 2011-07-187 | 25 | US |
| 5961-00-416-4858 | 2007-04-96 | 14000 | DIBBS |
| 5961-00-416-4858 | 2007-04-92 | 14000 | DIBBS |
Cross Reference | NSN 5961-00-416-4858
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12448/34803 | K1196 | DIODES ZETEX SEMICONDUCTORS LIMITED |
| 16100-011 | 12763 | DYNALEC CORPORATION |
| 16101-038 | 12763 | DYNALEC CORPORATION |
| 16101-052 | 12763 | DYNALEC CORPORATION |
| 1978209FN4 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 1N2613 | 05277 | WESTINGHOUSE ELECTRIC CORP SEMICONDUCTOR DIV |
| 1N3079 | 03877 | GILBERT ENGINEERING CO INC/INCON SUB OF TRANSITRON ELECTRONIC CORP |
| 1N4142 | 04713 | FREESCALE SEMICONDUCTOR, INC. |
| 1N5551 | 14099 | SEMTECH CORPORATION |
| 1N5551 | 14936 | GENERAL SEMICONDUCTOR INC |
| 353-3296-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 353-3296-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 353-9009-391 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 353-9019-020 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 353-9019-020 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 3SE4 | 14099 | SEMTECH CORPORATION |
| 3SM4 | 28976 | SEMCOR |
| 4178600-565 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 76-11244 | 30554 | DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER |
| 7904865-01 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 7904865-03 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 8-711113-079 | F0217 | LABINAL POWER SYSTEMS |
| 848189-0001 | 65597 | THALES DEFENSE & SECURITY, INC. |
| CER300 | 21845 | SOLITRON DEVICES, INC. |
| IN5200 | 14099 | SEMTECH CORPORATION |
| JAN1N3190 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JAN1N5551 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JAN1N5551 | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| JANTX1N3190 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JANTX1N5551 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JANTX1N5551A | C7191 | ADELCO ELEKTRONIK GMBH |
| JANTXIN5551 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-19500/420 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-19500/155 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-19500/420 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| QPL-JANTX1N5551 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| Z1442 | 12255 | UNITED STATES DEPARTMENT OF THE NAVY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5961-00-416-4858
Related Products | NSN 5961-00-416-4858
Technical Data | NSN 5961-00-416-4858
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 460.0 MINIMUM BREAKDOWN VOLTAGE, DC AND 400.0 MAXIMUM WORKING PEAK REVERSE VOLTAGE |
| CURRENT RATING PER CHARACTERISTIC | 5.00 AMPERES MAXIMUM AVERAGE FORWARD CURRENT AVERAGED OVER A FULL 60-HZ CYCLE |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 175.0 DEG CELSIUS JUNCTION |
| INCLOSURE MATERIAL | GLASS |
| MOUNTING METHOD | TERMINAL |

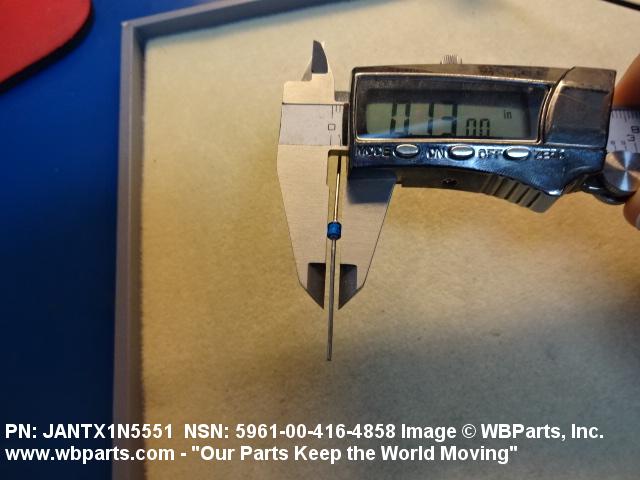

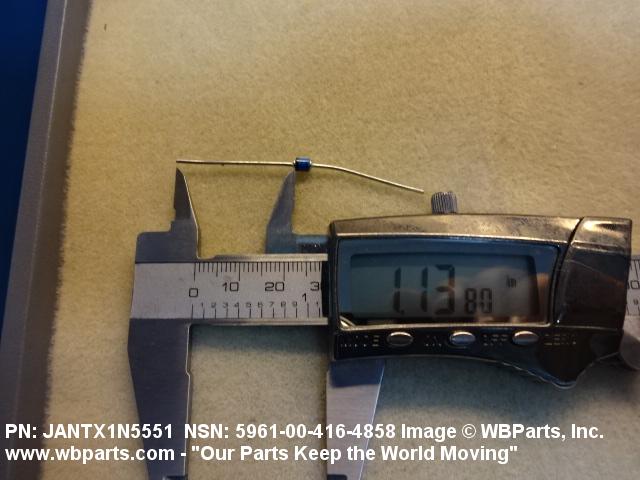

| TERMINAL LENGTH | 0.900 INCHES MINIMUM AND 1.300 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| OVERALL LENGTH | 0.130 INCHES MINIMUM AND 0.300 INCHES MAXIMUM |

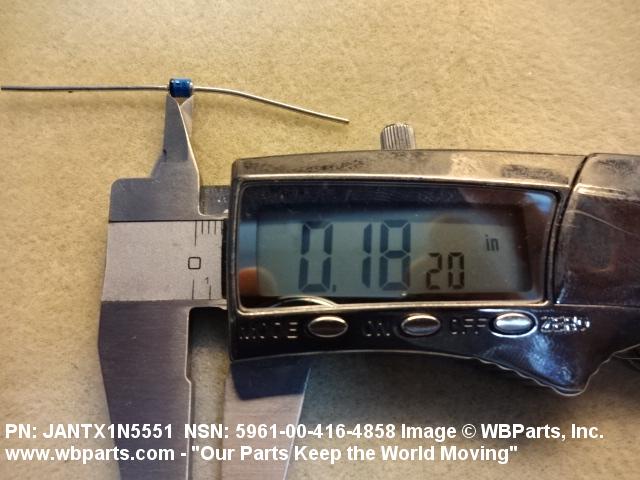

| OVERALL DIAMETER | 0.115 INCHES MINIMUM AND 0.180 INCHES MAXIMUM |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| TEST DATA DOCUMENT | 81349-MIL-S-19500 SPECIFICATION |
| (NON-CORE DATA) SPECIFICATION/STANDARD DATA | 81349-MIL-S-19500/420 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | JANTX1N5551 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-19500/420 |
Restrictions/Controls & Freight Information | NSN 5961-00-416-4858
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |

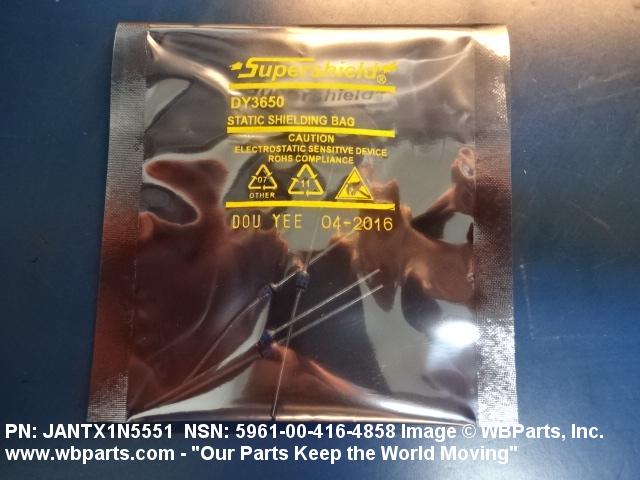

| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5961-00-416-4858
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
