NSN 5961-00-528-1630 D468AM, 15837705, 1583770-5

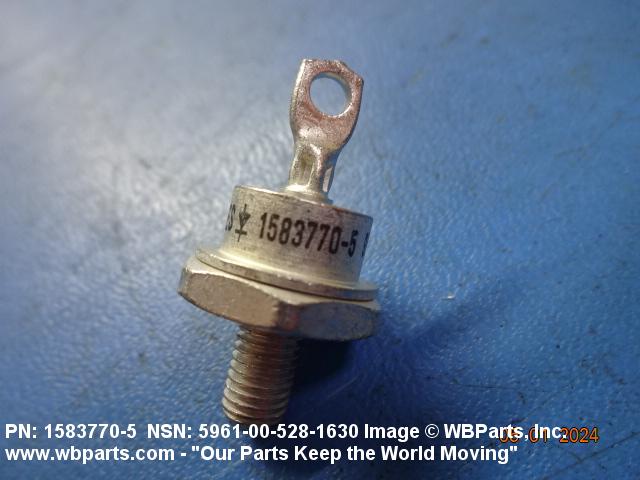

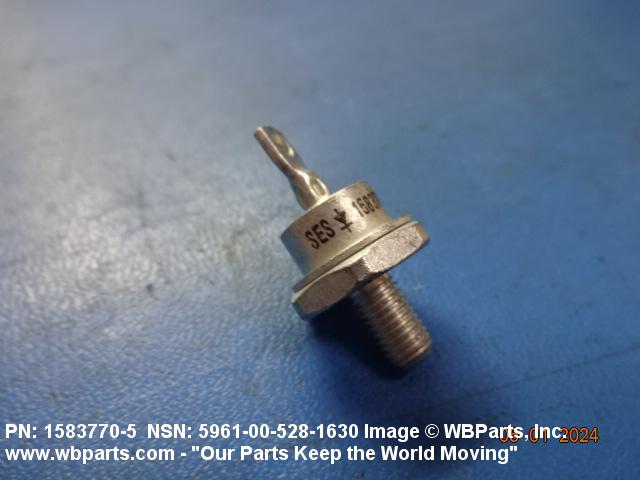

Product Details | DIODE SEMICONDUCTOR DEVICE
5961-00-528-1630 A two electrode semiconductor device having an asymmetrical voltage - current characteristic. May or may not include mounting hardware and/or heatsink. Excludes LIGHT EMITTING DIODE and SEMICONDUCTOR DEVICE,PHOTO. For items containing material such as selenium and copper oxide, see RECIFIER, METALLIC.
Part Alternates: D468AM, 15837705, 1583770-5, 402A1N1190A, 402A-1N1190A, 402M1N1190A, 5961-00-528-1630, 00-528-1630, 5961005281630, 005281630
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
