NSN 5961-01-034-7444 MDA9801, MDA980-1 , SDA9801
Product Details | UNITIZED SEMICONDUCTOR DEVICE RECTIFIER
5961-01-034-7444 Two or more diode semiconductor devices designed to function as a unit in changing alternating current to direct current. The diode devices are internally connected in series, and are permanently cased, encapsulated, potted, or molded together to form an inseparable unit. These units may be designed as either half-wave or full-wave rectifiers and may be mounted to form either single phase or three phase bridges. For interconnected items arranged in stack(s), see RECTIFIER, SEMICONDUCTOR DEVICE. For items fabricated in the form of a monolithic or thin film structure that perform the function of a circuit, see INTEGRATED CIRCUIT (as modified). Excludes SEMICONDUCTOR DEVICES, UNITIZED; SEMICONDUCTOR DEVICE ASSEMBLY; and RECTIFIER NETWORK, UNITIZED.
Part Alternates: MDA9801, MDA980-1 , SDA9801, SDA980-1, 202004, 40067401, 400674-01, 5961-01-034-7444, 01-034-7444, 5961010347444, 010347444
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JAN 1977 | 01-034-7444 | 62108 ( RECTIFIER, SEMICONDUCTOR DEVICE, UNITIZED ) |

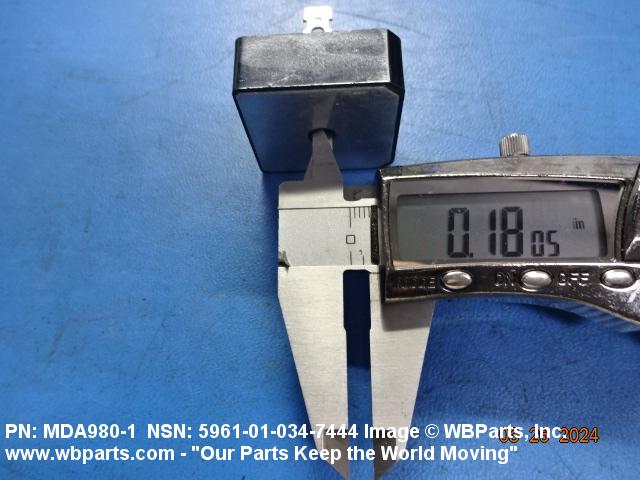

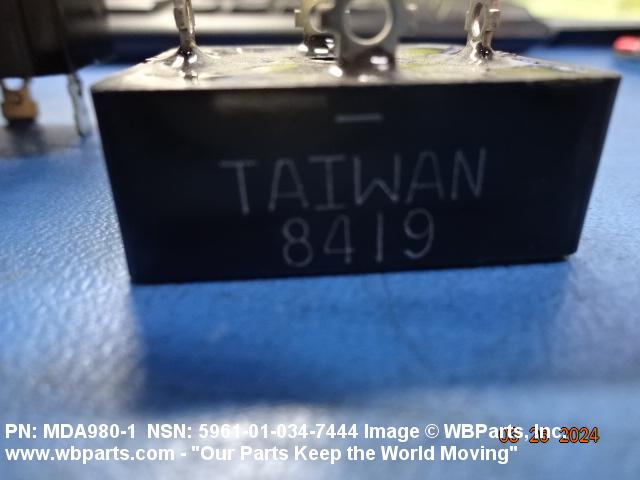

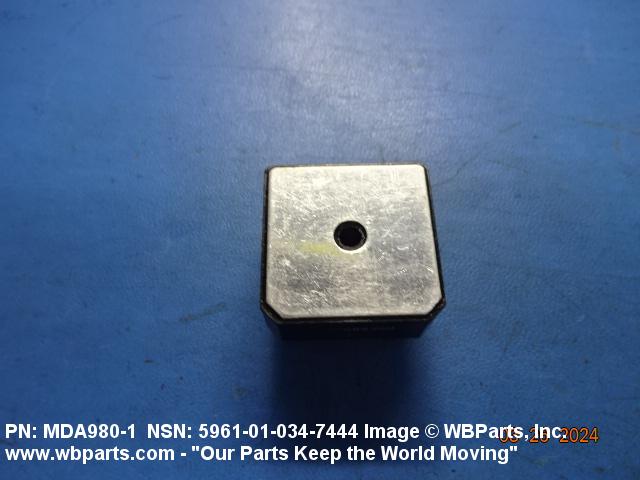

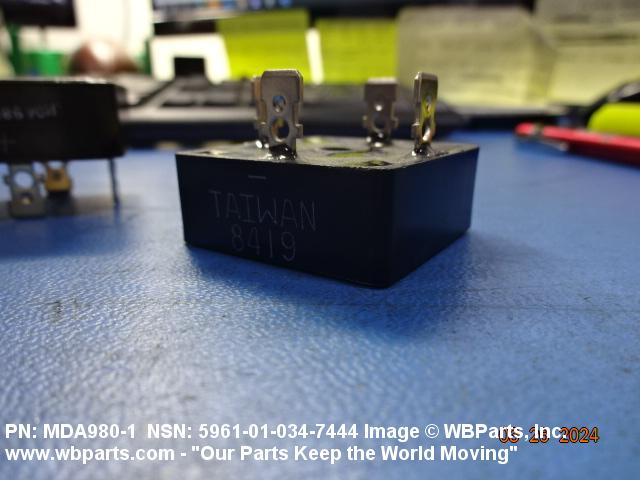

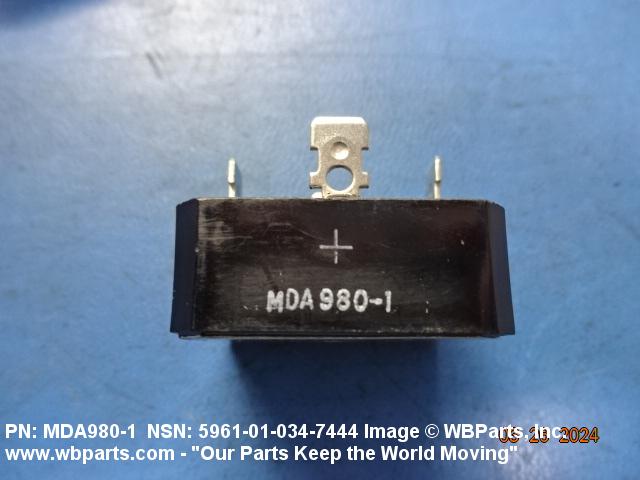

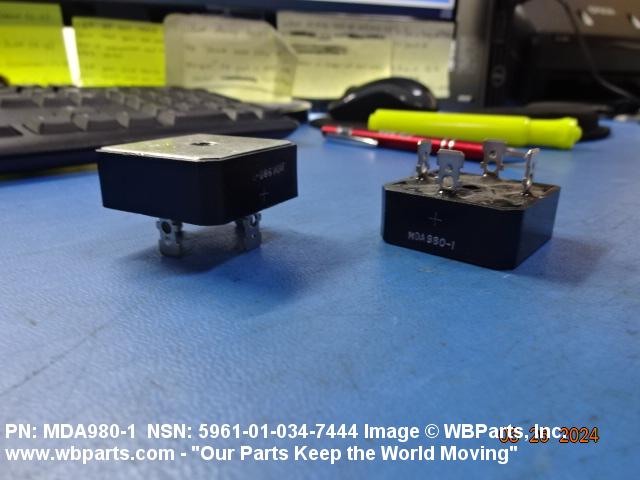

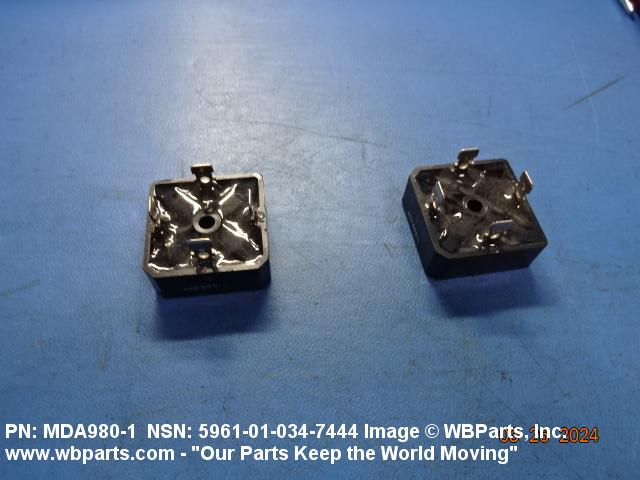

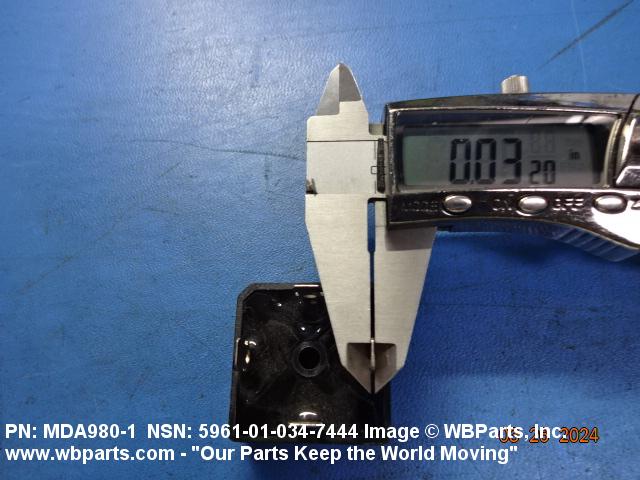

Drawings & Photos | NSN 5961-01-034-7444
Demand History | NSN 5961-01-034-7444
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-01-034-7444 | 2024-03-78 | 5 | United States |
| MDA9801 | 2024-01-22 | 5 | United States |
| 5961-01-034-7444 | 2024-01-08 | 5 | United States |
| 5961-01-034-7444 | 2024-01-05 | 5 | United States |
Cross Reference | NSN 5961-01-034-7444
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-01-034-7444
Technical Data | NSN 5961-01-034-7444
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | SINGLE-PHASE FULL-WAVE BRIDGE;50 VOLT;12 AMPS AT 55 DEG C;CASE 179;SILICON MATERIAL;1.255 IN. SQUARE;SOLDER LUG TERMINALS |
| MANUFACTURERS CODE | 04713 |
| DESIGN CONTROL REFERENCE | MDA980-1 |
Restrictions/Controls & Freight Information | NSN 5961-01-034-7444
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC SUB1 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | DX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5961-01-034-7444
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
