NSN 5961-01-057-3305 B86984, JANTX1N6072A, JANTX1N6072A2AJTX
Product Details | DIODE SEMICONDUCTOR DEVICE
5961-01-057-3305 A two electrode semiconductor device having an asymmetrical voltage - current characteristic. May or may not include mounting hardware and/or heatsink. Excludes LIGHT EMITTING DIODE and SEMICONDUCTOR DEVICE,PHOTO. For items containing material such as selenium and copper oxide, see RECIFIER, METALLIC.
Part Alternates: B86984, JANTX1N6072A, JANTX1N6072A2AJTX, JTX1N6072A, MIL-PRF-19500/507, MILPRF19500507, MILS195001N6072AJT, MIL-S-195001N6072AJT, 1.5KE440CA, 15KE440CA, 2635-088-22 ITEM 1-275, 263508822ITEM1275, 2733029, 3539016640, 353-9016-640, 55863680012, 5586368-0012, 7912422-02, 5961-01-057-3305, 01-057-3305, 5961010573305, 010573305, 791242202
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 MAR 1978 | 01-057-3305 | 20589 ( SEMICONDUCTOR DEVICE, DIODE ) |

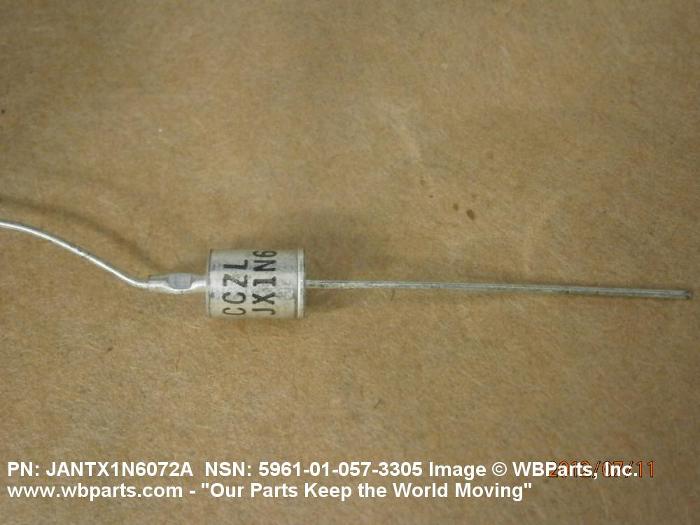

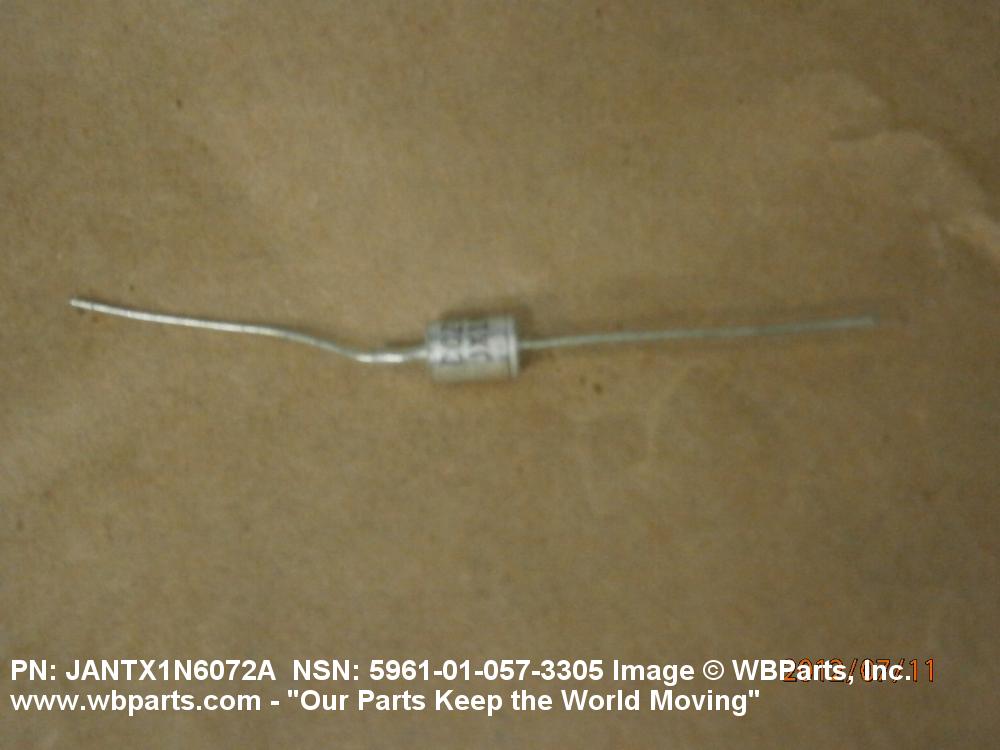

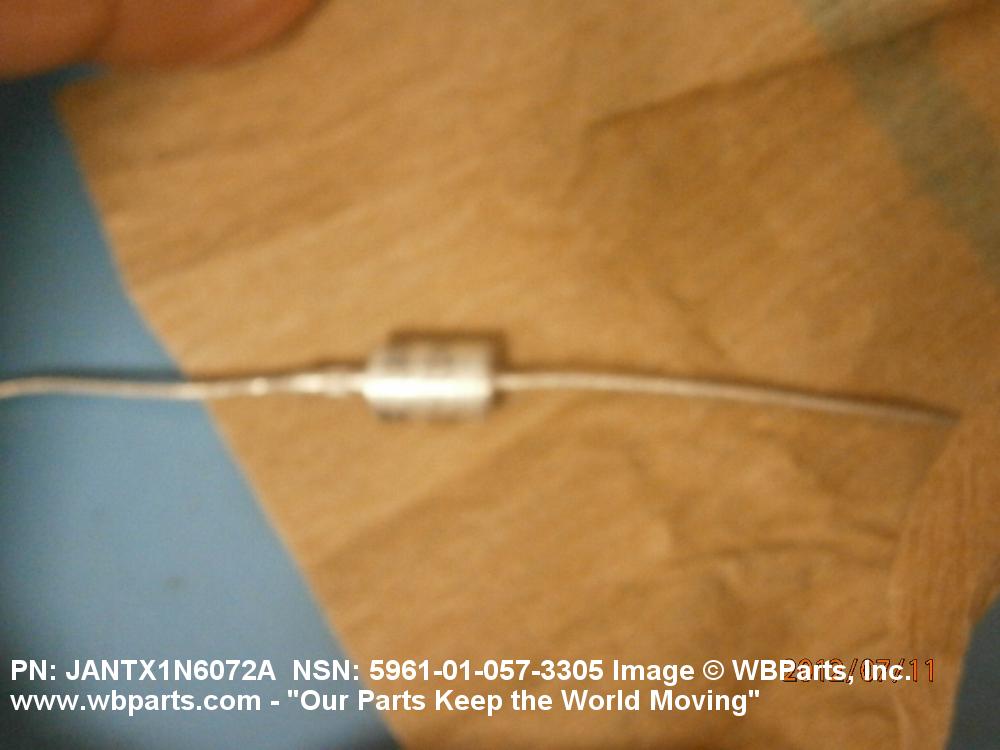

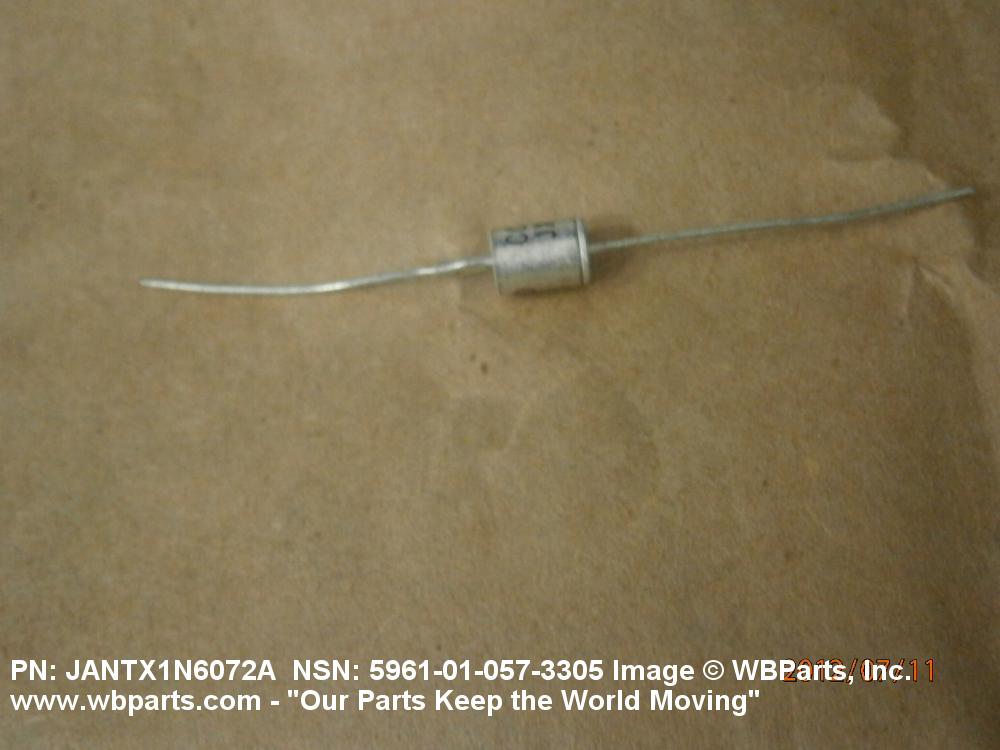

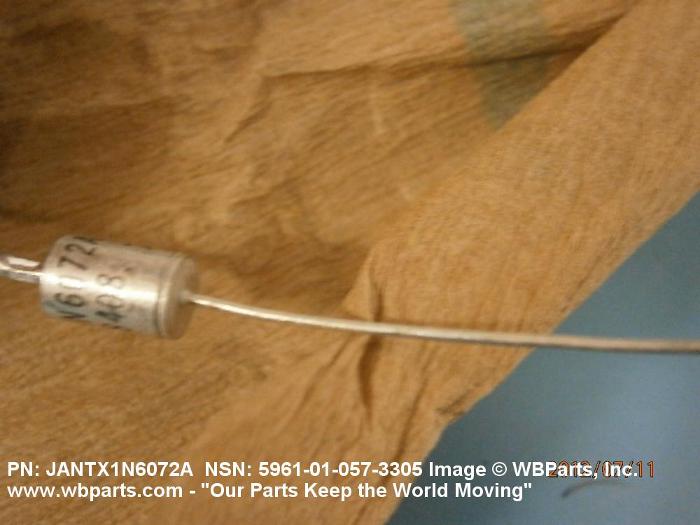

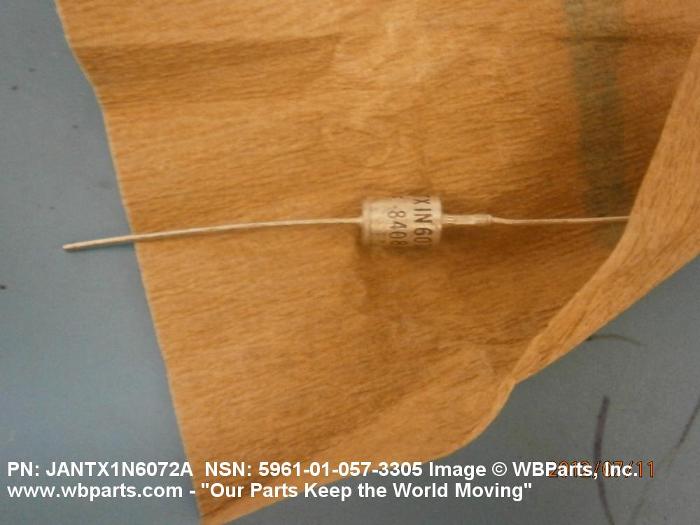

Drawings & Photos | NSN 5961-01-057-3305
Demand History | NSN 5961-01-057-3305
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-01-057-3305 | 2026-02-43 | 125 | DIBBS |
| 5961-01-057-3305 | 2024-06-176 | 149 | DIBBS |
| 5961-01-057-3305 | 2024-06-164 | 149 | DIBBS |
| 5961-01-057-3305 | 2024-01-25 | 228 | DIBBS |
| 5961-01-057-3305 | 2023-10-291 | 130 | DIBBS |
| 5961-01-057-3305 | 2023-08-228 | 143 | DIBBS |
| 5961-01-057-3305 | 2022-11-326 | 145 | DIBBS |
| 5961-01-057-3305 | 2022-09-255 | 90 | DIBBS |
| 5961-01-057-3305 | 2021-04-98 | 168 | DIBBS |
| 5961-01-057-3305 | 2021-03-87 | 168 | DIBBS |
| 5961-01-057-3305 | 2019-06-161 | 390 | DIBBS |
| 5961-01-057-3305 | 2019-05-148 | 390 | DIBBS |
| 5961-01-057-3305 | 2018-06-176 | 150 | DIBBS |
| 5961-01-057-3305 | 2018-04-109 | 500 | DIBBS |
| 5961-01-057-3305 | 2018-04-98 | 500 | DIBBS |
| 5961-01-057-3305 | 2018-03-66 | 400 | DIBBS |
| 5961-01-057-3305 | 2017-11-325 | 67 | DIBBS |
| 5961-01-057-3305 | 2017-11-317 | 300 | DIBBS |
| 5961-01-057-3305 | 2017-11-311 | 67 | DIBBS |
| 5961-01-057-3305 | 2017-11-305 | 300 | DIBBS |
| 5961-01-057-3305 | 2016-07-186 | 130 | DIBBS |
| 5961-01-057-3305 | 2016-04-111 | 365 | DIBBS |
| 5961-01-057-3305 | 2012-12-346 | 82 | DIBBS |
| JANTX1N6072A | 2012-07-187 | 10 | Australia |
| JANTX1N6072A | 2011-02-54 | 1 | United States |
| 5961-01-057-3305 | 2008-01-07 | 1774 | DIBBS |
| 5961-01-057-3305 | 2007-09-261 | 110 | DIBBS |
Cross Reference | NSN 5961-01-057-3305
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1.5KE440CA | 24444 | GENERAL SEMICONDUCTOR INDUSTRIES INC |
| 2635-088-22 ITEM 1-275 | 96169 | ELECTRIC BOAT CORPORATION |
| 353-9016-640 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 5586368-0012 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 7912422-02 | 06401 | L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATIONS SYSTEMS WEST |
| 7912422-02 | 24444 | GENERAL SEMICONDUCTOR INDUSTRIES INC |
| B86984 | K0967 | MBDA UK LTD |
| JANTX1N6072A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JANTX1N6072A2AJTX | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JTX1N6072A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-19500/507 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-195001N6072AJT | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5961-01-057-3305
Related Products | NSN 5961-01-057-3305
Technical Data | NSN 5961-01-057-3305
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 231.0 MAXIMUM BREAKDOWN VOLTAGE, DC |
| CURRENT RATING PER CHARACTERISTIC | 4.60 AMPERES MAXIMUM REVERSE BREAKDOWN CURRENT, DC |
| POWER RATING PER CHARACTERISTIC | 1500.0 WATTS MAXIMUM REVERSE POWER DISSIPATION, PEAK |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 175.0 DEG CELSIUS AMBIENT AIR |
| INCLOSURE MATERIAL | METAL |
| JOINT ELECTRONIC DEVICE ENGINEERING COUNCIL/JEDEC/CASE OUTLINE DESIGNATION | DO-13 |
| MOUNTING METHOD | TERMINAL |
| TERMINAL LENGTH | 1.000 INCHES MINIMUM AND 1.625 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 INSULATED WIRE LEAD |
| OVERALL LENGTH | 0.293 INCHES MINIMUM AND 0.357 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.215 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL; JUNCTION PATTERN ARRANGEMENT: PN |
| TEST DATA DOCUMENT | 81349-MIL-S-19500 SPECIFICATION |
| (NON-CORE DATA) SPECIFICATION/STANDARD DATA | 81349-MIL-S-19500/507 GOVERNMENT SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | CENTRAL OFFICE, TELEPHONE AUTO; AIRCRAFT, AILIFTER C-17A; SUPPORT EQUIPMENT, B-52 AIRCRAFT; AIRCRAFT, AC-130H, MC-130H, EC-130E, HC-130; REGENCY NET SYSTEM (AN/TRC-179 (V), AN/FRC-180 (V), AN/GRC-215); HELICOPTER, CARRIER BASED ASW, SH-60F; AN/UYK-7(V) SONAR/FIRE CONTROL TACTICAL COMPUTER; SUPPORT EQUIPMENT, B-1 AIRCRAFT; USNS STALWART CLASS TAGOS; GUIDED MISSILE SYSTEM; RAM EX43 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | JANTX1N6072A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-19500/507 |
