NSN 5961-01-141-2077 1N3308R, 3536497120, 353-6497-120
Product Details | DIODE SEMICONDUCTOR DEVICE
5961-01-141-2077 A two electrode semiconductor device having an asymmetrical voltage - current characteristic. May or may not include mounting hardware and/or heatsink. Excludes LIGHT EMITTING DIODE and SEMICONDUCTOR DEVICE,PHOTO. For items containing material such as selenium and copper oxide, see RECIFIER, METALLIC.
Part Alternates: 1N3308R, 3536497120, 353-6497-120, 5961-01-141-2077, 01-141-2077, 5961011412077, 011412077
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 OCT 1982 | 01-141-2077 | 20589 ( SEMICONDUCTOR DEVICE, DIODE ) |

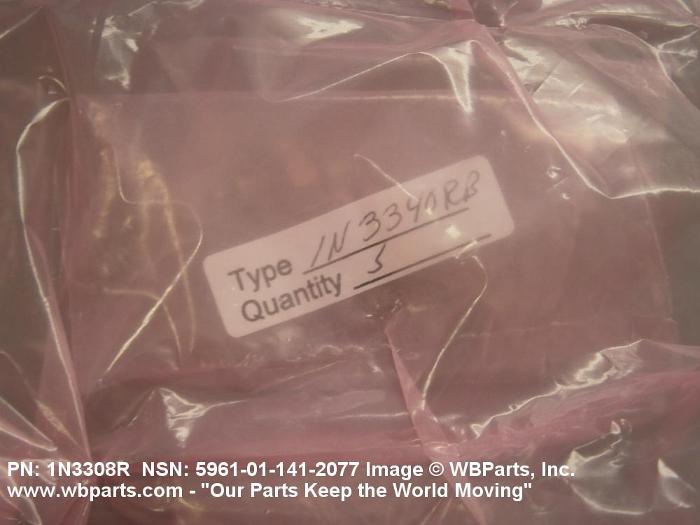

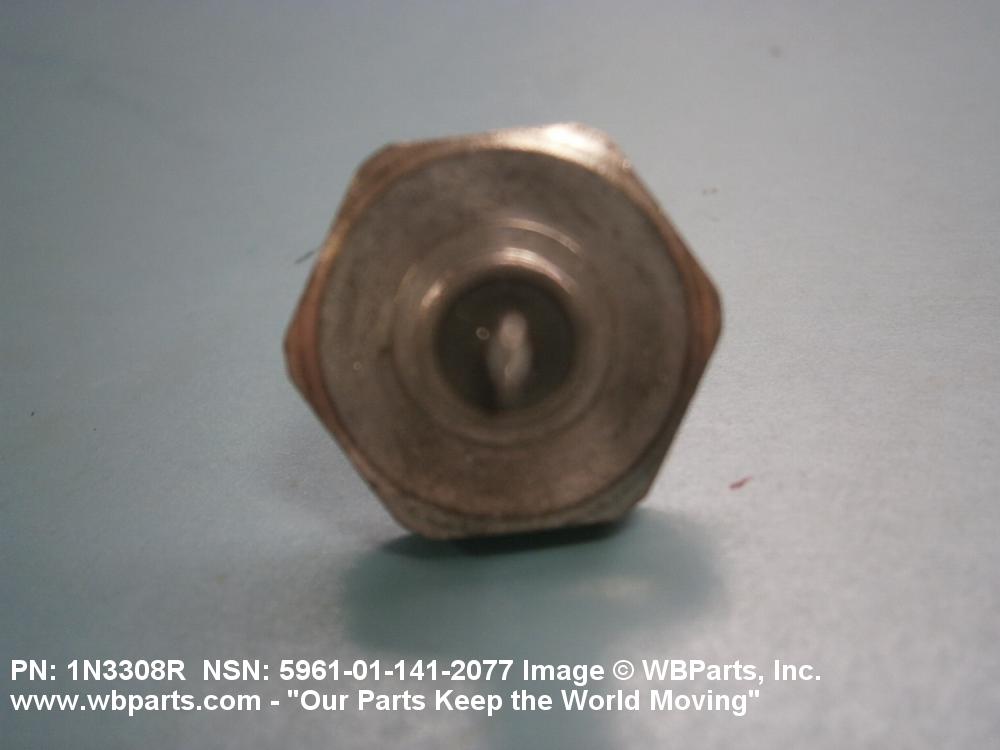

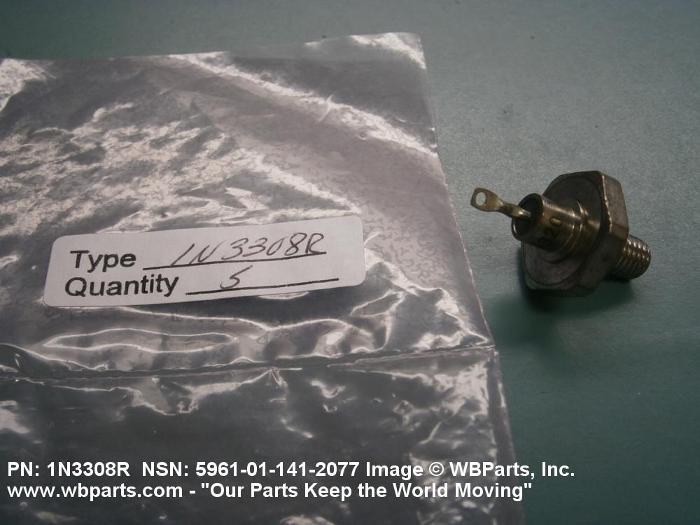

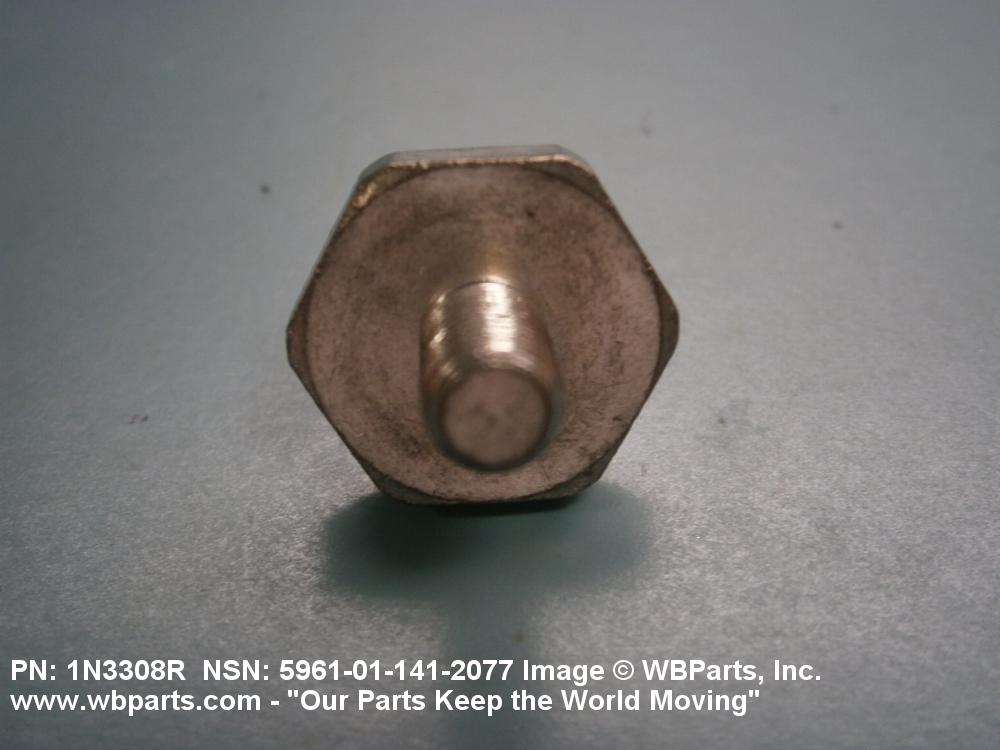

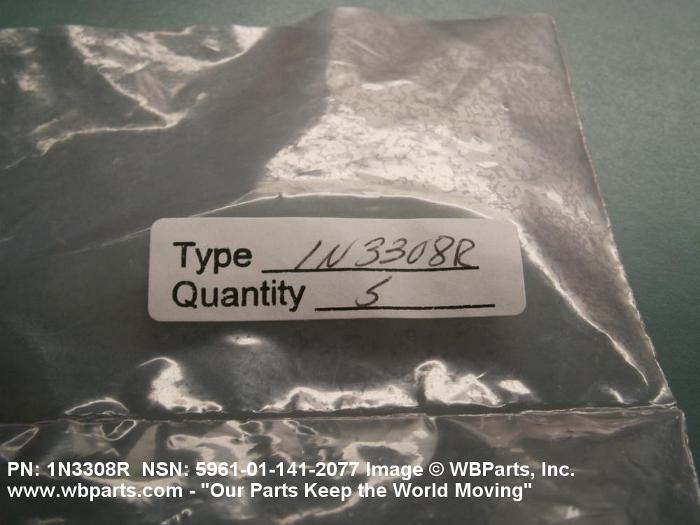

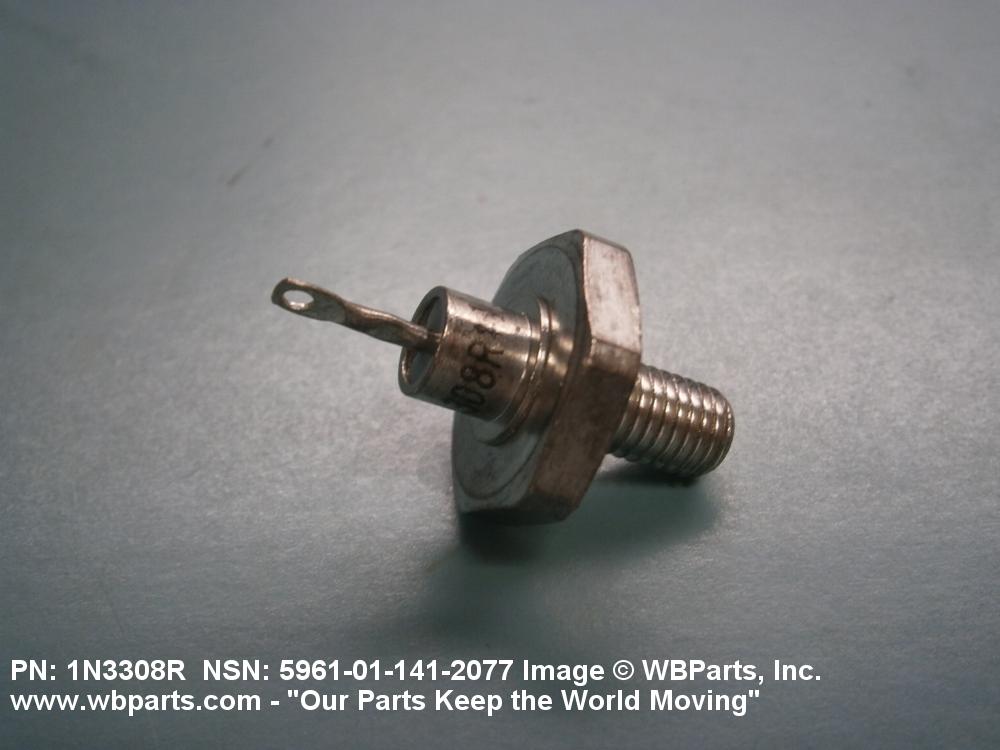

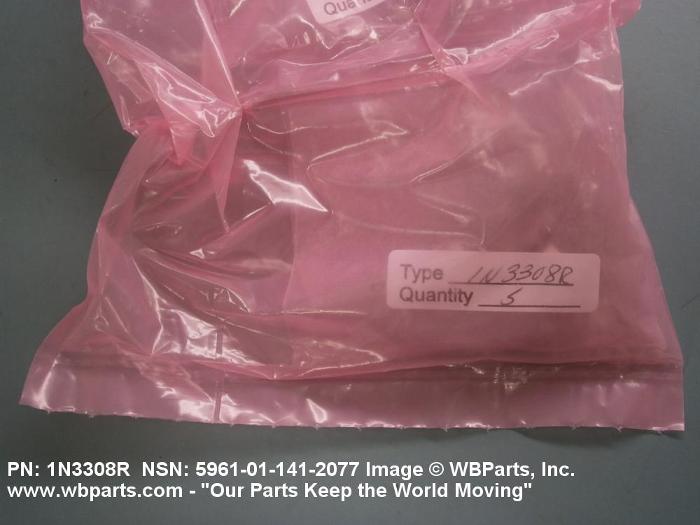

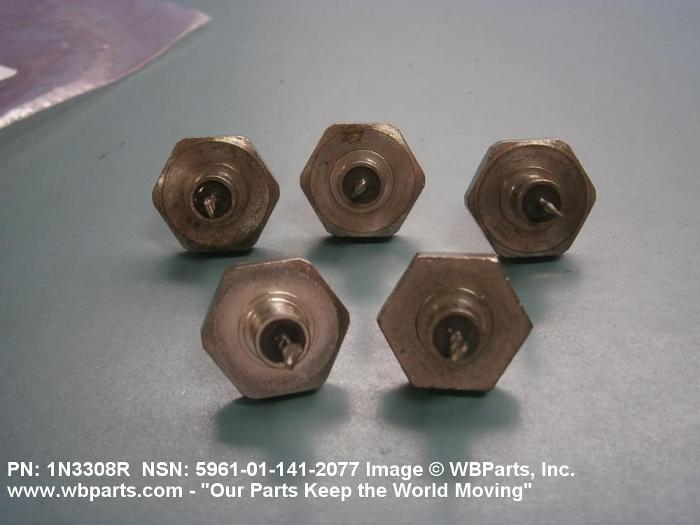

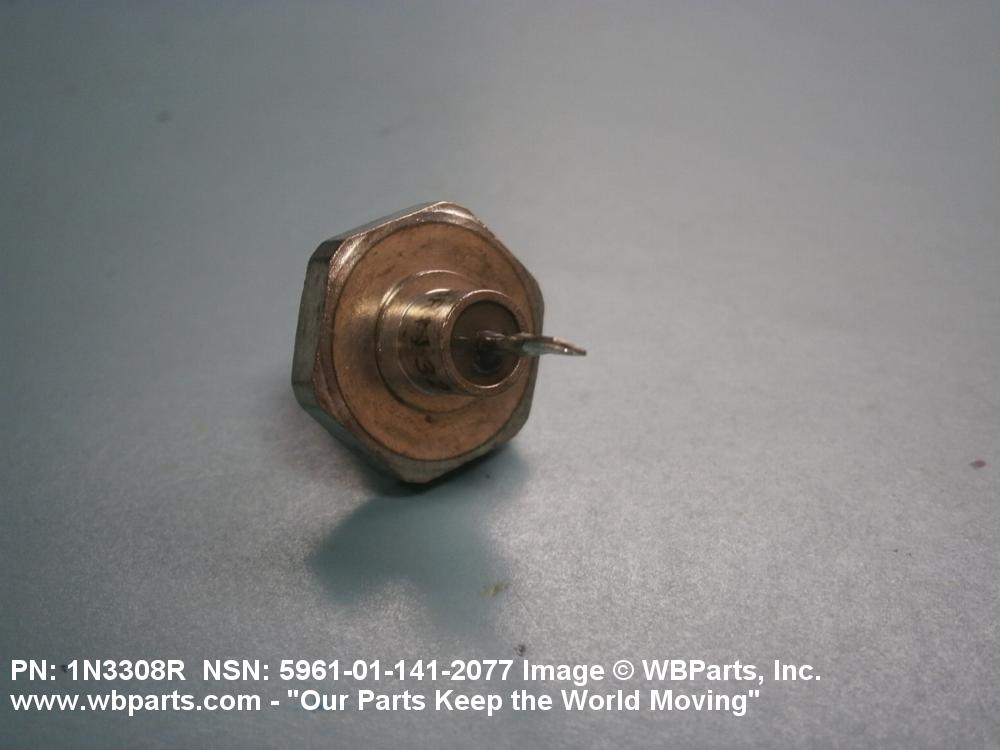

Drawings & Photos | NSN 5961-01-141-2077
Demand History | NSN 5961-01-141-2077
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-01-141-2077 | 2013-04-95 | 20 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-01-141-2077
Technical Data | NSN 5961-01-141-2077
| Characteristic | Specifications |
|---|---|
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 165.0 DEG CELSIUS JUNCTION |
| INCLOSURE MATERIAL | METAL |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING FACILITY QUANTITY | 1 |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG AND 1 CASE |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OVERALL DIAMETER | 0.677 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5961-01-141-2077
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
