NSN 5970-00-054-2484 00-054-2484, 000542484
Product Details | PLATE INSULATOR
5970-00-054-2484 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 5970-00-054-2484, 00-054-2484, 5970000542484, 000542484
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-054-2484 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-054-2484
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-054-2484
Technical Data | NSN 5970-00-054-2484
| Characteristic | Specifications |
|---|---|

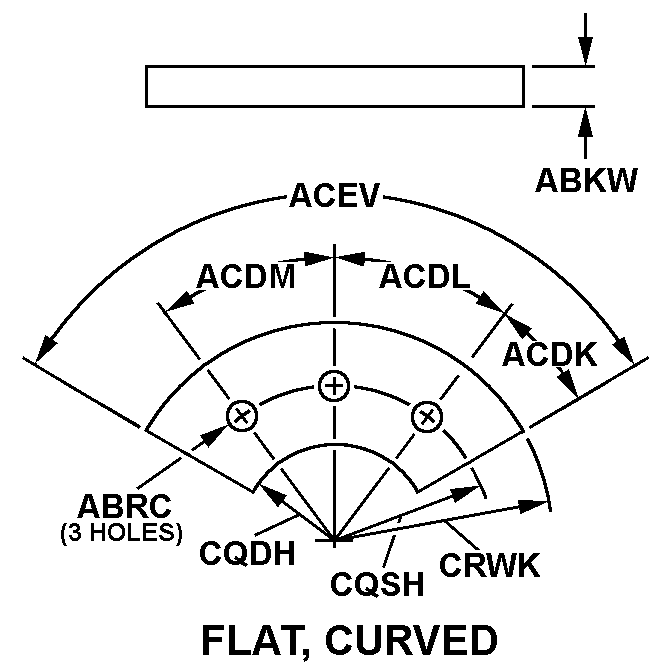

| STYLE DESIGNATOR | K83 FLAT, CURVED |
| OVERALL HEIGHT | 0.005 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.094 INCHES NOMINAL |
| SECOND SIDE RADIUS | 2.250 INCHES NOMINAL |
| FIRST HOLE SPACING | 2.344 INCHES NOMINAL |
| FIRST SIDE RADIUS | 2.438 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PAPER, FISHPAPER |
| SPECIAL FEATURES | 3 EA 0.094 IN. DIA HOLES ARE LOCATED 1.600 IN. C TO C |
Restrictions/Controls & Freight Information | NSN 5970-00-054-2484
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
