NSN 5970-00-157-0730 NS4AW4202, JANI8T, 1173A
Product Details | BOWL INSULATOR
5970-00-157-0730 An insulator used for wire entering or feedthru purposes. May include mounting and/or conducting hardware. Includes replacement bowls for feedthru insulators. Characterized by one or more bowl or bell shaped insulator surfaces.
Part Alternates: NS4AW4202, JANI8T, 1173A, 3946, 39-46, 914R117, 5970-00-157-0730, 00-157-0730, 5970001570730, 001570730
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-157-0730 | 18300 ( INSULATOR, BOWL ) |
Drawings & Photos | NSN 5970-00-157-0730
Cross Reference | NSN 5970-00-157-0730
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1173A | 70371 | ADVANCED TECHNICAL CERAMICS COMPANY DBA ADTECH CERAMICS |
| 39-46 | 05690 | BARKER & WILLIAMSON |
| 914R117 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 914R117 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| JANI8T | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| NS4AW4202 | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-157-0730
Technical Data | NSN 5970-00-157-0730
| Characteristic | Specifications |
|---|---|

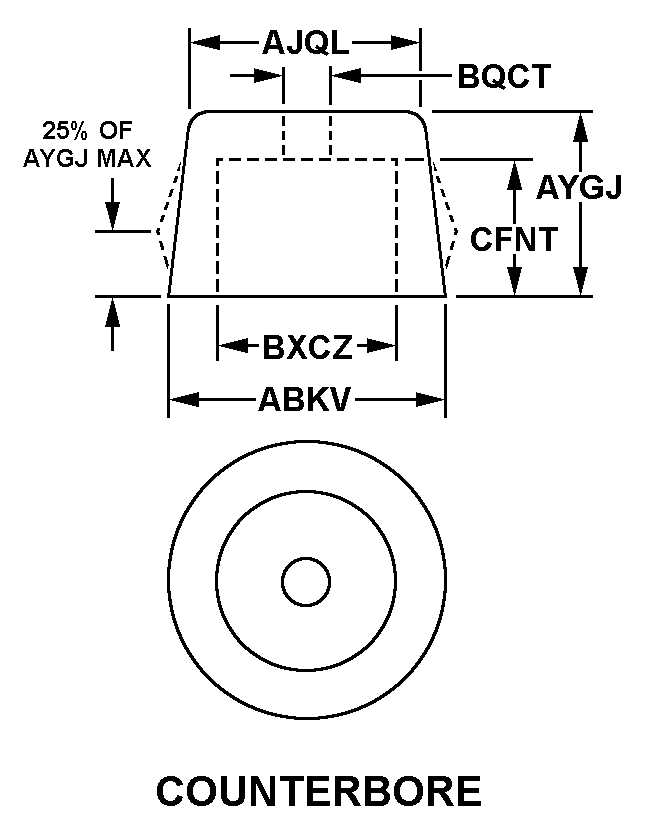

| STYLE DESIGNATOR | B6 COUNTERBORE |
| OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 0.375 INCHES NOMINAL |
| TOP HOLE DIAMETER | 0.156 INCHES NOMINAL |
| FIRST COUNTERBORE DIAMETER | 0.375 INCHES NOMINAL |
| FIRST COUNTERBORE DEPTH | 0.250 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL, JAN-I-10, GRADE L-4A MOUNTING BASE STEATITE |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| SPECIAL FEATURES | GLAZED FINISH |
| MANUFACTURERS CODE | 81350 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | JANI8T |
| MANUFACTURERS CODE | 81350 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NS4AW4202 |
Restrictions/Controls & Freight Information | NSN 5970-00-157-0730
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103660 | ELECTRIC WIRE OR WIRING |
| Less than car load rating | T | 55 |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
