NSN 5970-00-157-0735 M74020961REV7, M7402096-1REV7, 61132
Product Details | STANDOFF INSULATOR
5970-00-157-0735 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: M74020961REV7, M7402096-1REV7, 61132, 5970-00-157-0735, 00-157-0735, 5970001570735, 001570735
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-157-0735 | 00225 ( INSULATOR, STANDOFF ) |

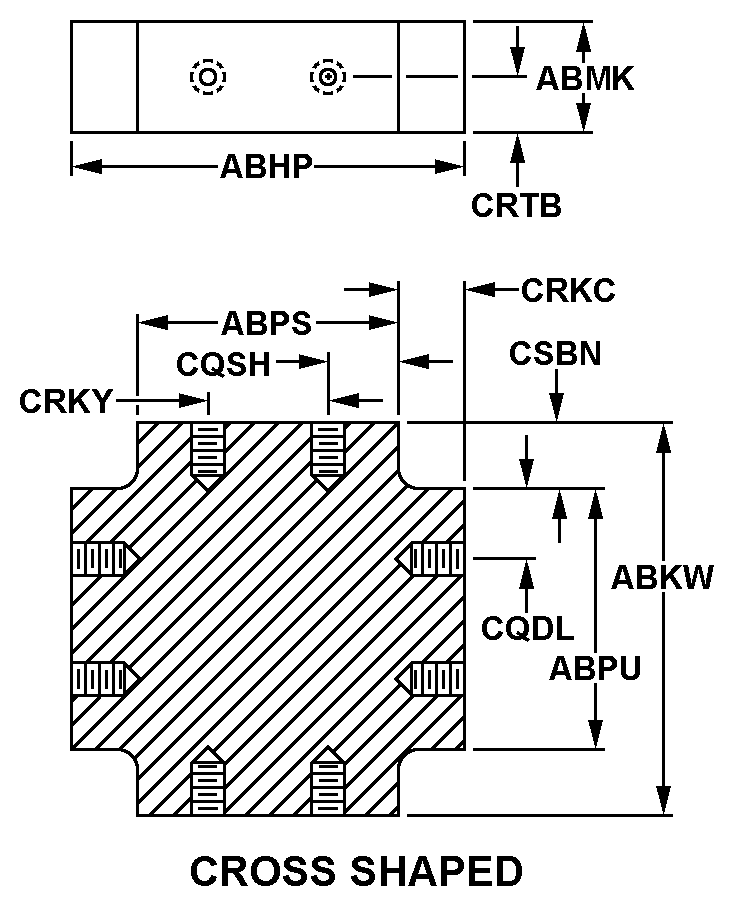

Drawings & Photos | NSN 5970-00-157-0735
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-157-0735
Technical Data | NSN 5970-00-157-0735
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | M48 CROSS SHAPED |
| OVERALL LENGTH | 2.562 INCHES NOMINAL |
| OVERALL HEIGHT | 2.562 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| FIRST STEP LENGTH | 1.000 INCHES NOMINAL |
| SECOND STEP LENGTH | 1.000 INCHES NOMINAL |
| FOURTH HOLE SPACING | 0.267 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.267 INCHES NOMINAL |
| CORNER CUT LENGTH | 0.781 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.625 INCHES NOMINAL |
| THIRD HOLE SPACING | 0.250 INCHES NOMINAL |
| CORNER CUT WIDTH | 0.781 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL, JAN-I-10, GRADE L-3A |
| IDENTIFICATION CODE COLOR | WHITE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | ELECTRICAL TERMINATION UNC |
| SCREW THREAD DIAMETER AND LOCATION | 0.138 ELECTRICAL TERMINATION INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 32 ELECTRICAL TERMINATION |
| THREAD CLASS AND LOCATION | 2B ELECTRICAL TERMINATION |
