Product Details | STANDOFF INSULATOR
5970-00-198-6391 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: 10195, 10-19-5, 575R624H01, 5970-00-198-6391, 00-198-6391, 5970001986391, 001986391
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-198-6391 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-00-198-6391
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-198-6391
Technical Data | NSN 5970-00-198-6391
| Characteristic | Specifications |
|---|---|

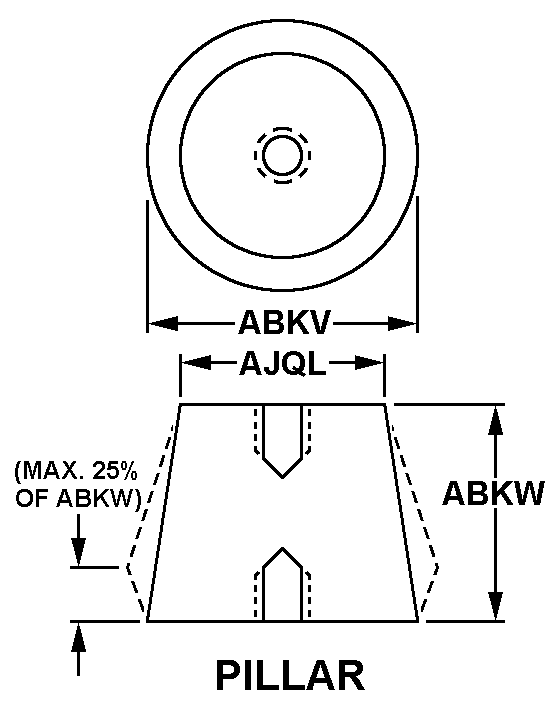

| STYLE DESIGNATOR | M14 PILLAR |
| OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| OVERALL HEIGHT | 0.625 INCHES NOMINAL |
| TOP DIAMETER | 0.438 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL CERAMIC |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | ELECTRICAL TERMINATION UNC MOUNTING FACILITY UNC |
| SCREW THREAD DIAMETER AND LOCATION | 0.138 ELECTRICAL TERMINATION INCHES NOMINAL 0.138 MOUNTING FACILITY INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 32 ELECTRICAL TERMINATION 32 MOUNTING FACILITY |
| THREAD CLASS AND LOCATION | 2B ELECTRICAL TERMINATION 2B MOUNTING FACILITY |
| THREAD LENGTH AND LOCATION | ANY ACCEPTABLE |
