NSN 5970-00-500-8152 207, 00-500-8152, 005008152
Product Details | PLATE INSULATOR
5970-00-500-8152 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 207, 5970-00-500-8152, 00-500-8152, 5970005008152, 005008152
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-500-8152 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-500-8152
Demand History | NSN 5970-00-500-8152
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 207 | 2011-10-291 | 1 | Saudi Arabia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-500-8152
Technical Data | NSN 5970-00-500-8152
| Characteristic | Specifications |
|---|---|

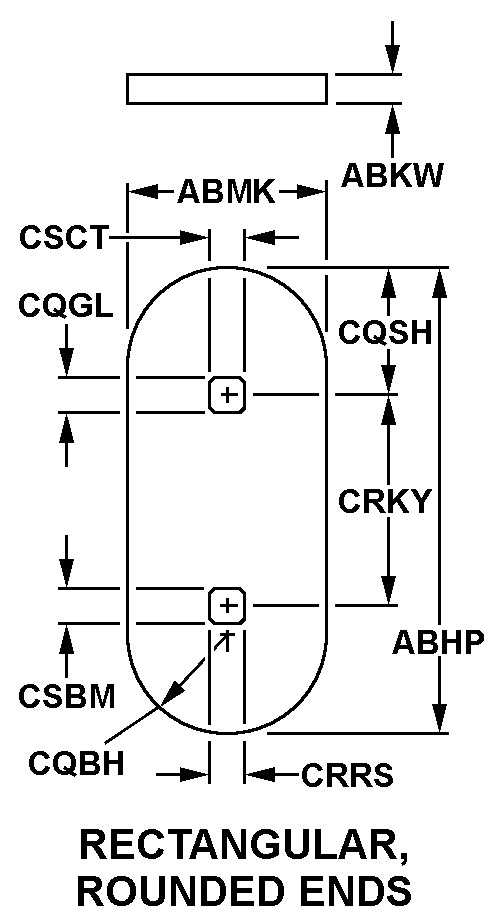

| STYLE DESIGNATOR | K68 RECTANGULAR, ROUNDED ENDS |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.218 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| FIRST HOLE LENGTH | 0.500 INCHES NOMINAL |
| SECOND HOLE WIDTH | 0.375 INCHES NOMINAL |
| THIRD HOLE SPACING | 0.750 INCHES NOMINAL |
| SECOND HOLE LENGTH | 0.500 INCHES NOMINAL |
| FIRST HOLE WIDTH | 0.375 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, STYRENE COPOLYMER |
| IDENTIFICATION CODE COLOR | BLACK |
Restrictions/Controls & Freight Information | NSN 5970-00-500-8152
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
