NSN 5970-01-017-0092 1517051501, 1517051-501, 01-017-0092
Product Details | STANDOFF INSULATOR
5970-01-017-0092 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: 1517051501, 1517051-501, 5970-01-017-0092, 01-017-0092, 5970010170092, 010170092
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 FEB 1976 | 01-017-0092 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-01-017-0092
Cross Reference | NSN 5970-01-017-0092
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1517051-501 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-017-0092
Technical Data | NSN 5970-01-017-0092
| Characteristic | Specifications |
|---|---|

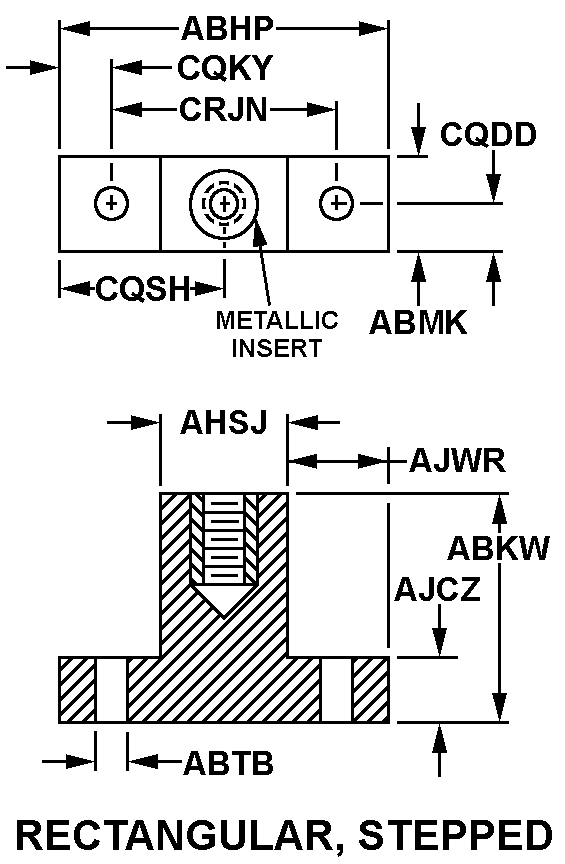

| STYLE DESIGNATOR | M46 RECTANGULAR, STEPPED |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| LEG LENGTH | 1.500 INCHES NOMINAL |
| BASE HEIGHT | 0.500 INCHES NOMINAL |
| SHOULDER LENGTH | 0.750 INCHES NOMINAL |
| THIRD MOUNTING HOLE SPACING | 0.310 INCHES NOMINAL |
| FIRST CAP HEIGHT | 1.498 INCHES NOMINAL |
| FIRST MOUNTING HOLE SPACING | 0.310 INCHES NOMINAL |
| SECOND MOUNTING HOLE SPACING | 2.375 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL,PLASTIC,POLYESTER,GLASS/6 3-027-17/-56232 |
| MOUNTING FACILITY TYPE AND QUANTITY | SLOTTED HOLE 2 |
| MANUFACTURERS CODE | 56232 |
| DESIGN CONTROL REFERENCE | 1517051-501 |
