NSN 5970-01-051-2832 MES34, MES3-4, MIL-I-81765/1
Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING
5970-01-051-2832 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.
Part Alternates: MES34, MES3-4, MIL-I-81765/1, MILI817651, 403A145442, 403A145-4-42, 5970-01-051-2832, 01-051-2832, 5970010512832, 010512832
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 NOV 1977 | 01-051-2832 | 61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE ) |

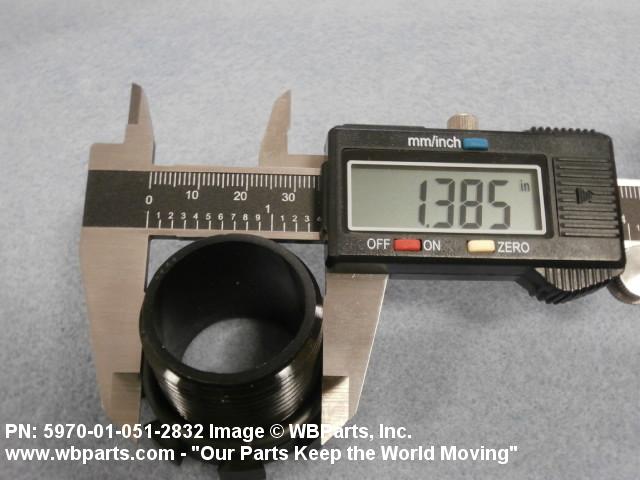

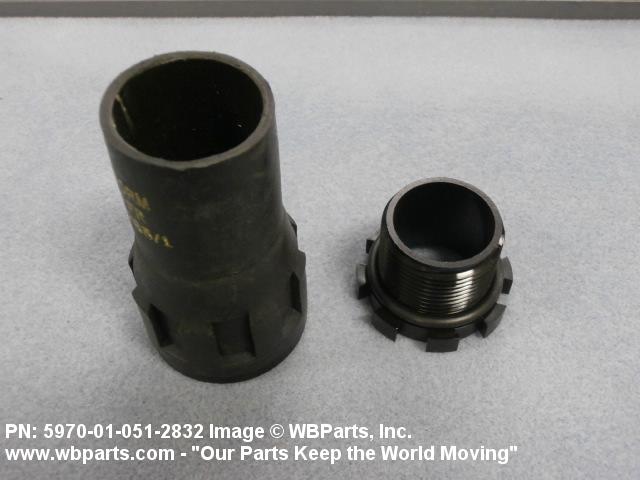

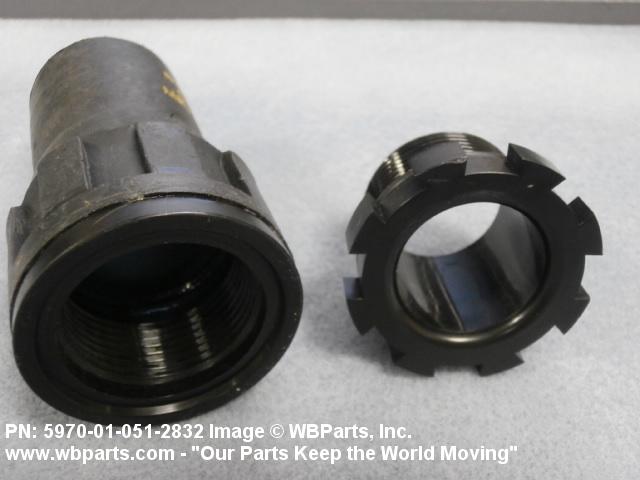

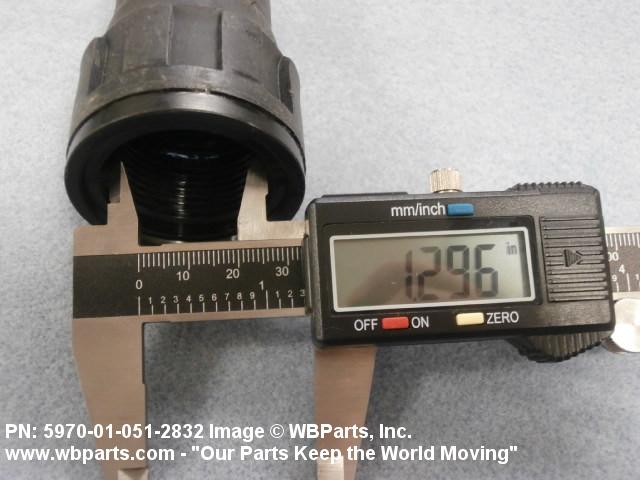

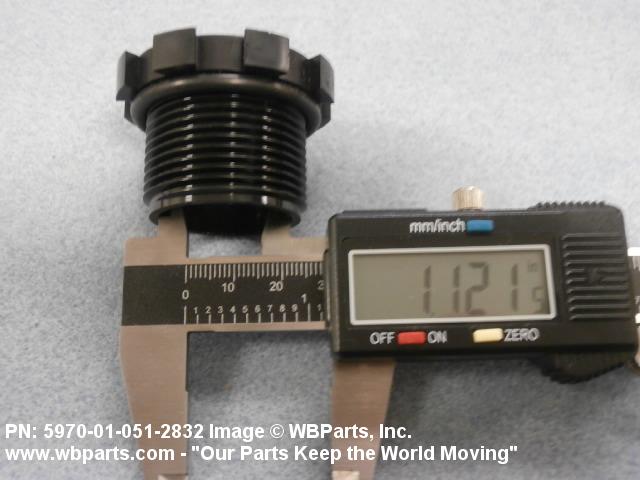

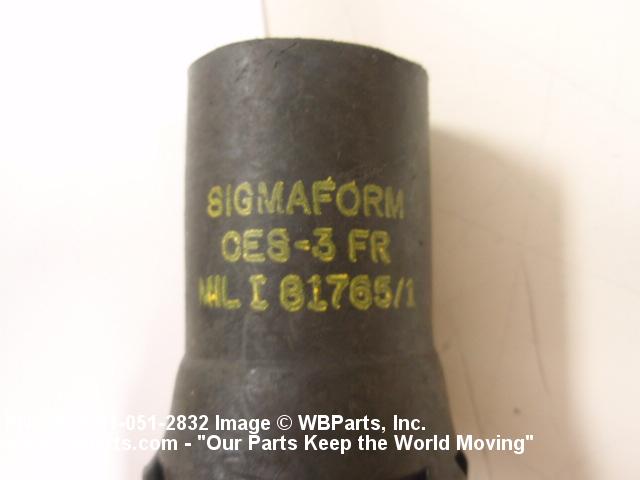

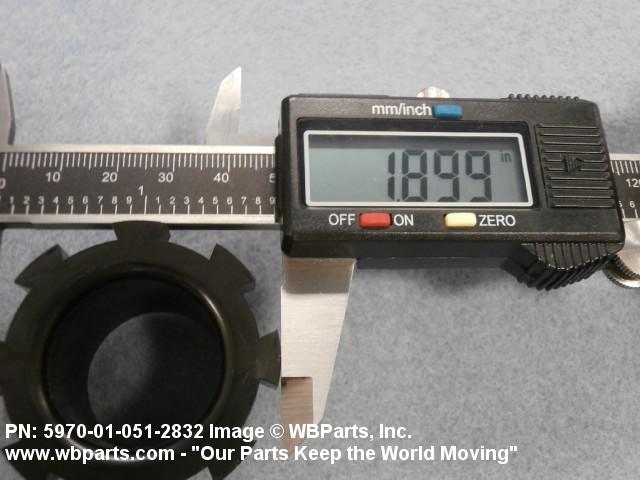

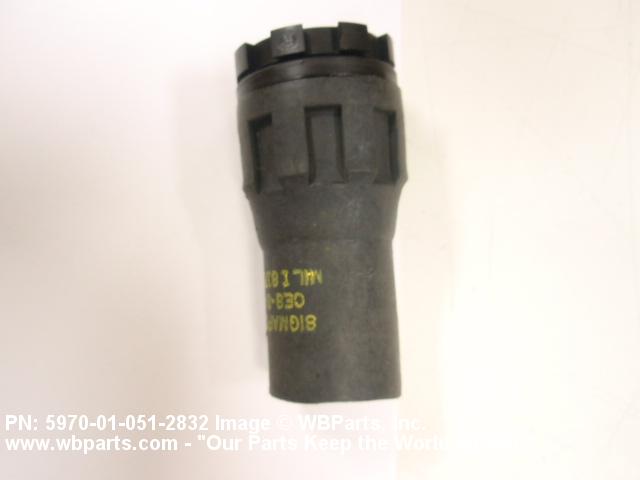

Drawings & Photos | NSN 5970-01-051-2832
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-051-2832
Technical Data | NSN 5970-01-051-2832
| Characteristic | Specifications |
|---|---|
| MAIN BODY INSIDE DIAMETER | 2.400 INCHES MINIMUM AS SUPPLIED 1.400 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| FIRST BRANCH INSIDE DIAMETER | 1.120 INCHES MINIMUM AS SUPPLIED 0.500 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| SECOND BRANCH INSIDE DIAMETER | 1.120 INCHES MINIMUM AS SUPPLIED 0.500 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| THIRD BRANCH INSIDE DIAMETER | 1.120 INCHES MINIMUM AS SUPPLIED 0.500 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| MAIN BODY WALL THICKNESS | 0.120 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MAIN BODY OVERALL LENGTH | 4.750 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MATERIAL | PLASTIC,POLYOLEFIN,RT-1304,RAYCHE M CORP |
| COLOR | BLACK |
| FLEXIBILITY | FLEXIBLE |
| TEMP RATING | -55.0 DEG CELSIUS AND 135.0 DEG CELSIUS |
| MINIMUM TENSILE STRENGTH | 1000 POUNDS PER SQUARE INCH |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND MILDEW RESISTANT AND SOLVENT RESISTANT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-81765/1 |
Restrictions/Controls & Freight Information | NSN 5970-01-051-2832
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
