Product Details | PLATE INSULATOR
5970-01-056-6582 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 3171051, 317105-1, 5970-01-056-6582, 01-056-6582, 5970010566582, 010566582
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 FEB 1978 | 01-056-6582 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-01-056-6582
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-01-056-6582
Related Products | NSN 5970-01-056-6582
Technical Data | NSN 5970-01-056-6582
| Characteristic | Specifications |
|---|---|

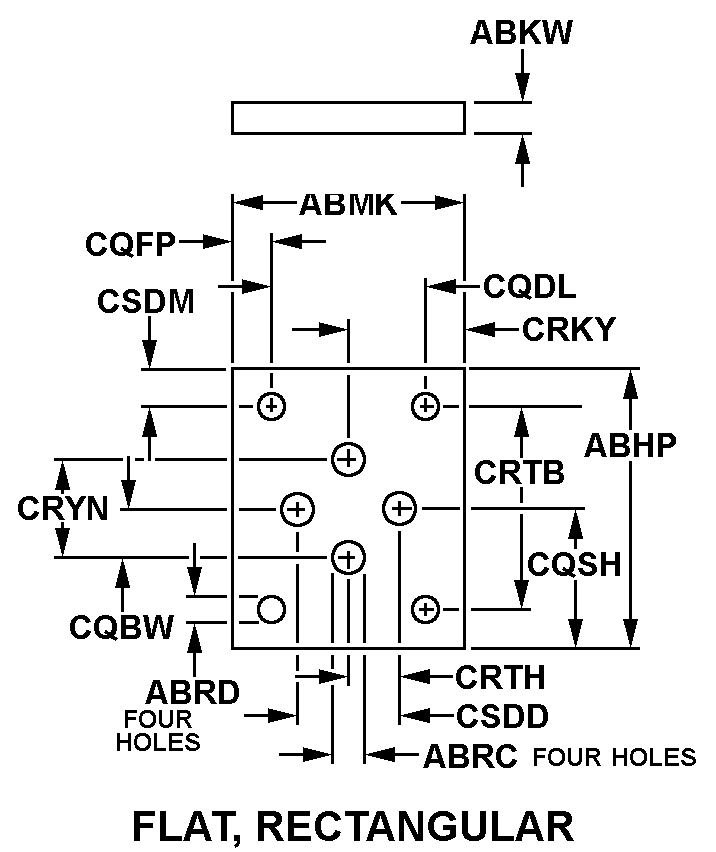

| STYLE DESIGNATOR | K17 FLAT, RECTANGULAR |
| OVERALL LENGTH | 1.700 INCHES NOMINAL |
| OVERALL HEIGHT | 0.010 INCHES NOMINAL |
| OVERALL WIDTH | 0.700 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.032 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.094 INCHES NOMINAL |
| SEVENTH HOLE SPACING | 0.150 INCHES NOMINAL |
| FOURTH HOLE SPACING | 0.422 INCHES NOMINAL |
| TENTH HOLE SPACING | 0.128 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.650 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.422 INCHES NOMINAL |
| THIRD HOLE SPACING | 0.688 INCHES NOMINAL |
| EIGHTH HOLE SPACING | 0.294 INCHES NOMINAL |
| FIFTH HOLE SPACING | 0.300 INCHES NOMINAL |
| SIXTH HOLE SPACING | 0.300 INCHES NOMINAL |
| NINTH HOLE SPACING | 0.306 INCHES NOMINAL |
| MATERIAL AND LOCATION | DUROID 5870 |
| SPECIAL FEATURES | ITEM HAS ONLY 2 HOLES 0.094 IN DIA |
