NSN 5970-01-085-1185 3219736, 01-085-1185, 010851185
Product Details | PLATE INSULATOR
5970-01-085-1185 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 3219736, 5970-01-085-1185, 01-085-1185, 5970010851185, 010851185
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 OCT 1979 | 01-085-1185 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-01-085-1185
Cross Reference | NSN 5970-01-085-1185
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3219736 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-085-1185
Technical Data | NSN 5970-01-085-1185
| Characteristic | Specifications |
|---|---|

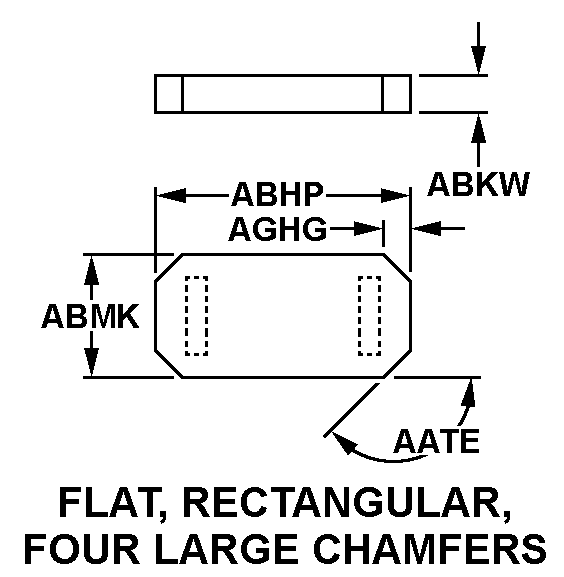

| STYLE DESIGNATOR | K101 FLAT, RECTANGULAR, FOUR LARGE CHAMFERS |
| CHAMFER ANGLE IN DEG | 45.0 |
| OVERALL LENGTH | 0.650 INCHES MINIMUM AND 0.680 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.015 INCHES MINIMUM AND 0.019 INCHES MAXIMUM |
| OVERALL WIDTH | 0.500 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| CHAMFER DEPTH | 0.153 INCHES MINIMUM AND 0.193 INCHES MAXIMUM |
| MATERIAL AND LOCATION | OVERALL PLASTIC SHEET, THERMOSETTING, MIL-P-18177, TYPE GEE |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 3219736 |
Restrictions/Controls & Freight Information | NSN 5970-01-085-1185
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | JG | Naval Ordnance Center Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-01-085-1185
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | UM | Underwater mines and depth charges |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
