NSN 5970-01-444-2762 234A152250, 234A152-25-0, 01-444-2762
Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING
5970-01-444-2762 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 234A152250, 234A152-25-0, 5970-01-444-2762, 01-444-2762, 5970014442762, 014442762
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 MAY 1997 | 01-444-2762 | 61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE ) |
Drawings & Photos | NSN 5970-01-444-2762
Cross Reference | NSN 5970-01-444-2762
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 234A152-25-0 | 06090 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-444-2762
Technical Data | NSN 5970-01-444-2762
| Characteristic | Specifications |
|---|---|

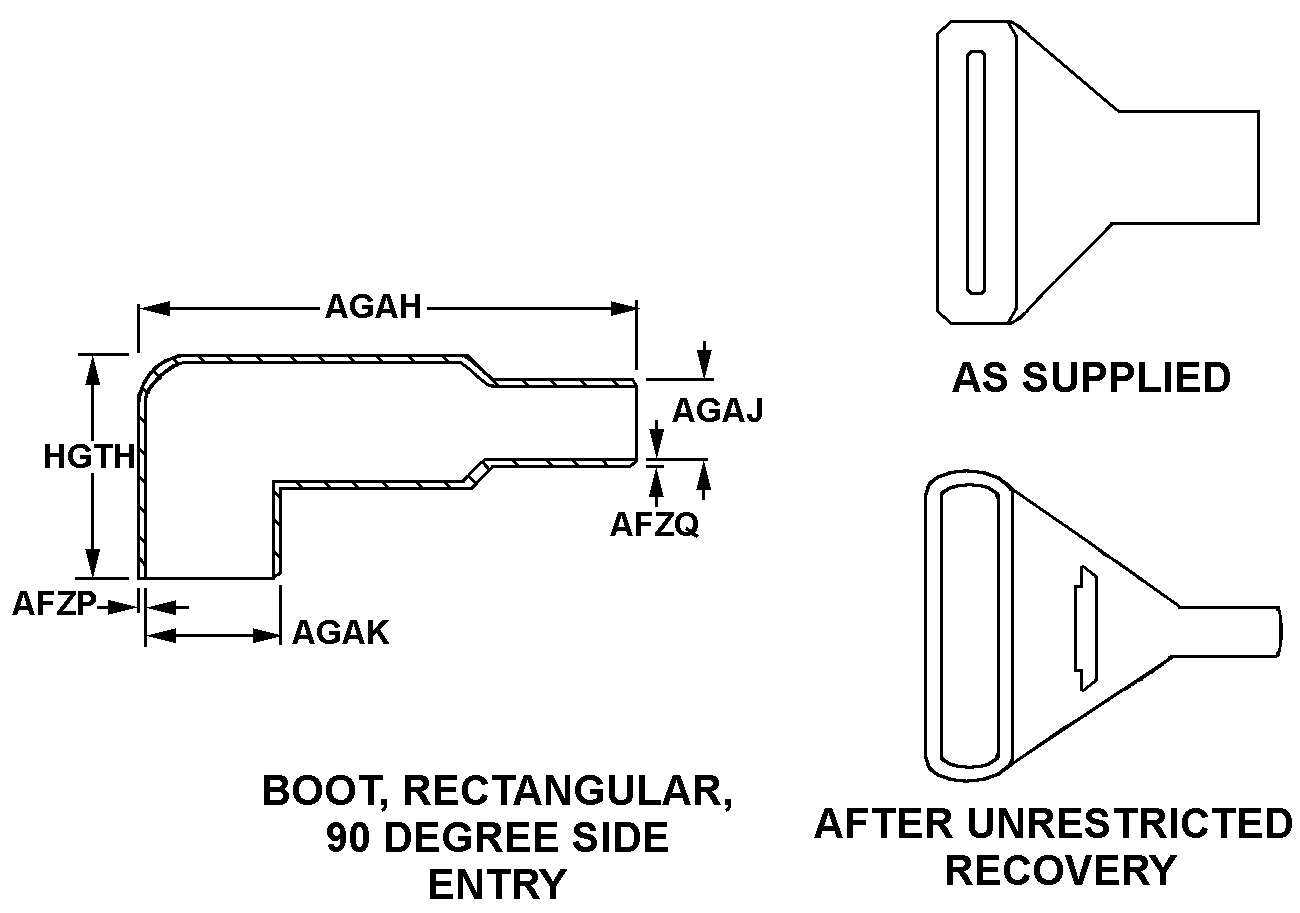

| STYLE DESIGNATOR | B20 BOOT, RECTANGULAR, 90 DEGREE SIDE ENTRY |
| SMALL END WALL THICKNESS OF MAIN BODY | 0.040 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MAIN BODY OVERALL LENGTH | 2.490 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MAIN BODY SMALL END INSIDE DIAMETER | 0.750 INCHES MINIMUM AS SUPPLIED |
| HEIGHT | 1.040 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MATERIAL | RUBBER |
| COLOR | BLACK |
| FLEXIBILITY | SEMIRIGID |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5970-01-444-2762
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
