NSN 5975-00-178-1584 M24235/11-01, M242351101, SYMBOL 1853
Product Details | STUFFING TUBE
5975-00-178-1584 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: M24235/11-01, M242351101, SYMBOL 1853, SYMBOL1853, MIL-S-24235/11, MILS2423511, 9-S-4799-L REV F, 9S4799LALT3, 9S4799LREVF, 5975-00-178-1584, 00-178-1584, 5975001781584, 001781584
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-178-1584 | 00882 ( STUFFING TUBE ) |

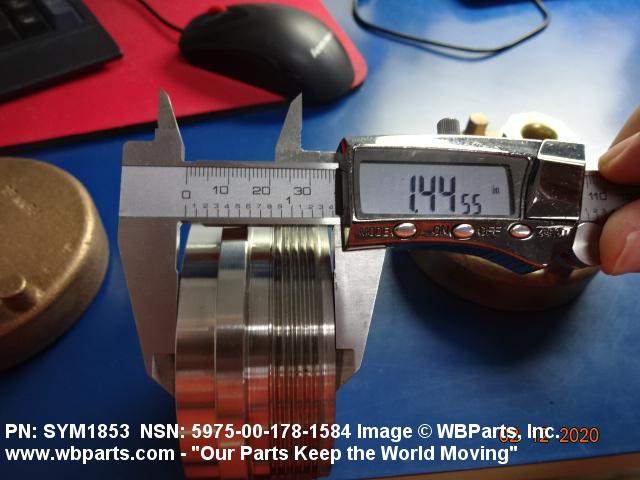

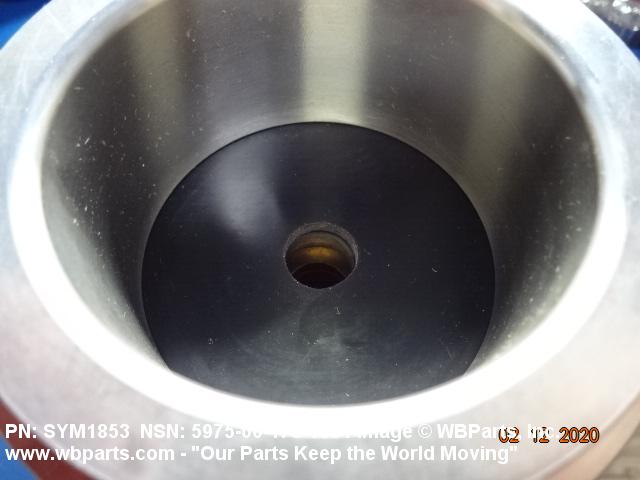

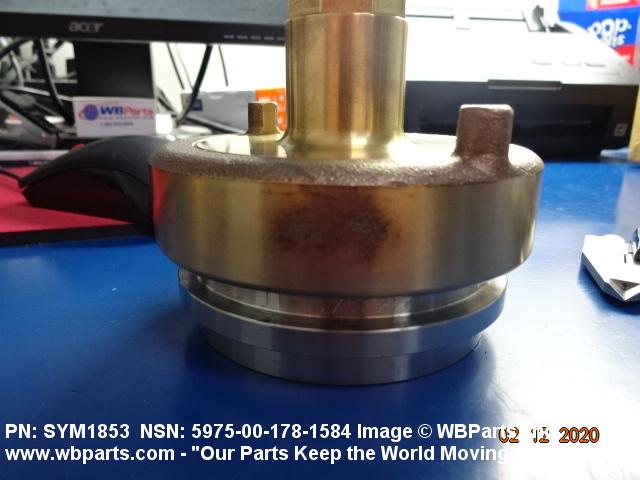

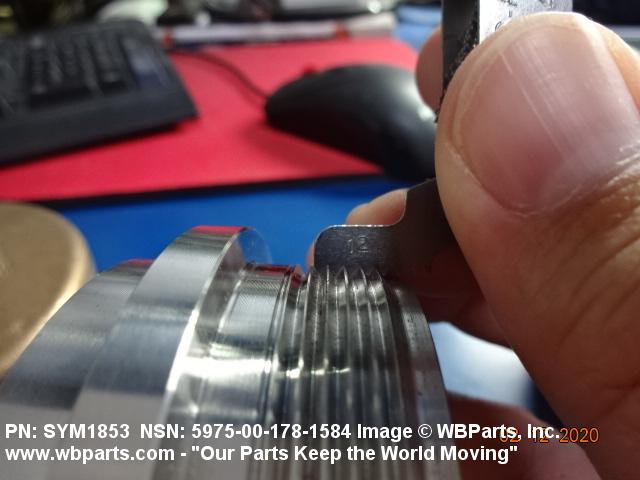

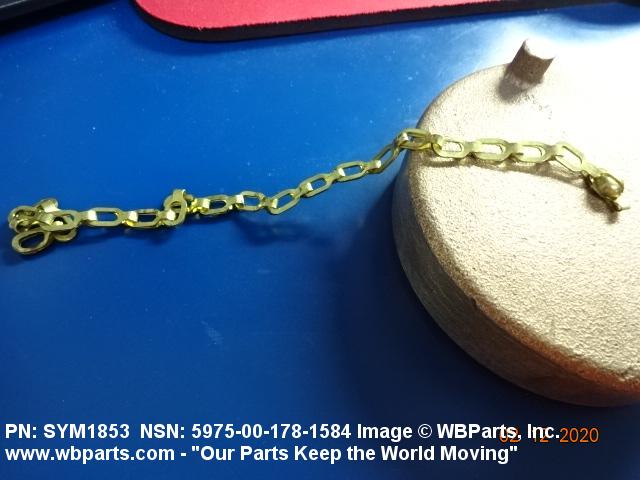

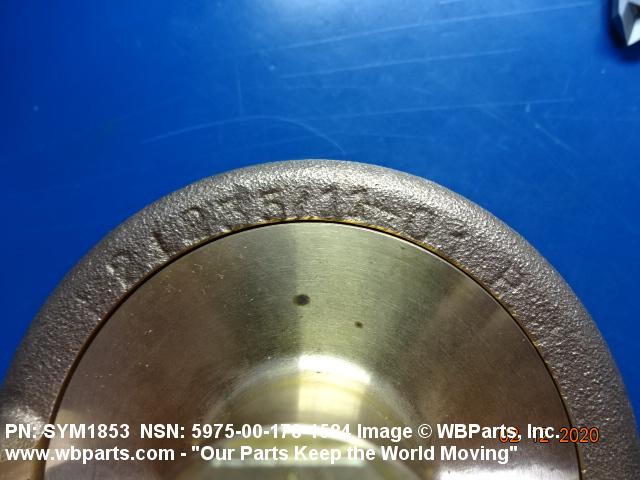

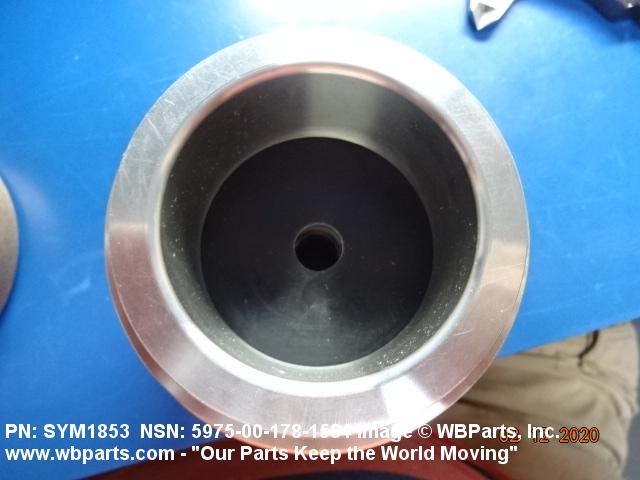

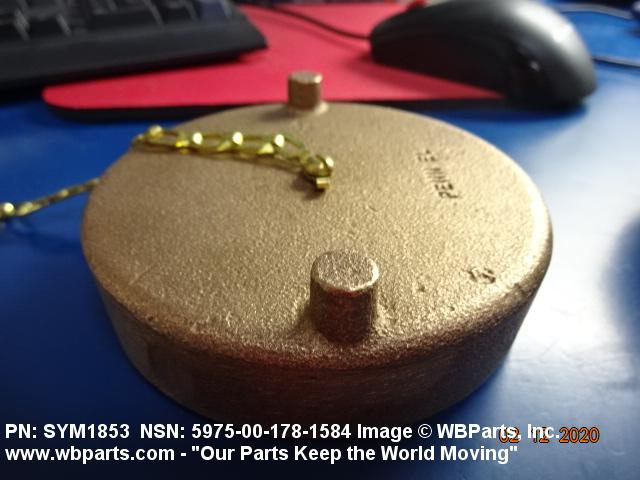

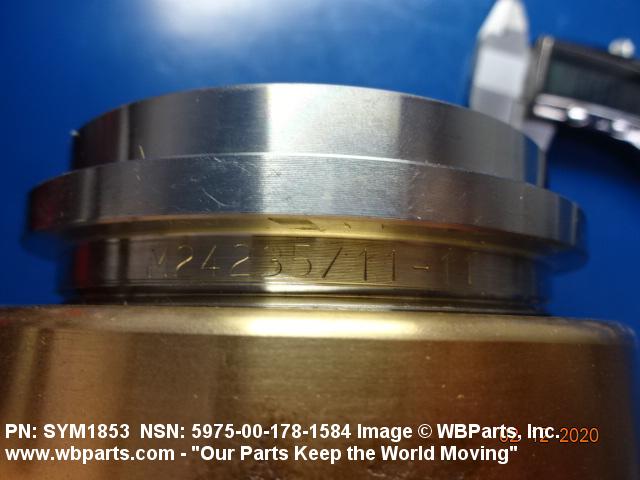

Drawings & Photos | NSN 5975-00-178-1584
Demand History | NSN 5975-00-178-1584
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M242351101 | 2025-08-232 | 20 | United States |
| 5975-00-178-1584 | 2025-08-227 | 102 | DIBBS |
| 5975-00-178-1584 | 2025-08-219 | 102 | DIBBS |
| 5975-00-178-1584 | 2025-04-111 | 73 | DIBBS |
| 5975-00-178-1584 | 2023-10-301 | 2 | CA |
| 5975-00-178-1584 | 2023-07-192 | 1 | CA |
| 5975-00-178-1584 | 2023-04-95 | 95 | DIBBS |
| 5975-00-178-1584 | 2022-01-20 | 1 | CA |
| 5975-00-178-1584 | 2021-02-32 | 1 | US |
| 5975-00-178-1584 | 2020-02-37 | 1 | United States |
| M242351101 | 2019-06-156 | 7 | United States |
| 5975-00-178-1584 | 2018-10-294 | 20 | DIBBS |
| 5975-00-178-1584 | 2018-06-168 | 33 | DIBBS |
| 5975-00-178-1584 | 2018-02-50 | 102 | DIBBS |
| 5975-00-178-1584 | 2017-12-356 | 1 | DIBBS-RFPs |
| 5975-00-178-1584 | 2016-08-228 | 42 | DIBBS |
| 5975-00-178-1584 | 2014-10-281 | 131 | DIBBS |
| 5975-00-178-1584 | 2013-11-332 | 250 | DIBBS |
| 5975-00-178-1584 | 2013-02-52 | 238 | DIBBS |
| 5975-00-178-1584 | 2011-10-291 | 191 | DIBBS |
| 5975-00-178-1584 | 2010-08-214 | 60 | DIBBS |
Cross Reference | NSN 5975-00-178-1584
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9-S-4799-L REV F | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9S4799LALT3 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| M24235/11-01 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MIL-S-24235/11 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SYMBOL 1853 | 10173 | C-B TOOL CO |
| SYMBOL 1853 | 92006 | BEARON MANUFACTURING, INC. DBA PENN EL SERVICE COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-178-1584
Related Products | NSN 5975-00-178-1584
Technical Data | NSN 5975-00-178-1584
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |

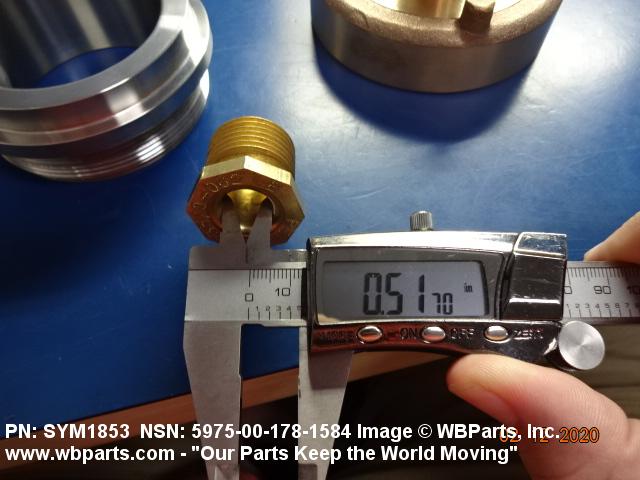

| SIZE | 0.515 INCHES NOMINAL |

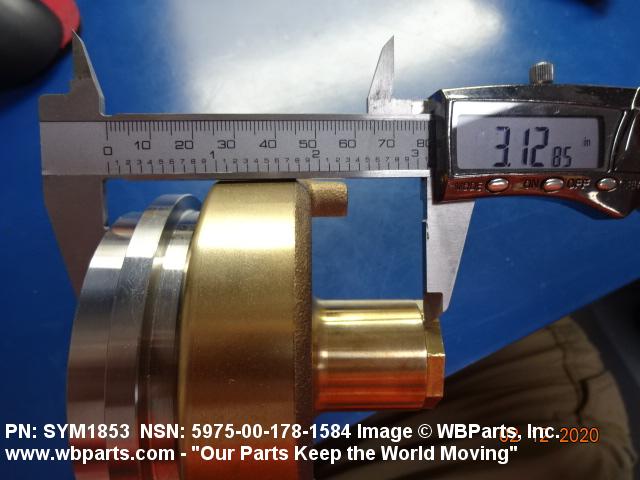

| OVERALL LENGTH | 3.125 INCHES NOMINAL |
| BORE DIAMETER | 0.500 INCHES MINIMUM |

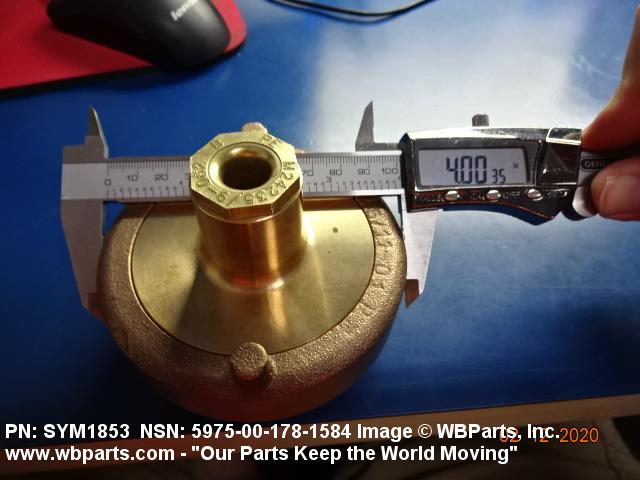

| OVERALL OUTSIDE DIAMETER | 4.000 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 1.375 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC FIRST END |
| NOMINAL THREAD SIZE | 0.073 INCHES FIRST END |
| THREAD CLASS | 2A FIRST END |
| THREAD QUANTITY PER INCH | 12 FIRST END |

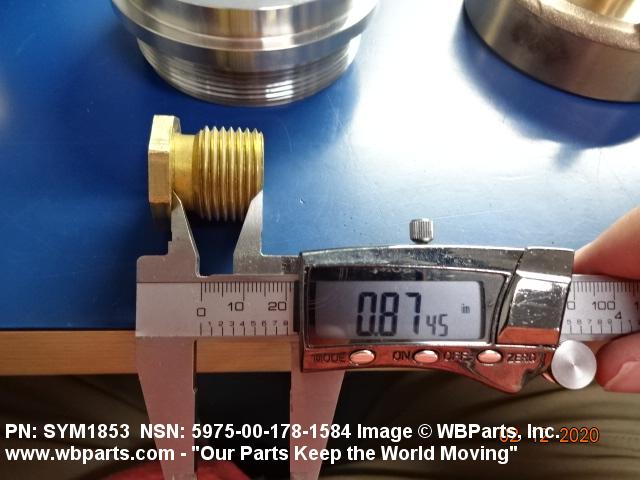

| THREAD LENGTH | 0.875 INCHES NOMINAL FIRST END |
| THREAD DIRECTION | RIGHT-HAND FIRST END |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | WELDED |

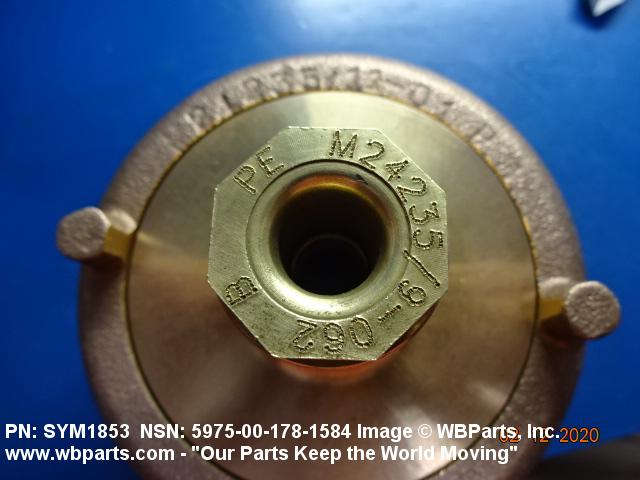

| SPECIAL MARKINGS | B |
| SPECIAL FEATURES | WELD MOUNTED BY FLANGE AND 3.250 IN.DIA. BODY |
Restrictions/Controls & Freight Information | NSN 5975-00-178-1584
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-178-1584
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
