5975-00-296-3861 - STUFFING TUBE PLUG, MS16173152, MS16173-152, M19622/14-00004

Product Details | STUFFING TUBE PLUG

5975-00-296-3861 An item designed to be fitted into the body of a STUFFING TUBE in order to prevent the leakage of liquids and/or gases through the opening in the absence of the cable normally passing through the tube.

Part Alternates: MS16173152, MS16173-152, M19622/14-00004, M196221400004, M19622140004, M19622-14-0004, MILS1962214, MIL-S-19622-14, 5975-00-296-3861, 00-296-3861, 5975002963861, 002963861

Electrical and Electronic Equipment Components | Electrical Hardware and Supplies

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-296-3861	03882 ( PLUG, STUFFING TUBE )

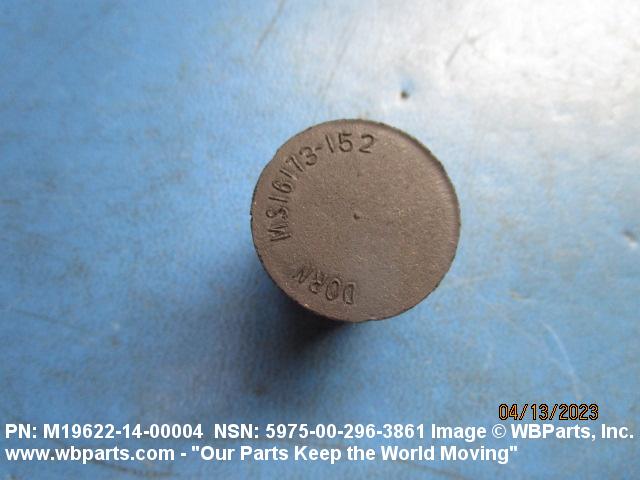

Drawings & Photos | NSN 5975-00-296-3861

Part Number	Request Date	QTY	Origin
5975-00-296-3861	2024-03-04	2	UK
M19622140004	2023-03-17	3	United States
M19622140004	2023-03-17	3	United States
5975-00-296-3861	2022-03-21	15	United States
MILS1962214	2019-03-13	6	CA
5975-00-296-3861	2019-01-03	1518	DIBBS
5975-00-296-3861	2017-10-01	1478	DIBBS
5975-00-296-3861	2014-10-21	2	US
5975-00-296-3861	2012-12-14	150	United States
5975-00-296-3861	2012-09-13	1961	DIBBS
5975-00-296-3861	2012-08-29	1961	DIBBS
5975-00-296-3861	2012-07-31	1284	DIBBS
5975-00-296-3861	2012-07-16	1284	DIBBS
5975-00-296-3861	2011-06-06	1376	DIBBS
5975-00-296-3861	2011-02-22	600	United States
M19622140004	2010-09-08	8	US

Cross Reference | NSN 5975-00-296-3861

Part Number	Cage Code	Manufacturer
M19622-14-0004	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M19622/14-00004	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-19622-14	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS16173-152	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5975-00-296-3861

Compare

Related Products | NSN 5975-00-296-3861

5975-00-296-3862, 5975-00-296-3863, 5975-00-296-4036, 5975-00-296-4041, 5975-00-296-4092

Technical Data | NSN 5975-00-296-3861

Characteristic	Specifications
MATERIAL	RUBBER CHLOROPRENE CLASS CR OVERALL
SIZE	0.825 INCHES NOMINAL

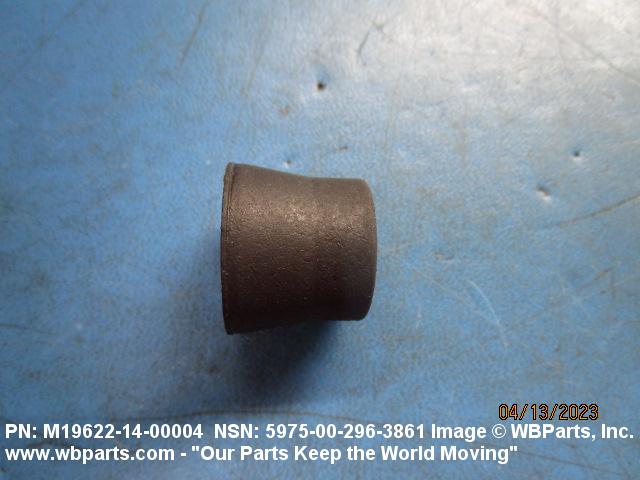

STYLE DESIGNATOR	32 TAPERED SKIRT

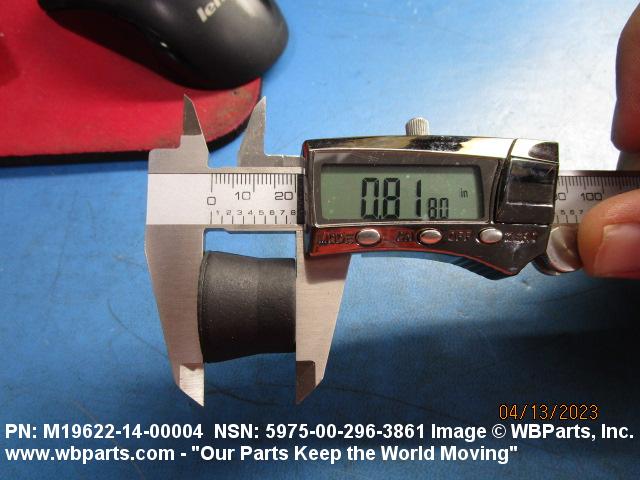

OVERALL LENGTH	0.813 INCHES NOMINAL
BODY LENGTH	0.343 INCHES NOMINAL

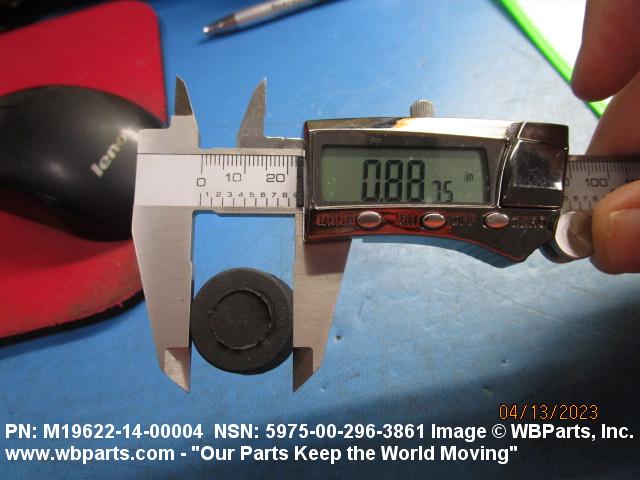

BODY OUTSIDE DIAMETER	0.908 INCHES NOMINAL

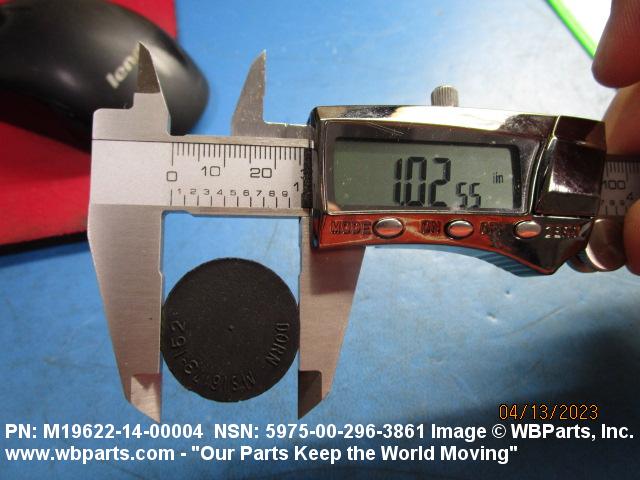

OVERALL OUTSIDE DIAMETER	1.052 INCHES NOMINAL
DISK THICKNESS	0.063 INCHES NOMINAL
TAPER ANGLE	10.0 DEGREES NOMINAL

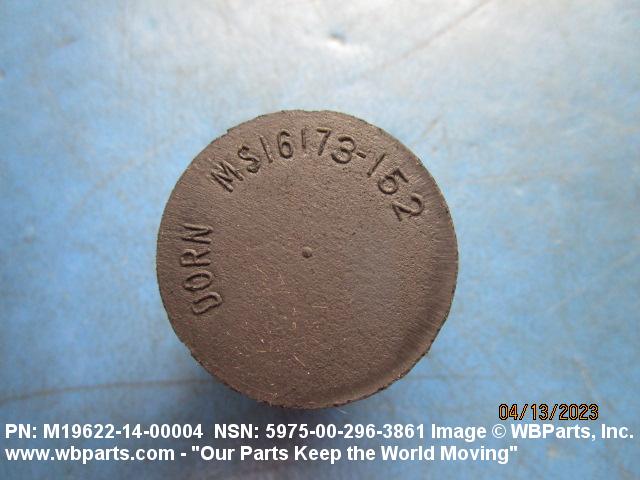

SPECIAL MARKINGS	4 OR 4T
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-S-19622-14
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M19622-14-0004

Restrictions/Controls & Freight Information | NSN 5975-00-296-3861

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093750	BUNGS/PLUGS NOI IN PKGS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5975-00-296-3861

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
