NSN 5975-00-436-1676 MILS23920, 1B20FTSH0F23, 00-436-1676
Product Details | STUFFING TUBE
5975-00-436-1676 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: MILS23920, 1B20FTSH0F23, 5975-00-436-1676, 00-436-1676, 5975004361676, 004361676
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 APR 1969 | 00-436-1676 | 00882 ( STUFFING TUBE ) |
Drawings & Photos | NSN 5975-00-436-1676
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-436-1676
Technical Data | NSN 5975-00-436-1676
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP TS8620 OVERALL |
| SIZE | 0.350 INCHES NOMINAL |

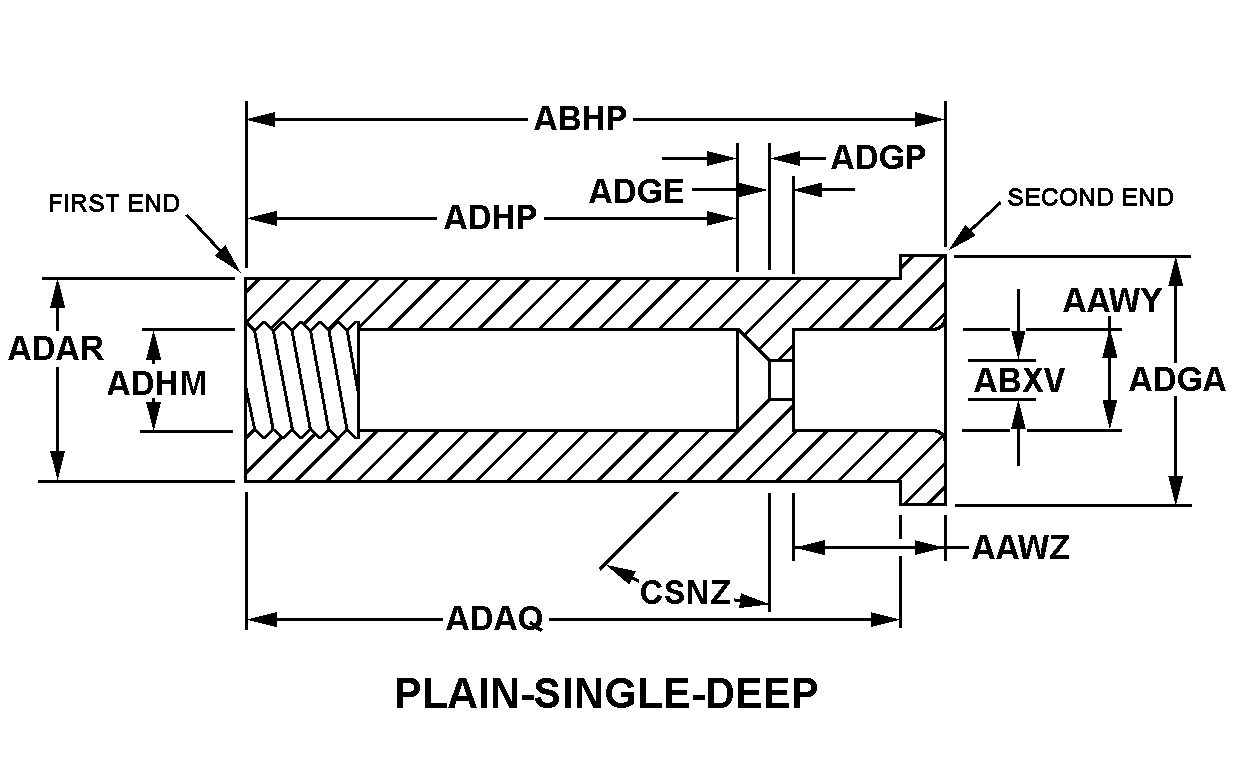

| STYLE DESIGNATOR | 62 PLAIN-SINGLE-DEEP |
| COUNTERBORE DIAMETER | 0.874 INCHES MINIMUM AND 0.876 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 1.187 INCHES MINIMUM AND 1.192 INCHES MAXIMUM |
| OVERALL LENGTH | 5.625 INCHES NOMINAL |
| BORE DIAMETER | 0.390 INCHES NOMINAL |
| BODY LENGTH | 5.250 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.619 INCHES MINIMUM AND 1.621 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| BORE LENGTH | 0.121 INCHES NOMINAL |
| SECOND END CHAMFER ANGLE | 30.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF FIRST END |
| NOMINAL THREAD SIZE | 1.000 INCHES FIRST END |
| THREAD CLASS | 2B FIRST END |
| THREAD QUANTITY PER INCH | 12 FIRST END |
| THREAD LENGTH | 1.000 INCHES NOMINAL FIRST END |
| THREAD DIRECTION | RIGHT-HAND FIRST END |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | WELDED |
| FURNISHED ITEMS | BUSHING AND GLAND NUT AND GLAND RING AND PACKING AND WASHER |
| SPECIAL FEATURES | CABLE 20 FEET LONG |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND B CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS23920 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 1B20FTSH0F23 |
Restrictions/Controls & Freight Information | NSN 5975-00-436-1676
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-436-1676
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
