NSN 5975-01-324-8980 16019125, 160-19125, 01-324-8980
Product Details | STUFFING TUBE
5975-01-324-8980 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: 16019125, 160-19125, 5975-01-324-8980, 01-324-8980, 5975013248980, 013248980
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 AUG 1990 | 01-324-8980 | 00882 ( STUFFING TUBE ) |

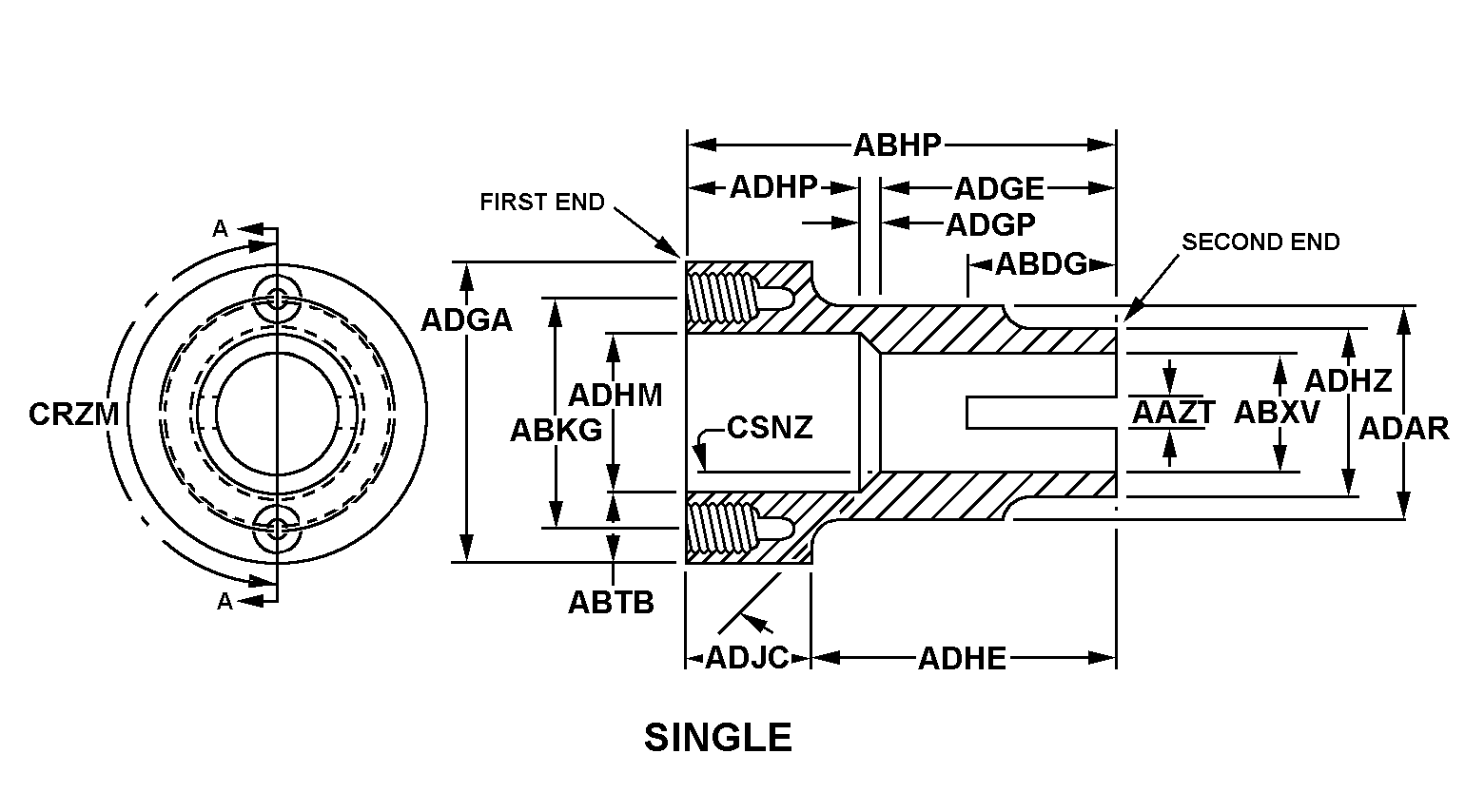

Drawings & Photos | NSN 5975-01-324-8980
Cross Reference | NSN 5975-01-324-8980
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 160-19125 | 81982 | HYDRO-AIRE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-324-8980
Technical Data | NSN 5975-01-324-8980
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 55 SINGLE |
| OVERALL LENGTH | 2.870 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.220 INCHES NOMINAL |
| BORE DIAMETER | 0.390 INCHES NOMINAL |
| BORE LENGTH | 0.590 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 0.614 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 0.650 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE EDGE OF FIRST PACKING CHAMBER TO EDGE OF MOUNTING FLANGE | 0.210 INCHES NOMINAL |
| MOUNTING METHOD | FLANGE |
| SPECIAL FEATURES | KC-135 ACFT,CFM-56; OUTLET,FITTING,ELECT. |
| MANUFACTURERS CODE | 81982 |
| DESIGN CONTROL REFERENCE | 160-19125 |
Restrictions/Controls & Freight Information | NSN 5975-01-324-8980
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
