NSN 5975-01-525-1419 12145403, 12145-403, 01-525-1419
Product Details | STUFFING TUBE
5975-01-525-1419 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: 12145403, 12145-403, 5975-01-525-1419, 01-525-1419, 5975015251419, 015251419
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 OCT 2004 | 01-525-1419 | 00882 ( STUFFING TUBE ) |
Drawings & Photos | NSN 5975-01-525-1419
Cross Reference | NSN 5975-01-525-1419
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12145-403 | 72166 | B.W. ELLIOTT MANUFACTURING CO., LLC DBA ELLIOTT MANUFACTURING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-525-1419
Technical Data | NSN 5975-01-525-1419
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |
| SIZE | 2.500 INCHES NOMINAL |

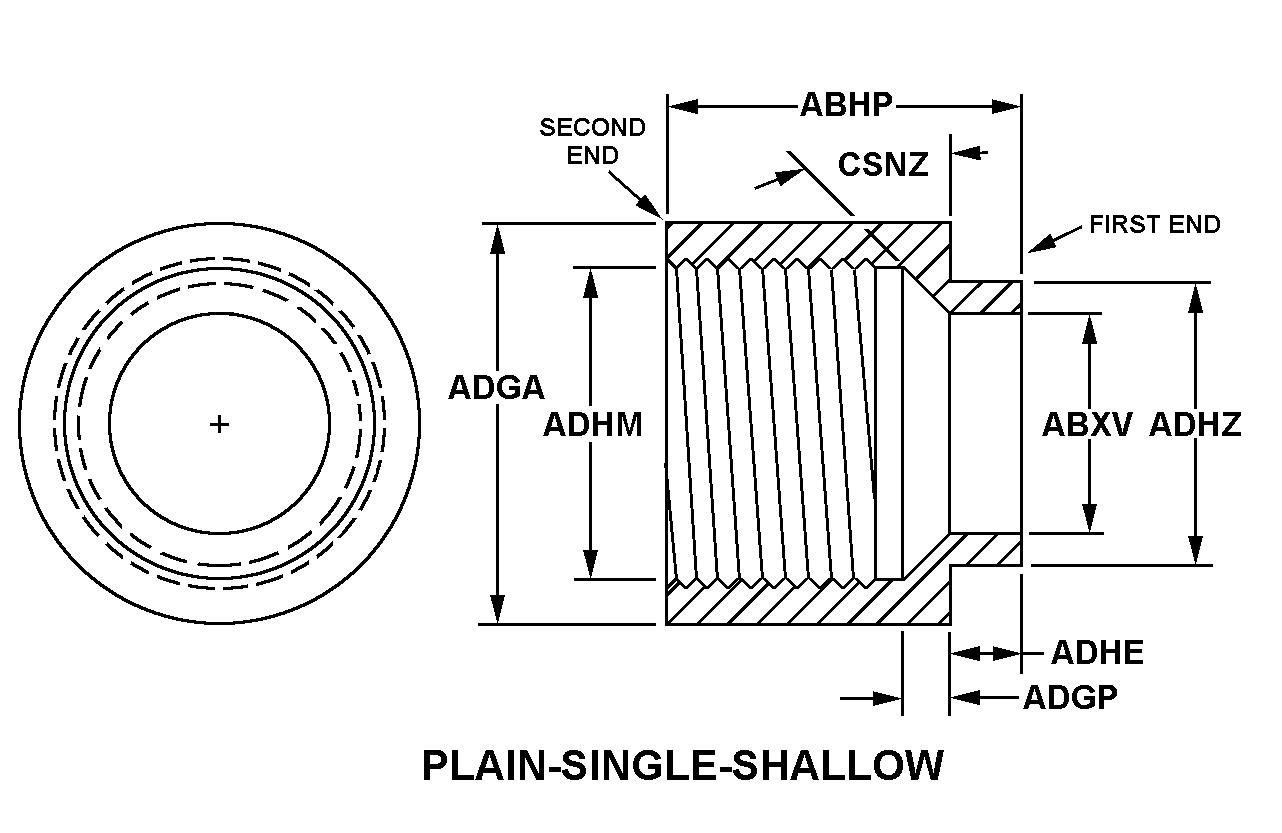

| STYLE DESIGNATOR | 68 PLAIN-SINGLE-SHALLOW |
| OVERALL LENGTH | 6.500 INCHES MAXIMUM |
| MOUNTING END LENGTH | 4.190 INCHES NOMINAL |
| MOUNTING OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| SPECIAL FEATURES | STUFFING BOX |
Restrictions/Controls & Freight Information | NSN 5975-01-525-1419
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
