NSN 5985-00-024-9672 SR2ND, 355-904-001, 00-024-9672
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-024-9672 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: SR2ND, 355-904-001, 5985-00-024-9672, 00-024-9672, 5985000249672, 355904001, 000249672
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 OCT 1972 | 00-024-9672 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

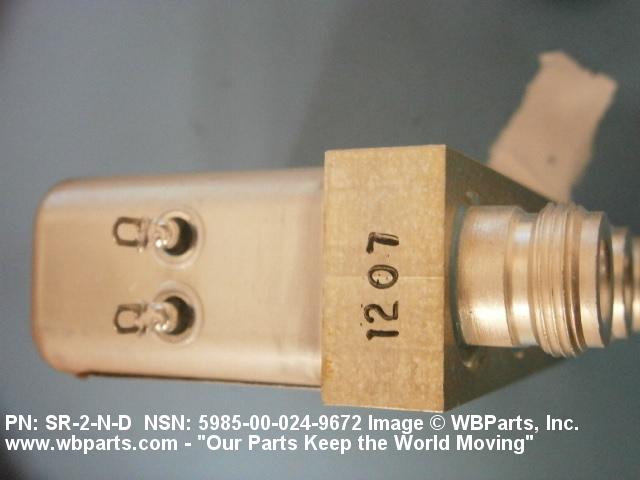

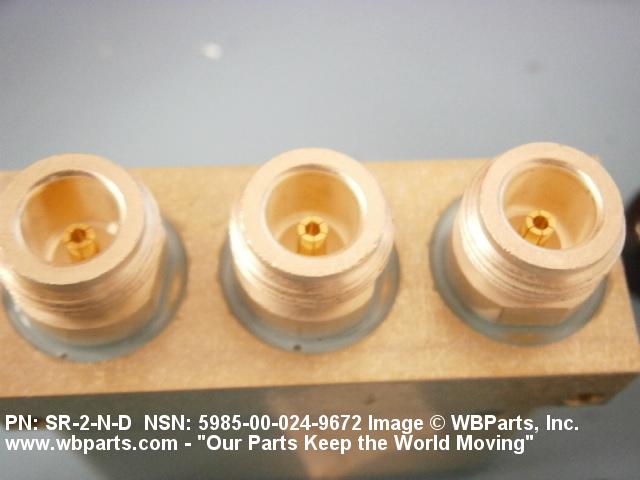

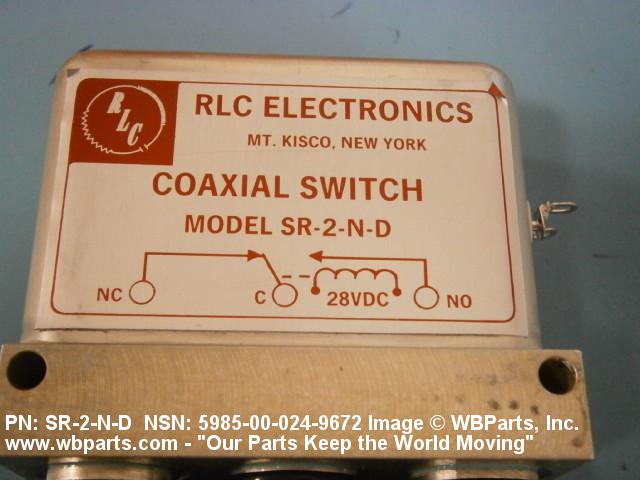

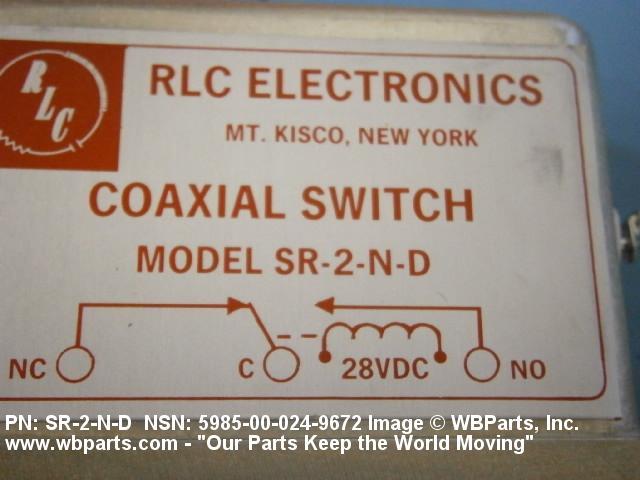

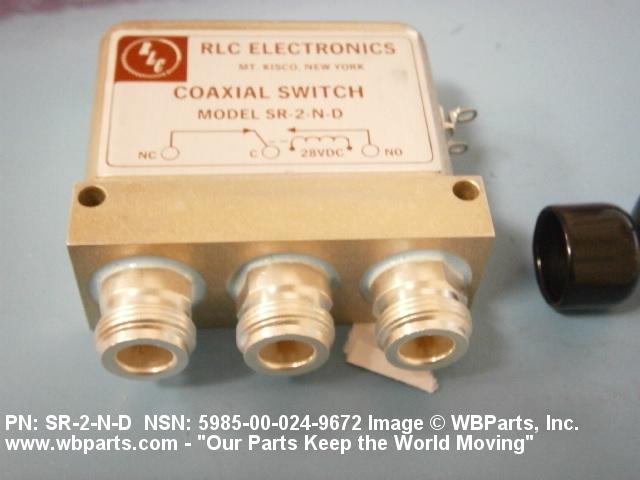

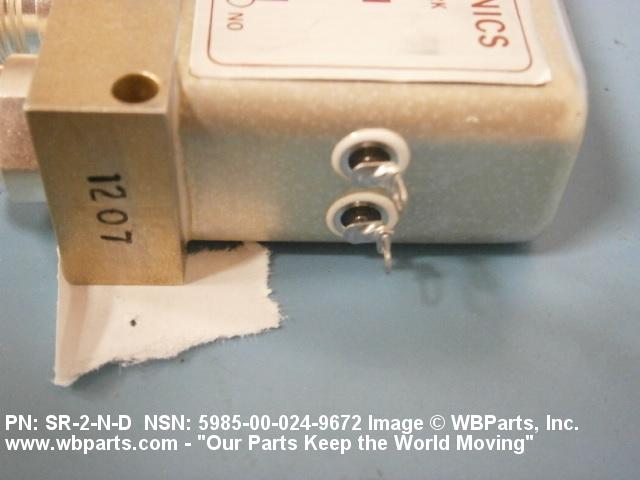

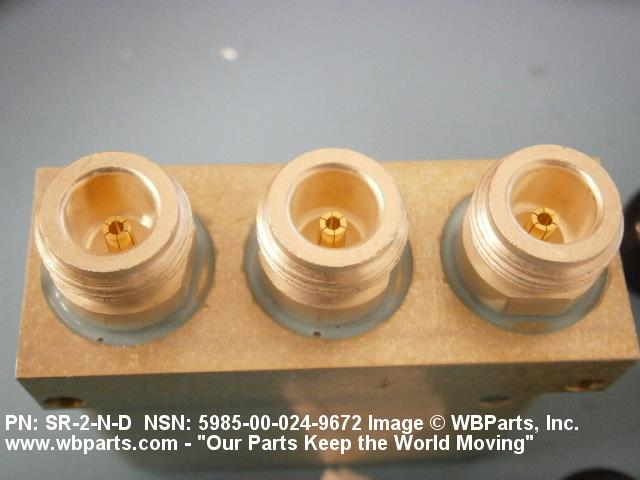

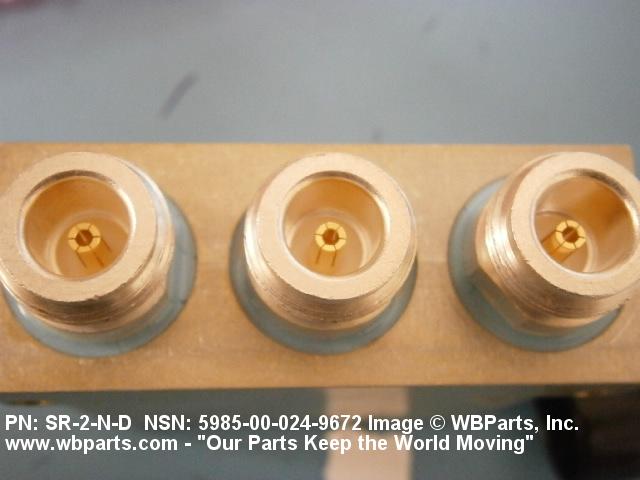

Drawings & Photos | NSN 5985-00-024-9672
Demand History | NSN 5985-00-024-9672
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 355-904-001 | 2022-09-254 | 5 | DIBBS |
| SR2ND | 2022-09-254 | 5 | DIBBS |
| 355-904-001 | 2019-10-274 | 3 | DIBBS |
| SR2ND | 2019-10-274 | 3 | DIBBS |
| 355-904-001 | 2019-09-262 | 3 | DIBBS |
| SR2ND | 2019-09-262 | 3 | DIBBS |
| 5985-00-024-9672 | 2013-03-87 | 7 | DIBBS |
| 5985-00-024-9672 | 2013-03-64 | 2 | DIBBS |
| 5985-00-024-9672 | 2013-01-03 | 3 | DIBBS |
| 5985-00-024-9672 | 2012-12-339 | 3 | DIBBS |
| 5985-00-024-9672 | 2012-09-272 | 2 | DIBBS |
| 5985-00-024-9672 | 2012-08-244 | 6 | DIBBS |
| 5985-00-024-9672 | 2012-02-40 | 2 | MY |
| 5985-00-024-9672 | 2012-02-38 | 2 | United States |
| 5985-00-024-9672 | 2010-07-211 | 10 | DIBBS |
| SR2ND | 2009-06-174 | 1 | US |
| SR2ND | 2008-04-116 | 8 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-024-9672
Related Products | NSN 5985-00-024-9672
Technical Data | NSN 5985-00-024-9672
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 GIGAHERTZ MINIMUM AND 7.0 GIGAHERTZ MAXIMUM 1ST FREQUENCY VOLTAGE STANDING WAVE RATIO 0.0 GIGAHERTZ MINIMUM AND 7.0 GIGAHERTZ MAXIMUM 1ST FREQUENCY INSERTION LOSS REFERENCE 7.0 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM 2ND FREQUENCY VOLTAGE STANDING WAVE RATIO 7.0 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM 2ND FREQUENCY INSERTION LOSS REFERENCE 0.0 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM SINGLE FREQUENCY RF POWER HANDLING |
| RF POWER HANDLING CAPABILITY | 50.0 WATTS AVERAGE SINGLE |
| VOLTAGE STANDING WAVE RATIO | 1.25 1ST 1.60 2ND |
| INSERTION LOSS IN DECIBELS | 0.30 1ST 0.60 2ND |
| MINIMUM CROSSTALK RATING IN DECIBELS | 60.0 SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.3 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 2 TURRET AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 15.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| BODY STYLE | 69B RECTANGULAR |
| OVERALL LENGTH | 2.620 INCHES MINIMUM AND 2.680 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.850 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| MATERIAL | STEEL BODY |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.160 INCHES MINIMUM AND 0.180 INCHES MAXIMUM |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE SINGLE MOUNTING FACILITY PATTERN |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.370 INCHES NOMINAL SINGLE MOUNTING FACILITY PATTERN |
| III UNPACKAGED UNIT WEIGHT | 9.000 OUNCES |
Restrictions/Controls & Freight Information | NSN 5985-00-024-9672
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-024-9672
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
