Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-728-0207 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: CR159N, CR-159N, 300-11002-1, 300-11002-2, 32870191, 32-87019-1, 3287019301, 32-87019-301, 5985-00-728-0207, 00-728-0207, 5985007280207, 300110021, 300110022, 007280207
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 FEB 1968 | 00-728-0207 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

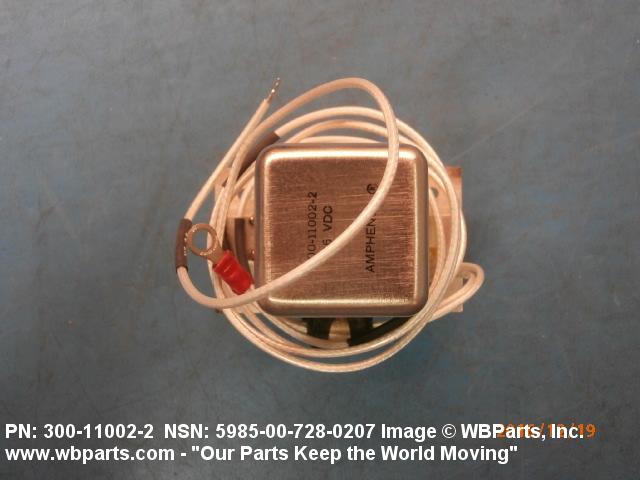

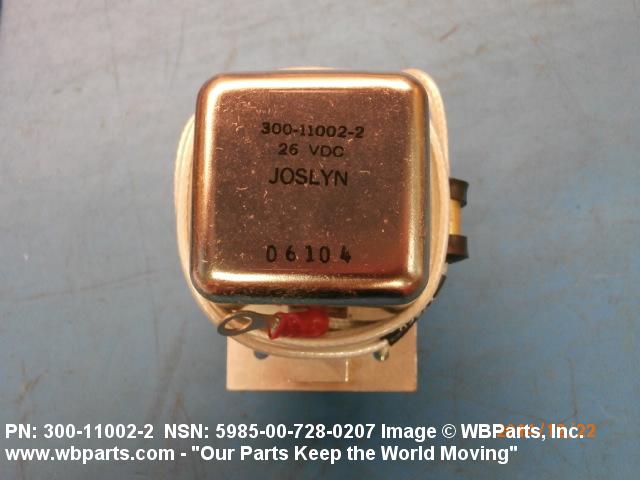

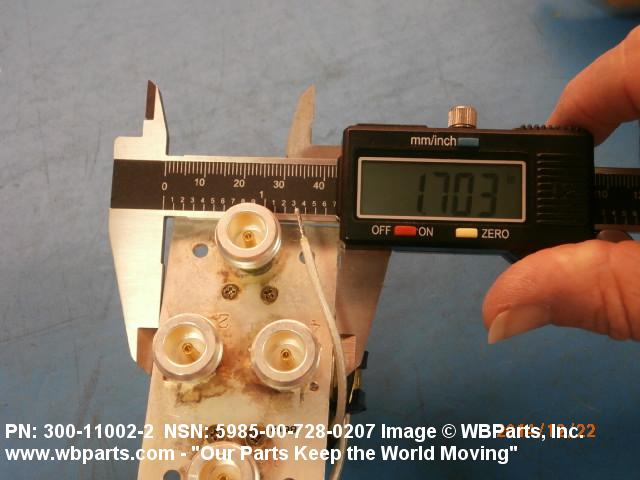

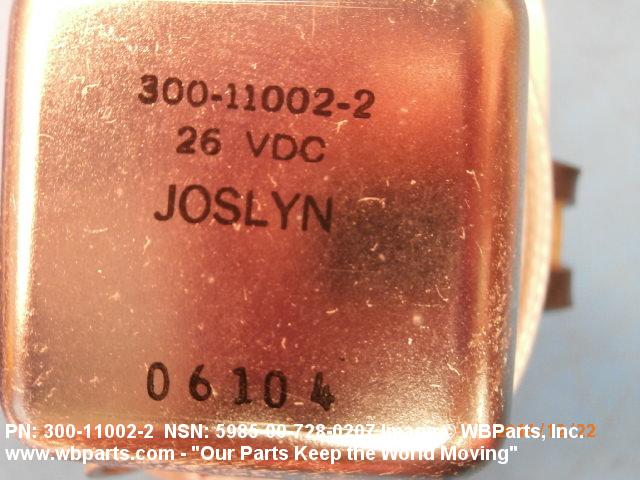

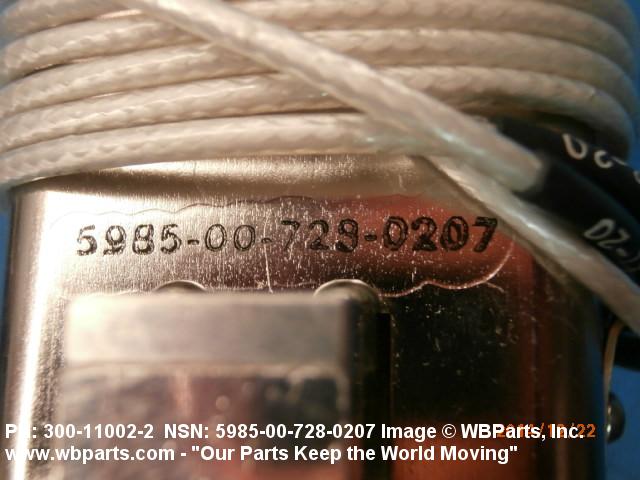

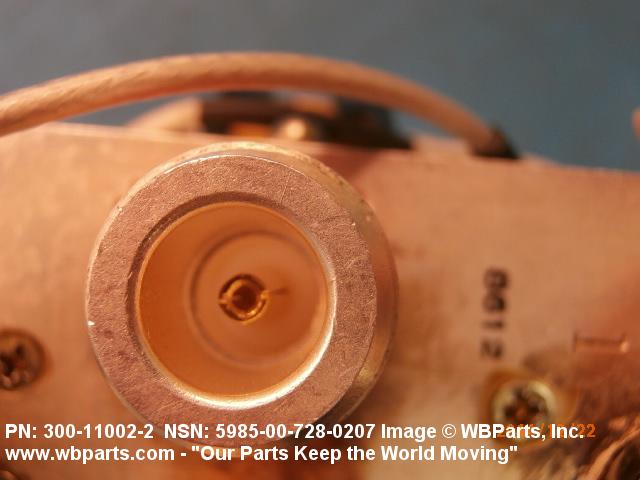

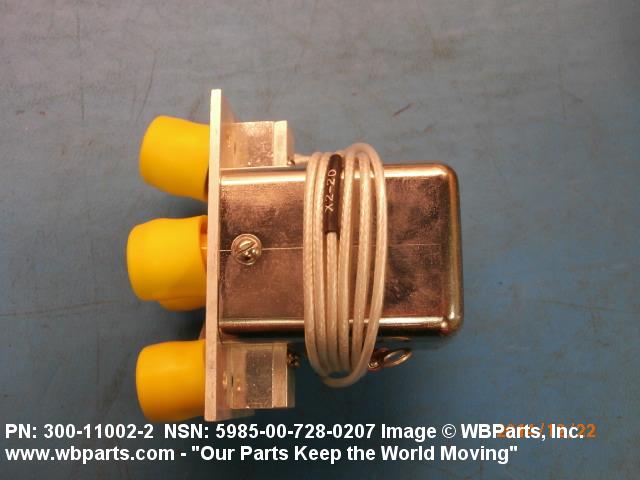

Drawings & Photos | NSN 5985-00-728-0207
Demand History | NSN 5985-00-728-0207
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-728-0207 | 2016-12-09 | 2 | United States |
| 5985-00-728-0207 | 2015-01-30 | 10 | Turkey |
| 5985-00-728-0207 | 2014-12-15 | 2 | United States |
| 5985-00-728-0207 | 2014-12-11 | 2 | United States |
| 5985-00-728-0207 | 2014-09-17 | 1 | United States |
| 5985-00-728-0207 | 2013-02-08 | 20 | DIBBS |
| 5985-00-728-0207 | 2012-11-07 | 20 | DIBBS |
| 5985-00-728-0207 | 2012-04-04 | 20 | DIBBS |
| 5985-00-728-0207 | 2010-11-10 | 26 | DIBBS |
| 5985-00-728-0207 | 2009-08-03 | 12 | DIBBS |
| 5985-00-728-0207 | 2009-07-24 | 29 | DIBBS |
Cross Reference | NSN 5985-00-728-0207

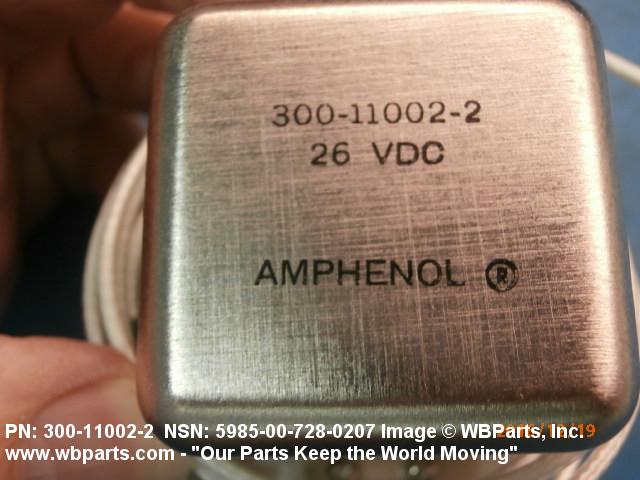

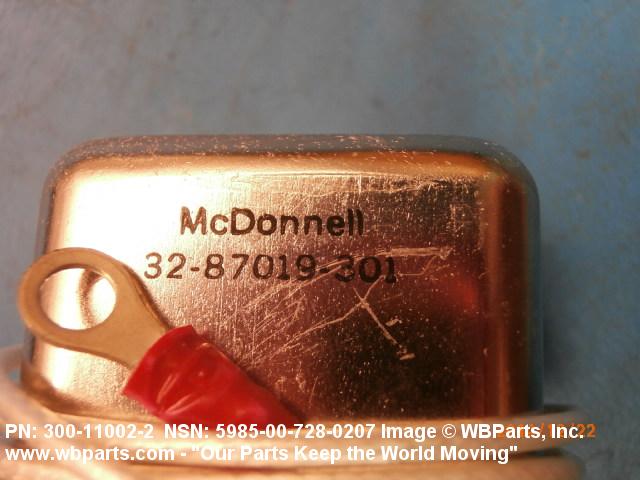

| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 300-11002-1 | 62165 | ARROWSMITH SHELBURNE INC |
| 300-11002-2 | 62165 | ARROWSMITH SHELBURNE INC |
| 300-11002-2 | 74868 | AMPHENOL CORPORATION |
| 32-87019-1 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 32-87019-301 | 76301 | BOEING COMPANY, THE DBA BOEING |
| CR-159N | 62165 | ARROWSMITH SHELBURNE INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-00-728-0207
Related Products | NSN 5985-00-728-0207
5985-00-728-0870, 5985-00-728-2444, 5985-00-728-2690, 5985-00-728-3179, 5985-00-728-3381
Technical Data | NSN 5985-00-728-0207

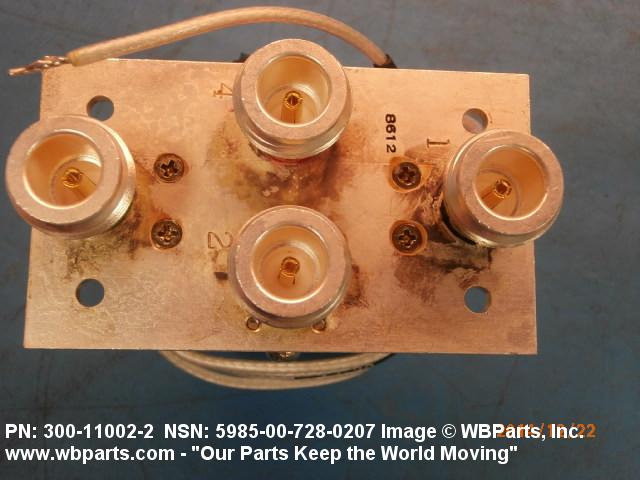

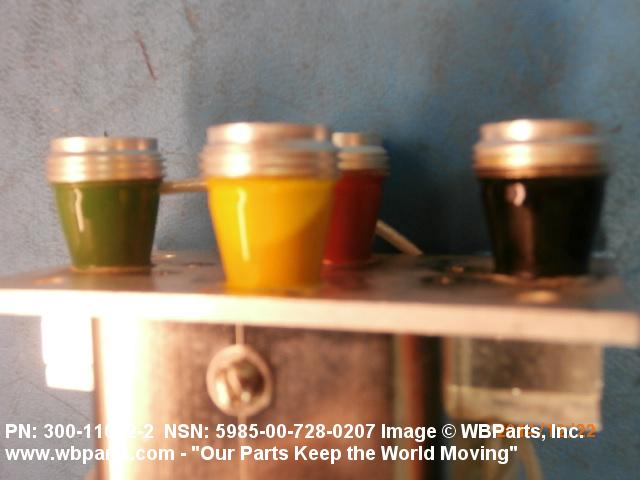

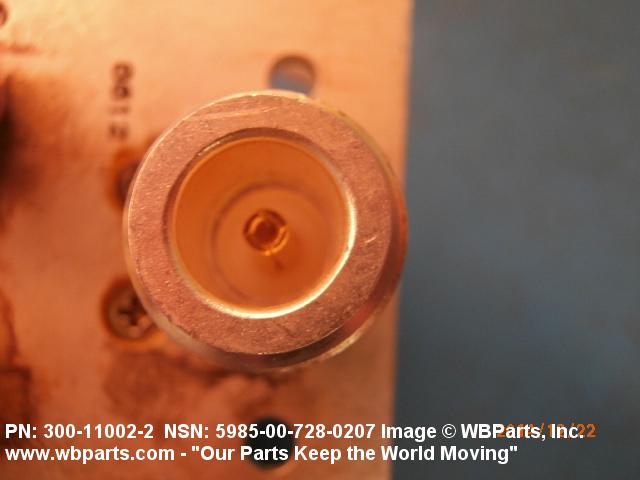

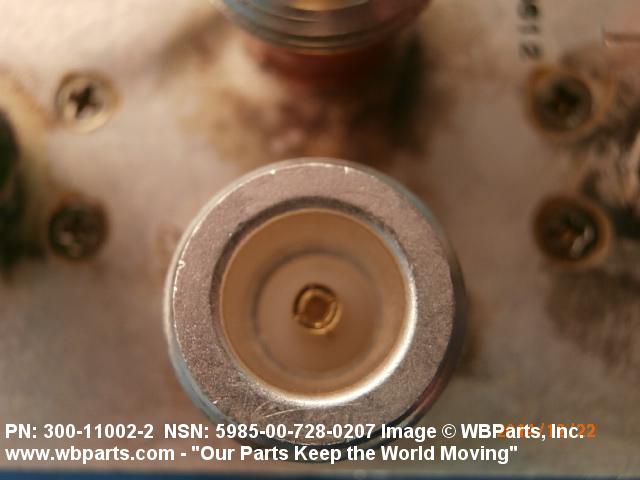

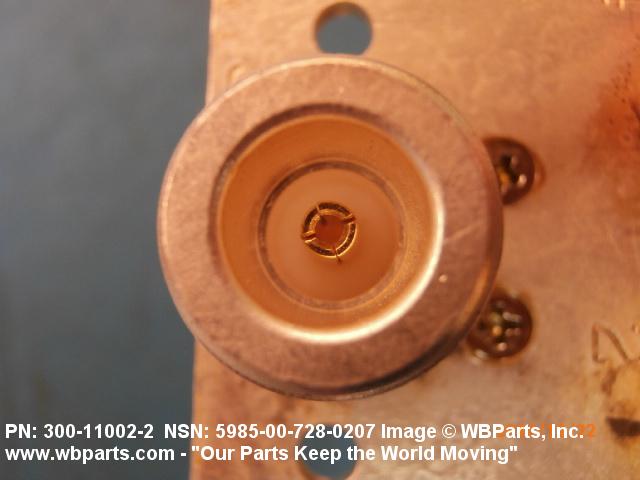

| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR VOLTAGE IN VOLTS | 26.0 NOMINAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG AND 4 PLUG, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | MALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |

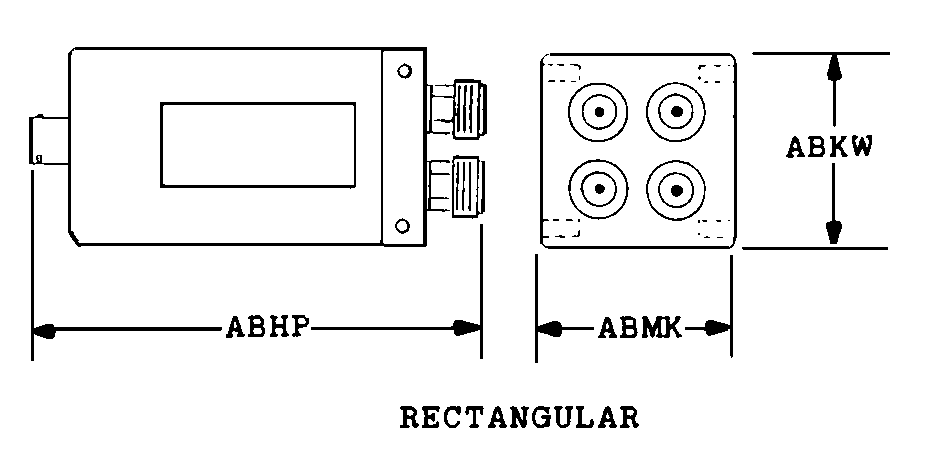

| BODY STYLE | 27B RECTANGULAR |
| OVERALL LENGTH | 2.875 INCHES NOMINAL |

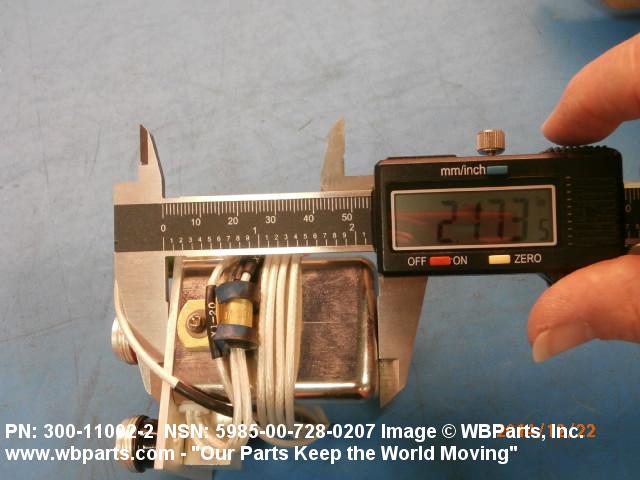

| OVERALL HEIGHT | 2.188 INCHES NOMINAL |

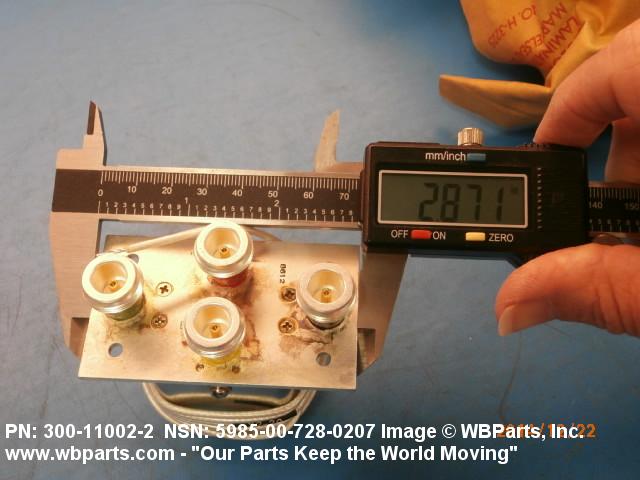

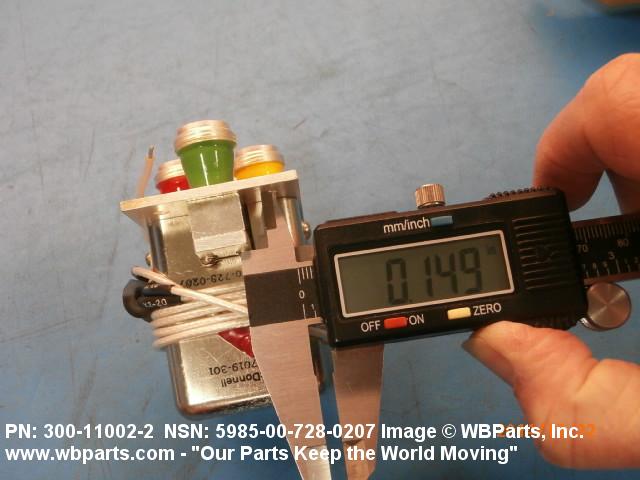

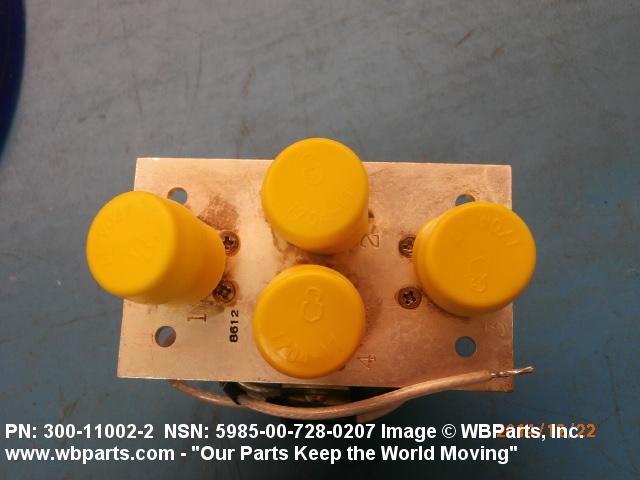

| OVERALL WIDTH | 1.688 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.147 INCHES MINIMUM AND 0.154 INCHES MAXIMUM |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY PATTERN |
Restrictions/Controls & Freight Information | NSN 5985-00-728-0207
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-728-0207
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
