5985-00-728-3179 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: B89214, B89-214, 9533, 953-3, 5985-00-728-3179, 00-728-3179, 5985007283179, 007283179
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 FEB 1968 | 00-728-3179 | 00838 ( ATTENUATOR, VARIABLE ) |

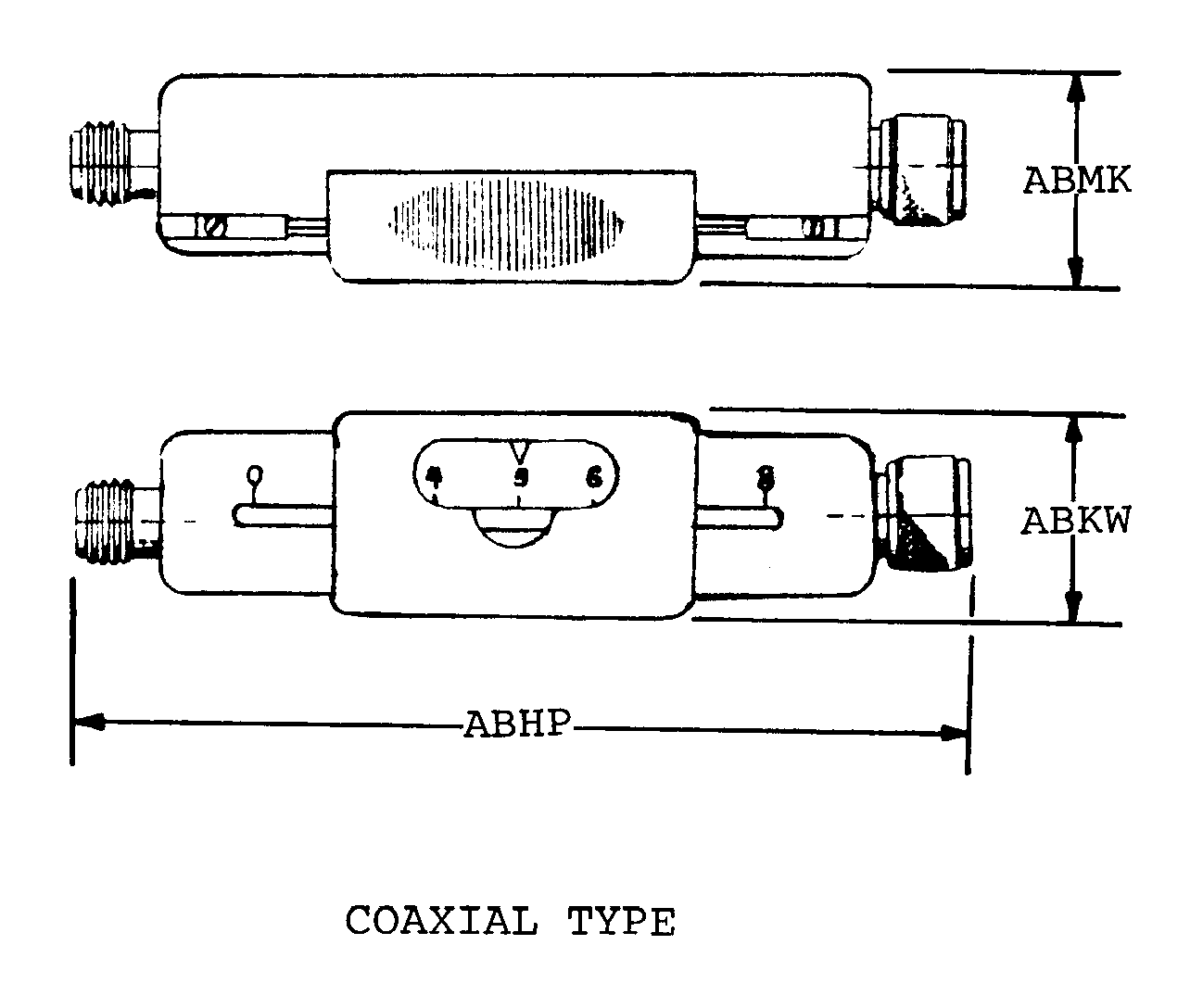

Drawings & Photos | NSN 5985-00-728-3179
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5985-00-728-3179
5985-00-728-3381, 5985-00-728-4063, 5985-00-728-4220, 5985-00-728-4242, 5985-00-728-4621
Technical Data | NSN 5985-00-728-3179
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 1.000 GIGAHERTZ MINIMUM AND 11.000 GIGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 50.0 INPUT-OUTPUT |
| VOLTAGE STANDING WAVE RATIO | 1.50 |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 0.7 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 3.0 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |
| BODY STYLE | 17A COAXIAL TYPE |
| OVERALL LENGTH | 8.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.031 INCHES NOMINAL |
| OVERALL WIDTH | 1.188 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 KNOB |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, COAXIAL, FEMALE AND 1 CONNECTOR, COAXIAL, MALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 CONNECTOR |
