Product Details | ANTENNA SUPPORT
5985-00-099-0064 An item which consists of a mechanical or structural part designed to overcome the force of gravity, but is not intended to be the principal sustaining member of an antenna.
Part Alternates: 40801, 5985-00-099-0064, 00-099-0064, 5985000990064, 000990064
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-099-0064 | 02487 ( SUPPORT, ANTENNA ) |
Drawings & Photos | NSN 5985-00-099-0064
Cross Reference | NSN 5985-00-099-0064
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 40801 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5985-00-099-0064
5985-00-099-0069, 5985-00-099-0071, 5985-00-099-0111, 5985-00-099-0706, 5985-00-099-1985
Technical Data | NSN 5985-00-099-0064
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MOUNTING METHOD | UNTHREADED HOLES |
| MOUNTING FACILITY QUANTITY | 3 |
| MOUNTING HOLE TYPE | PLAIN |
| MOUNTING HOLE DIAMETER | 0.205 INCHES NOMINAL |
| MOUNTING FACILITY CIRCLE RADIUS | 2.250 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.750 INCHES NOMINAL |

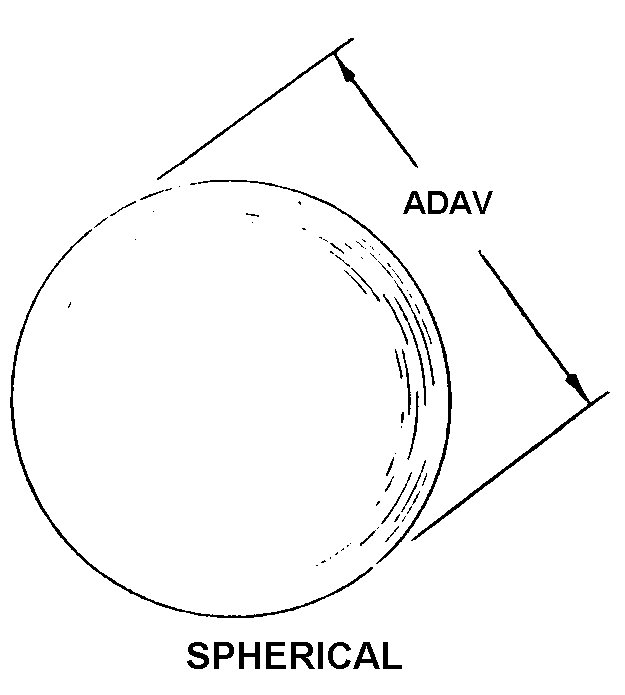

| BASIC SHAPE STYLE | 10A SPHERICAL |
| OVERALL DIAMETER | 2.750 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | RADAR SET,AN/CPN-4 |
Restrictions/Controls & Freight Information | NSN 5985-00-099-0064
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
