NSN 5985-00-111-6058 4228V, 42-28V, 00-111-6058
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-111-6058 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 4228V, 42-28V, 5985-00-111-6058, 00-111-6058, 5985001116058, 001116058
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-111-6058 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-00-111-6058
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-111-6058
Technical Data | NSN 5985-00-111-6058
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 500.0 MEGAHERTZ NOMINAL SINGLE FREQUENCY INSERTION LOSS REFERENCE |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.05 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| RF MAXIMUM VOLTAGE RATING | 300.0 VOLTS PEAK |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 4 |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 5 CONNECTOR, RECEPTACLE AND 1 ELECTRON TUBE BASE |

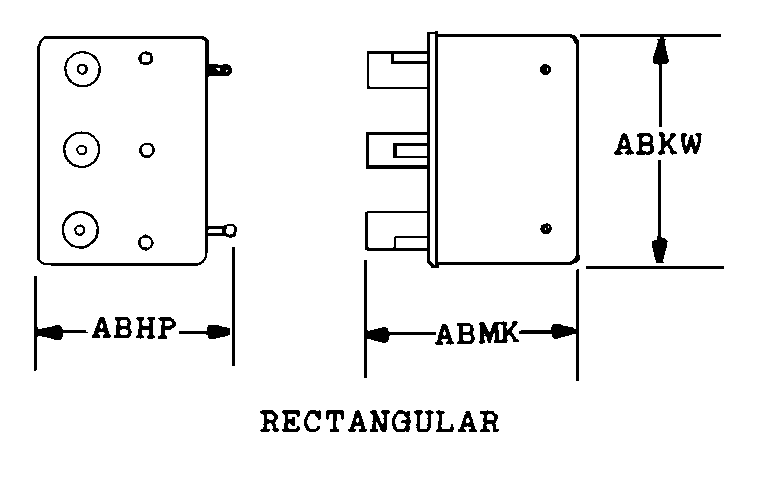

| BODY STYLE | 24B RECTANGULAR |
| OVERALL LENGTH | 3.125 INCHES NOMINAL |
| OVERALL HEIGHT | 1.920 INCHES NOMINAL |
| OVERALL WIDTH | 3.125 INCHES NOMINAL |
| MANUFACTURERS CODE | 13488 |
| DESIGN CONTROL REFERENCE | 42-28V |
