NSN 5985-00-166-9528 MA7531S018, MA7531-S018, 7531401800
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-166-9528 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: MA7531S018, MA7531-S018, 7531401800, 7531-4018-00, 13-51-05450, 3031102231, 303-11022-31, 411C23085, 411C-2308-5, 580R911H05, 5985-00-166-9528, 00-166-9528, 5985001669528, 135105450, 001669528
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 NOV 1971 | 00-166-9528 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

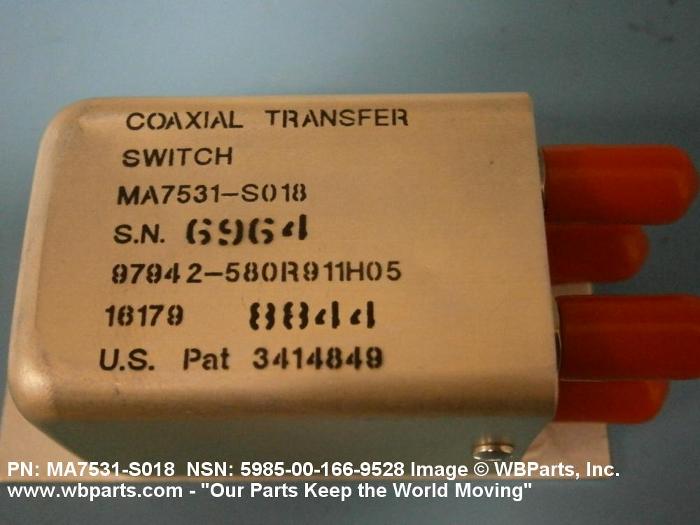

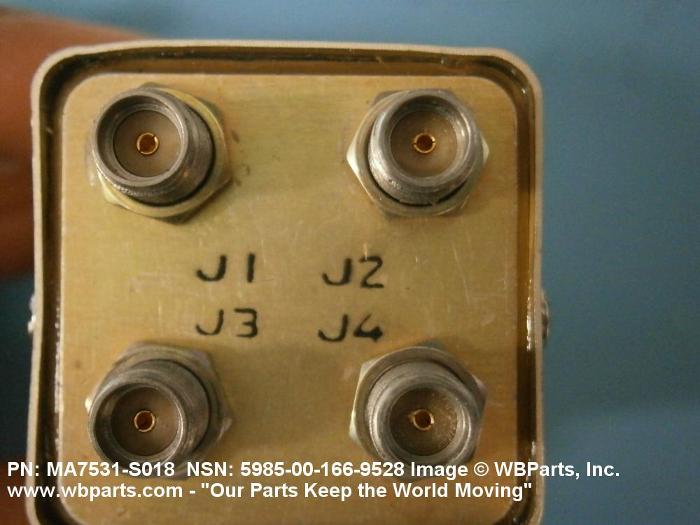

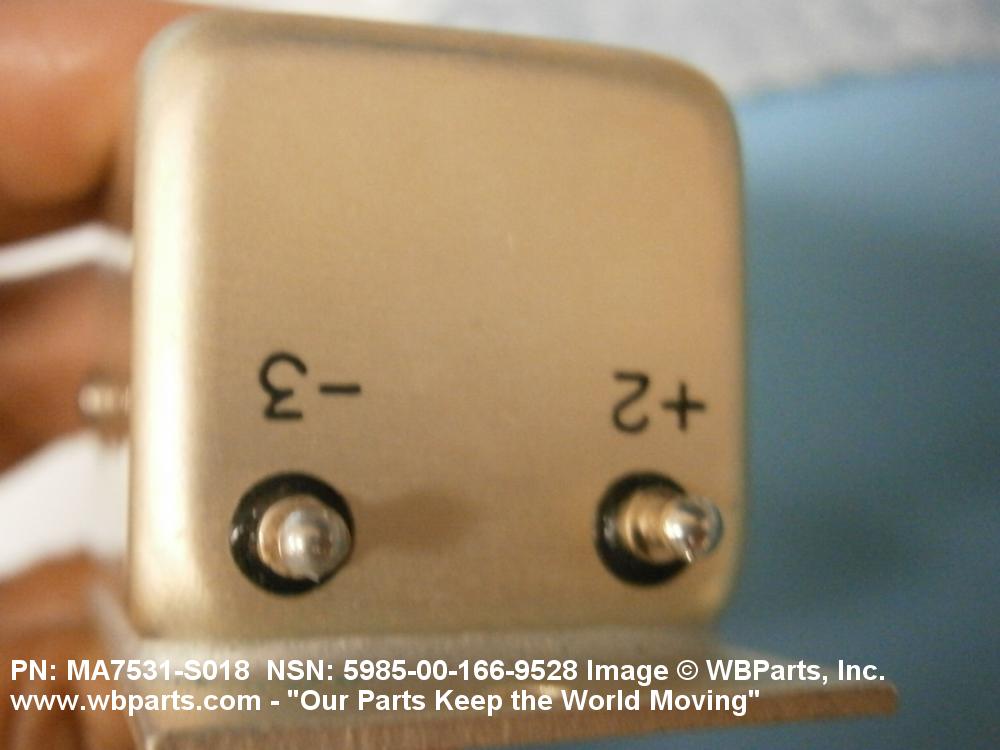

Drawings & Photos | NSN 5985-00-166-9528
Demand History | NSN 5985-00-166-9528
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 411C-2308-5 | 2022-03-60 | 12 | DIBBS |
| 580R911H05 | 2022-03-60 | 12 | DIBBS |
| 7531-4018-00 | 2022-03-60 | 12 | DIBBS |
| 411C-2308-5 | 2021-05-127 | 14 | DIBBS |
| 580R911H05 | 2021-05-127 | 14 | DIBBS |
| 7531-4018-00 | 2021-05-127 | 14 | DIBBS |
| 411C-2308-5 | 2021-04-116 | 14 | DIBBS |
| 580R911H05 | 2021-04-116 | 14 | DIBBS |
| 7531-4018-00 | 2021-04-116 | 14 | DIBBS |
| 5985-00-166-9528 | 2016-10-299 | 14 | DIBBS |
| 5985-00-166-9528 | 2016-03-73 | 14 | DIBBS |
| 5985-00-166-9528 | 2015-12-362 | 9 | DIBBS |
| 5985-00-166-9528 | 2015-12-350 | 9 | DIBBS |
| 5985-00-166-9528 | 2012-08-223 | 23 | DIBBS |
| 580R911H05 | 2012-02-60 | 1 | Thailand |
| 5985-00-166-9528 | 2009-04-104 | 6 | DIBBS |
| 5985-00-166-9528 | 2009-01-15 | 5 | DIBBS |
| 5985-00-166-9528 | 2008-08-218 | 6 | DIBBS |
Cross Reference | NSN 5985-00-166-9528
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13-51-05450 | 25693 | MEGGITT SAFETY SYSTEMS, INC. |
| 303-11022-31 | 62165 | ARROWSMITH SHELBURNE INC |
| 411C-2308-5 | 00471 | DOW-KEY MICROWAVE CORPORATION |
| 580R911H05 | 00471 | DOW-KEY MICROWAVE CORPORATION |
| 580R911H05 | 18323 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ELECTRONIC SYSTEMS |
| 580R911H05 | 50140 | K&L MICROWAVE, INC. |
| 580R911H05 | 82152 | L-3 COMMUNICATIONS CORPORATION DBA DATRON ADVANCED TECHNOLOGIES |
| 580R911H05 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 7531-4018-00 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
| MA7531-S018 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-166-9528
Related Products | NSN 5985-00-166-9528
Technical Data | NSN 5985-00-166-9528
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 2.0 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING 2.0 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY RF POWER HANDLING 2.0 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY VOLTAGE STANDING WAVE RATIO 2.0 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY INSERTION LOSS REFERENCE 2.0 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY CROSSTALK REFERENCE |
| RF POWER HANDLING CAPABILITY | 500.0 WATTS PEAK SINGLE |
| VOLTAGE STANDING WAVE RATIO | 1.50 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.50 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 60.0 SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.2 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 MAXIMUM |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 2 TURRET AND 4 PLUG, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCHING TIME | 50.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| BODY STYLE | 27B RECTANGULAR |
| OVERALL LENGTH | 2.770 INCHES NOMINAL |
| OVERALL HEIGHT | 1.270 INCHES NOMINAL |
| OVERALL WIDTH | 1.270 INCHES NOMINAL |
| MATERIAL | STEEL BODY |
| SURFACE TREATMENT | ANODIZE BODY OUTSIDE SURFACES |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.149 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE SINGLE MOUNTING FACILITY PATTERN |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.430 INCHES NOMINAL SINGLE MOUNTING FACILITY PATTERN |
| III OPERATING TEMP RANGE | -30.0 TO 110.0 DEG CELSIUS |
Restrictions/Controls & Freight Information | NSN 5985-00-166-9528
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-166-9528
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EW | TG:AIRBORNE ELECTRONIC WARFARE EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
