NSN 5985-00-224-5229 SAH2180HL, 00-224-5229, 002245229
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-224-5229 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: SAH2180HL, 5985-00-224-5229, 00-224-5229, 5985002245229, 002245229
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16-MAR-70 | 00-224-5229 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

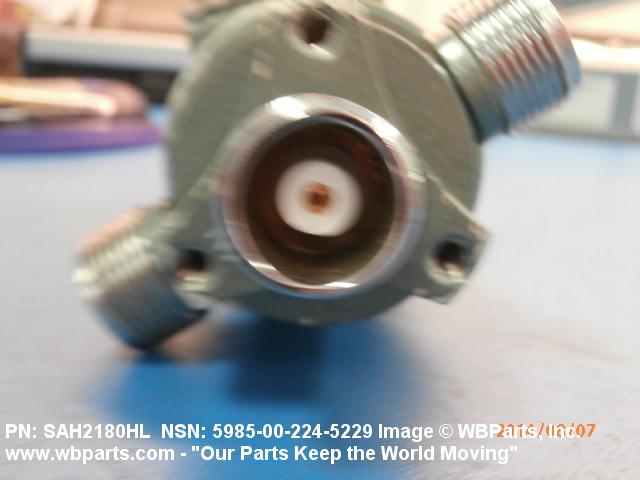

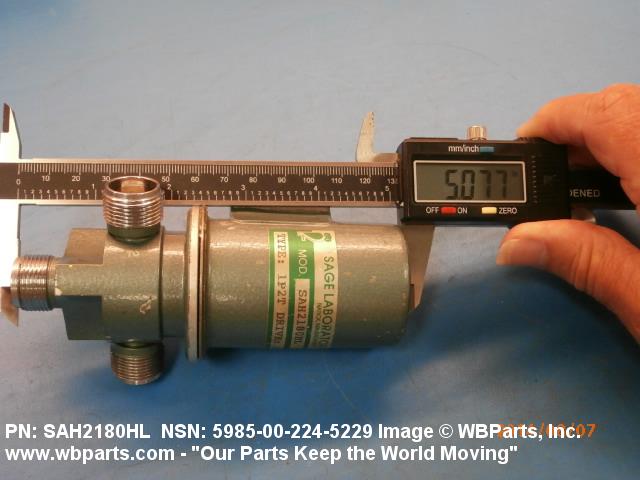

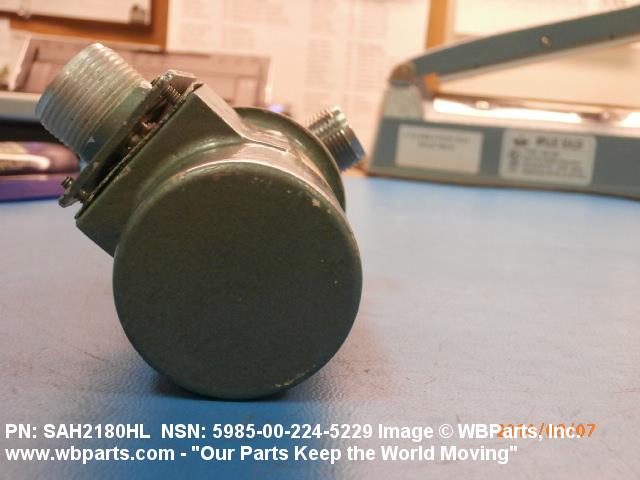

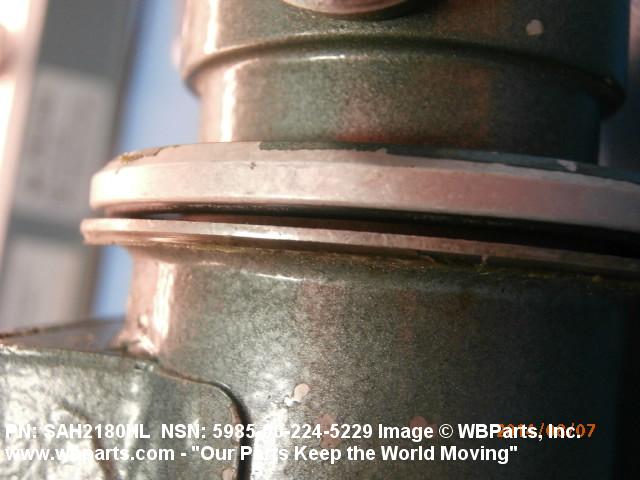

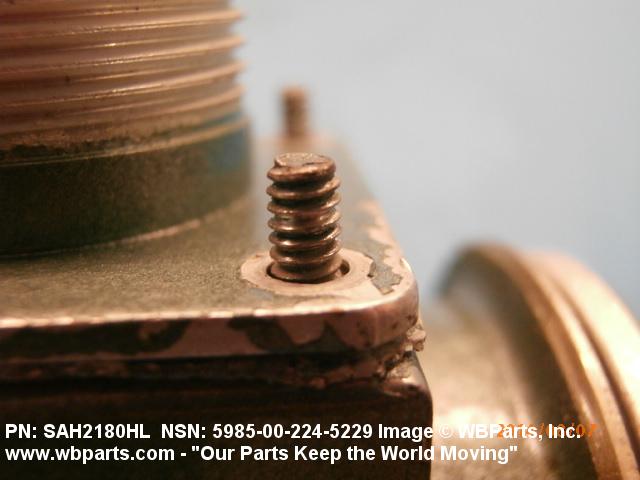

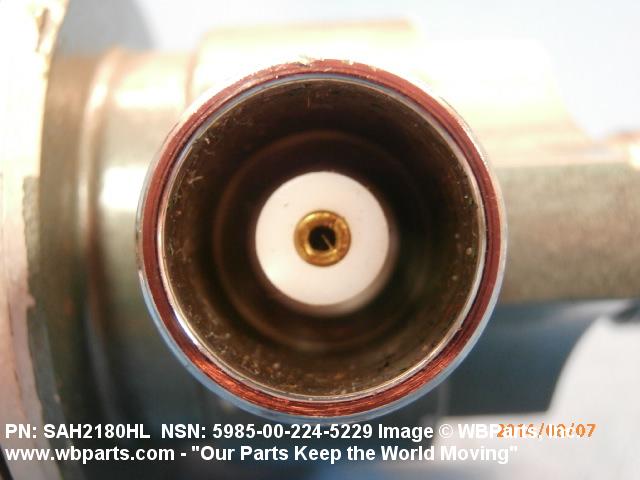

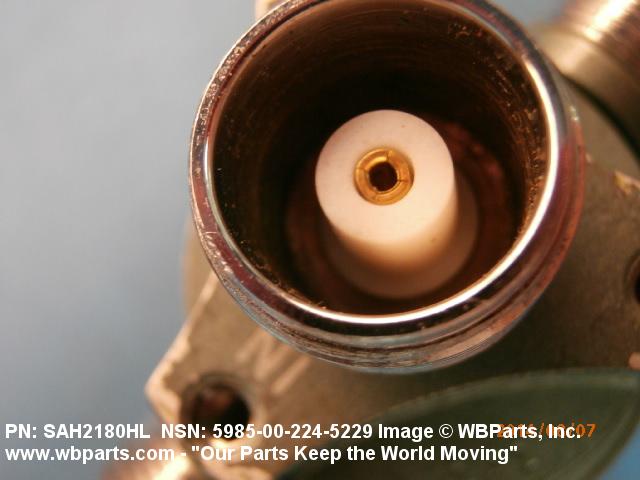

Drawings & Photos | NSN 5985-00-224-5229
Demand History | NSN 5985-00-224-5229
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-224-5229 | 2015-10-301 | 1 | United States |
| 5985-00-224-5229 | 2014-08-216 | 1 | United States |
| 5985-00-224-5229 | 2014-07-199 | 2 | US |
| 5985-00-224-5229 | 2014-06-155 | 1 | DIBBS |
| 5985-00-224-5229 | 2014-04-96 | 7 | DIBBS |
| 5985-00-224-5229 | 2013-11-323 | 2 | DIBBS |
| 5985-00-224-5229 | 2013-11-308 | 2 | DIBBS |
| 5985-00-224-5229 | 2013-10-294 | 1 | DIBBS |
| 5985-00-224-5229 | 2013-10-279 | 1 | DIBBS |
| SAH2180HL | 2009-08-230 | 6 | US |
| 5985-00-224-5229 | 2008-12-365 | 1 | US |
Cross Reference | NSN 5985-00-224-5229
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SAH2180HL | 07180 | SPECTRUM MICROWAVE, INC. DIV SPECTRUM MICROWAVE, NASHUA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-224-5229
Technical Data | NSN 5985-00-224-5229
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 GIGAHERTZ MINIMUM AND 12.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING 0.0 GIGAHERTZ MINIMUM AND 12.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY RF POWER HANDLING 0.0 GIGAHERTZ MINIMUM AND 12.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY VOLTAGE STANDING WAVE RATIO 0.0 GIGAHERTZ MINIMUM AND 12.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY INSERTION LOSS REFERENCE 0.0 GIGAHERTZ MINIMUM AND 12.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY CROSSTALK REFERENCE |
| RF POWER HANDLING CAPABILITY | 400.0 WATTS AVERAGE SINGLE |
| VOLTAGE STANDING WAVE RATIO | 1.50 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.50 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 50.0 SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.4 AC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 105.0 NOMINAL AND 125.0 NOMINAL |
| SWITCH TYPE | TRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 1 PLUG, COAXIAL AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE AND MALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 60.0 MILLISECONDS |
| OVERALL LENGTH | 5.087 INCHES NOMINAL |
| MATERIAL | STEEL BODY |
| TEST DATA DOCUMENT | 07180-SAH-2180HL DRAWING |
| III OPERATING TEMP RANGE | -60.0 TO 100.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINALS SILVER |
Restrictions/Controls & Freight Information | NSN 5985-00-224-5229
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
