NSN 5985-00-373-3368 SA-325/U, SA325U, 14604
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-373-3368 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: SA-325/U, SA325U, 14604, 1460-4, 14604RF, 1460-4RF, 52A3A103, 612894, 5985-00-373-3368, 00-373-3368, 5985003733368, 003733368
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-373-3368 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

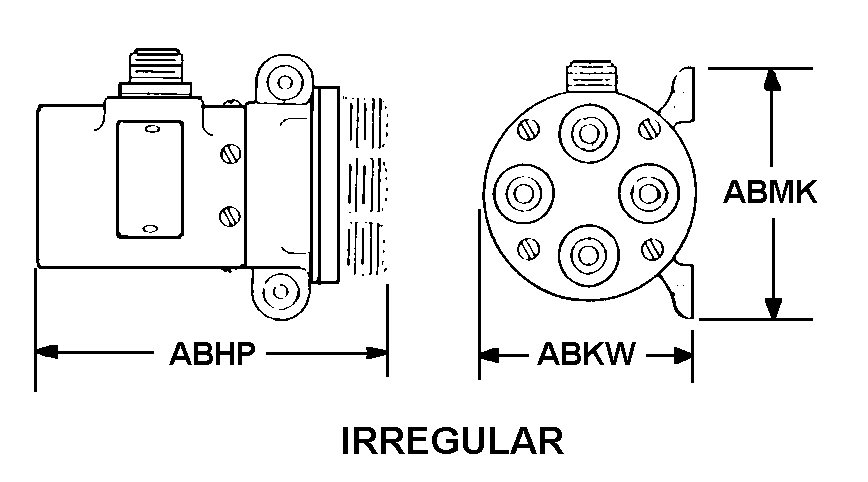

Drawings & Photos | NSN 5985-00-373-3368
Cross Reference | NSN 5985-00-373-3368
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1460-4 | 50140 | K&L MICROWAVE, INC. |
| 1460-4 | 82152 | L-3 COMMUNICATIONS CORPORATION DBA DATRON ADVANCED TECHNOLOGIES |
| 1460-4RF | 50140 | K&L MICROWAVE, INC. |
| 1460-4RF | 82152 | L-3 COMMUNICATIONS CORPORATION DBA DATRON ADVANCED TECHNOLOGIES |
| 52A3A103 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 612894 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| SA-325/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
