Product Details | VARIABLE ATTENUATOR
5985-00-601-6288 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: AC90036931, AC9003-69-31, AC900369310, AC9003-69-31-0, G3003041, G300304-1, 5985-00-601-6288, 00-601-6288, 5985006016288, 006016288
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 JAN 1975 | 00-601-6288 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-00-601-6288
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5985-00-601-6288
5985-00-602-2088, 5985-00-602-2089, 5985-00-602-4012, 5985-00-602-8767, 5985-00-602-9632
Technical Data | NSN 5985-00-601-6288
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 4.000 GIGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 50.0 INPUT-OUTPUT |
| VOLTAGE STANDING WAVE RATIO | 1.25 |
| POWER RATING | 2.0 WATTS AVERAGE AND 200.0 WATTS PEAK |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 0.5 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 69.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | -0.30 TO 1.30 |
| SEGMENT ATTENUATION RANGE IN DECIBELS | 1.00 TO 9.00 AND 10.00 TO 19.00 AND 20.00 TO 29.00 AND 30.00 TO 39.00 AND 40.00 TO 49.00 AND 50.00 TO 59.00 AND 60.00 TO 69.00 |
| SEGMENT ATTENUATION ACCURACY IN DECIBELS | -0.30 TO 0.30 AND -0.70 TO 0.70 AND -0.90 TO 0.90 AND -1.00 TO 1.00 AND -1.10 TO 1.10 AND -1.20 TO 1.20 AND -1.30 TO 1.30 |
| ATTENUATION VARIATION METHOD | STEPPED |
| STEP POSITION QUANTITY | 7 |
| ATTENUATION PER STEP IN DECIBELS | 10.0 |

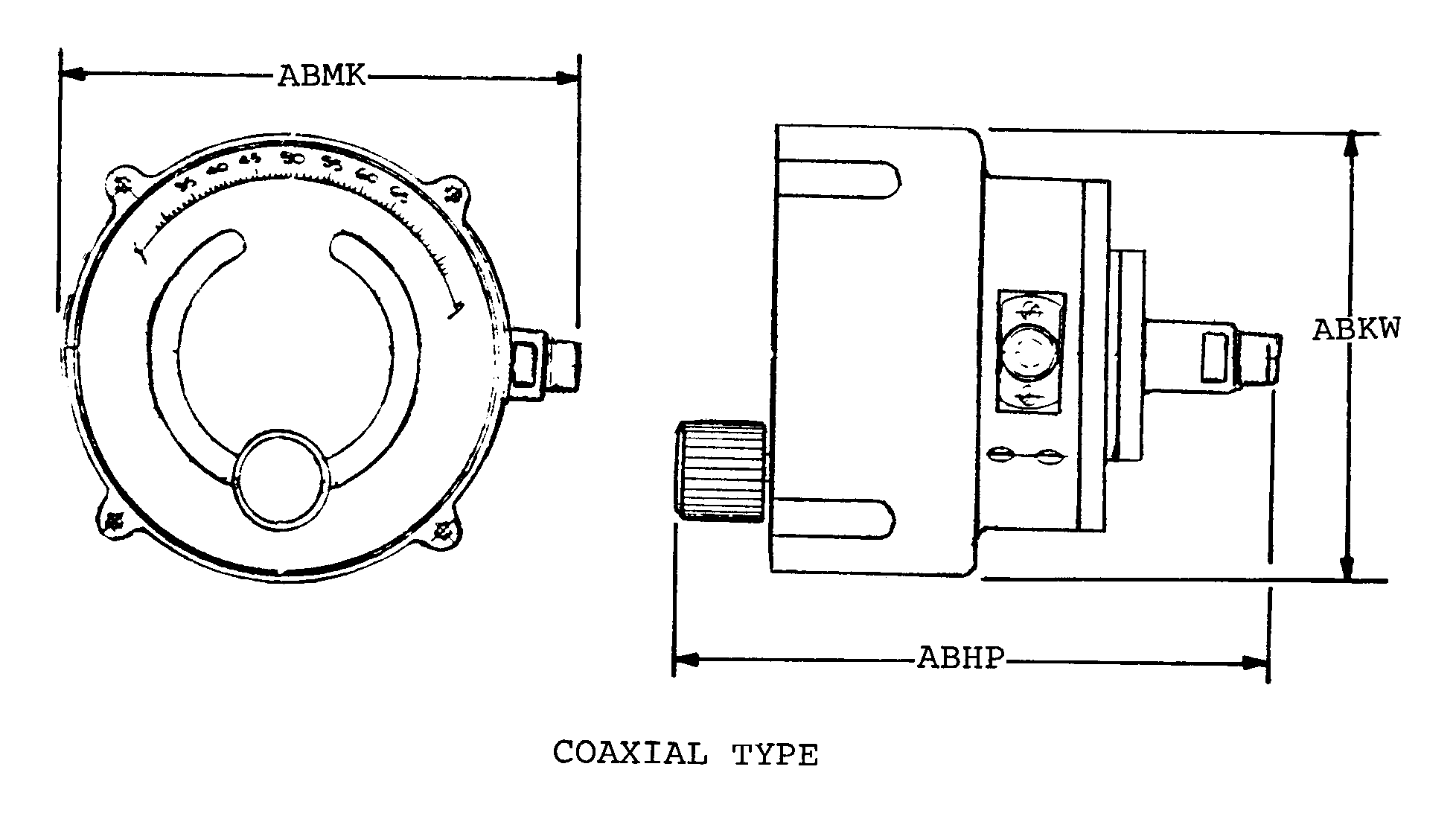

| BODY STYLE | 19A COAXIAL TYPE |
| OVERALL LENGTH | 5.400 INCHES NOMINAL |
| OVERALL HEIGHT | 1.630 INCHES NOMINAL |
| OVERALL WIDTH | 2.390 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 2 KNOB |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, COAXIAL, FEMALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BUSHING |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNEF |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.375 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| III SCALE LINEARITY | LINEAR |
| III SCALE DIVISION QUANTITY | 10 |
| III OPERATING TEMP RANGE | 0.0 TO 54.0 DEG CELSIUS |
Restrictions/Controls & Freight Information | NSN 5985-00-601-6288
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-601-6288
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
