NSN 5985-00-699-8095 CR24120VAC, CR24-120VAC, G2434311
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-699-8095 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: CR24120VAC, CR24-120VAC, G2434311, G243431-1, 3160101028, 316-010102-8, 5985-00-699-8095, 00-699-8095, 5985006998095, 006998095
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-699-8095 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-00-699-8095
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-699-8095
Related Products | NSN 5985-00-699-8095
Technical Data | NSN 5985-00-699-8095
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 GIGAHERTZ MINIMUM AND 4.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING 0.0 GIGAHERTZ MINIMUM AND 4.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY RF POWER HANDLING 0.0 GIGAHERTZ MINIMUM AND 4.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY VOLTAGE STANDING WAVE RATIO 0.0 GIGAHERTZ MINIMUM AND 4.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY INSERTION LOSS REFERENCE 0.0 GIGAHERTZ MINIMUM AND 4.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY CROSSTALK REFERENCE |
| RF POWER HANDLING CAPABILITY | 3.0 KILOWATTS PEAK SINGLE |
| VOLTAGE STANDING WAVE RATIO | 1.40 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.20 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 75.0 SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR VOLTAGE IN VOLTS | 115.0 NOMINAL |
| RF MAXIMUM VOLTAGE RATING | 1.0 KILOVOLTS RMS |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCHING TIME | 15.0 MILLISECONDS |

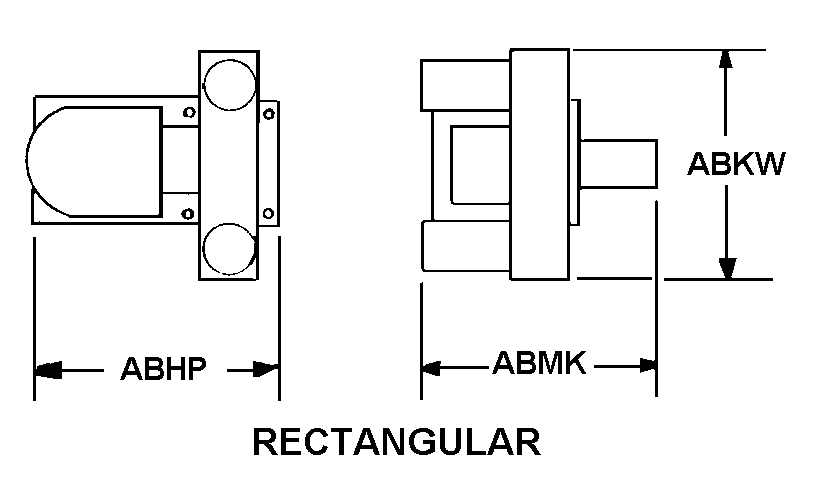

| BODY STYLE | 21B RECTANGULAR |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.813 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY BODY |
| SURFACE TREATMENT | SILVER BODY OUTSIDE SURFACES |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY PATTERN |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.875 INCHES NOMINAL SINGLE MOUNTING FACILITY PATTERN |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.687 INCHES NOMINAL SINGLE MOUNTING FACILITY PATTERN |
| THREAD SERIES DESIGNATOR | UNC MOUNTING FACILITY HOLE |
| NOMINAL THREAD SIZE | 0.112 INCHES MOUNTING FACILITY HOLE |
| THREAD CLASS | 2B MOUNTING FACILITY HOLE |
| III OPERATING TEMP RANGE | -55.0 TO 85.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | BODY SILVER |
Restrictions/Controls & Freight Information | NSN 5985-00-699-8095
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-699-8095
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 4 | PROVISIONING ITEMS (Exclusive of Insurance Items). This code will identify new items introduced through the provisioning process for system stock which would normally be categorized as either nonreparable or reparable but for which sufficient experience has been obtained to manage on the basis of normal demand forecasts. |
| Specific Group/Generic Code | T | Other Electronics Equipment |
| Weapons Systems/End Item or Homogeneous Group | TE | Tool Kits |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
