NSN 5985-00-730-6151 CS 1040, CS1040, DS1040
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-730-6151 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: CS 1040, CS1040, DS1040, 30011431, 300-11431, 3220114310, 322-011431-0, 32211431, 322-11431, 5985-00-730-6151, 00-730-6151, 5985007306151, 007306151
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-730-6151 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-00-730-6151
Demand History | NSN 5985-00-730-6151
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-730-6151 | 2007-11-313 | 5 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-730-6151
Related Products | NSN 5985-00-730-6151
Technical Data | NSN 5985-00-730-6151
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 MEGAHERTZ MINIMUM AND 500.0 MEGAHERTZ MAXIMUM 1ST FREQUENCY INSERTION LOSS REFERENCE 0.5 GIGAHERTZ MINIMUM AND 3.0 GIGAHERTZ MAXIMUM 2ND FREQUENCY INSERTION LOSS REFERENCE 0.0 GIGAHERTZ MINIMUM AND 3.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY RF POWER HANDLING |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 4 |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 5 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |

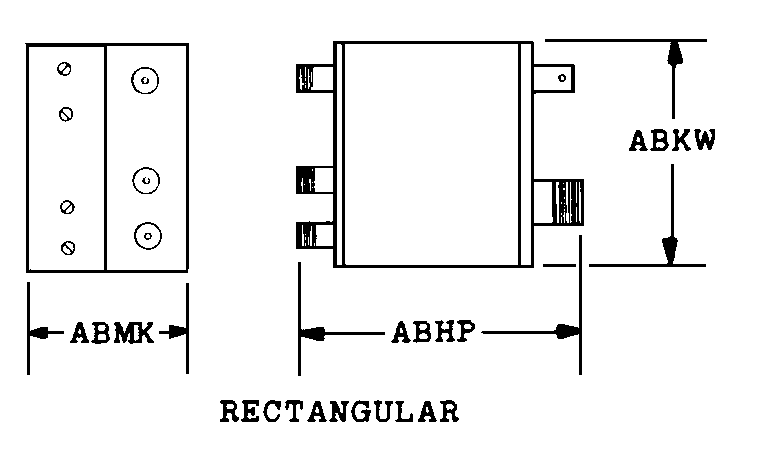

| BODY STYLE | 41B RECTANGULAR |
| OVERALL LENGTH | 2.219 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| III OPERATING TEMP RANGE | -65.0 TO 85.0 DEG CELSIUS |
